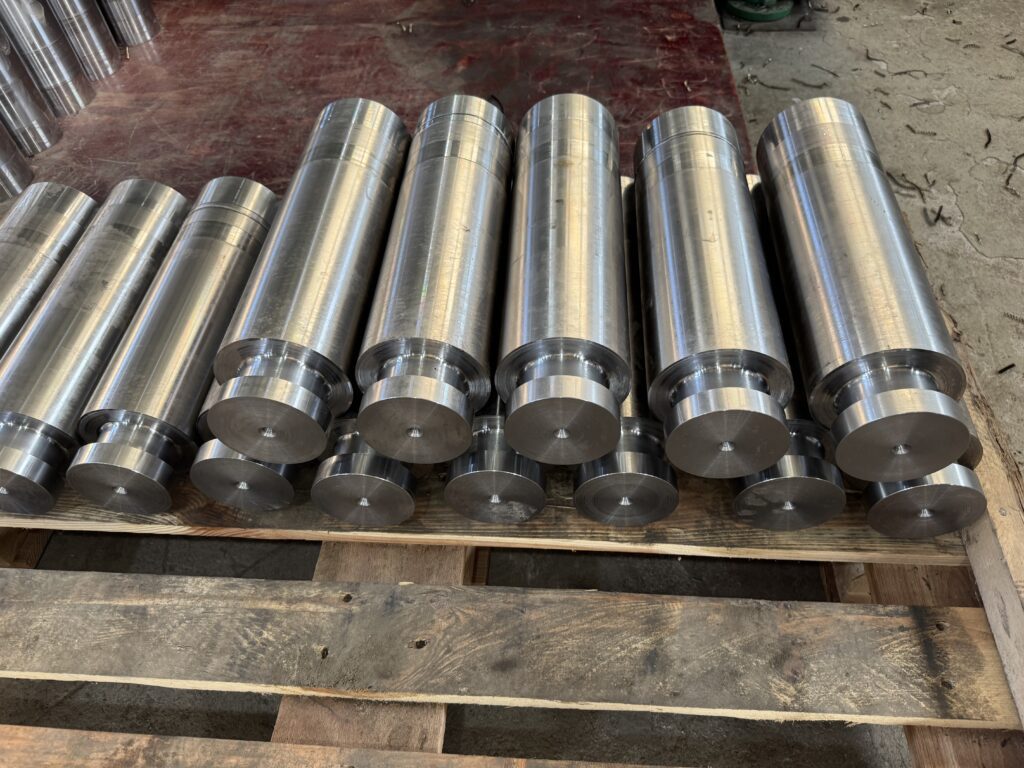

Royal Way® High-Performance Well Service Pmp Plungers

1. Product Overview

Royal Way® High-Performance Plungers are engineered for the most demanding fracturing, cementing, and acidizing applications in the oil and gas industry. Utilizing advanced thermal spray coatings and precision grinding technologies, our plungers offer exceptional wear resistance, superior corrosion protection, and optimal sealing compatibility under extreme high-pressure environments containing heavy concentrations of proppants (sand/silica).

All Royal Way® plungers are manufactured to meet or exceed OEM specifications, ensuring 100% field interchangeability with industry-leading pump manufacturers.

2. Key Features & Technical Advantages

• Flame Spray Coating & Ultra-High Hardness (60+ HRC):

  Surface treated with premium Nickel-based (Ni-Cr-B-Si) or Tungsten Carbide (WC) alloys using advanced flame/HVOF spray processes. This achieves a microscopic, dense protective layer that prevents premature scratching and erosion from sand-laden frac fluids.

• Superb Bond Strength:

  The high-quality metallurgical/mechanical bond ensures that the coating will not flake, spall, or crack even under continuous heavy impact loads, significantly extending both plunger and packing life.

• Excellent Corrosion & Acid Resistance:

  Engineered specifically for harsh environments, including acid wash, chemical injection, and sour gas ($H_2S$) applications. The base material and coating combinations prevent hydrogen embrittlement and pitting corrosion.

• Optimized Surface Finish for Sealing Longevity:

  Super-finished to a mirror-like smoothness (Ra 0.15 – 0.25 $\mu m$). This minimizes friction coefficient, dramatically reduces heat generation, and prevents the premature burning or tearing of well service packings.

• Total Integration Solution:

  Designed to work flawlessly with Royal Way®’s flagship Kevlar/Aramid Fabric Reinforced HNBR/FKM Well Service Packing sets for a “zero-leakage” dynamic sealing system.

  3. Technical Specifications

  3. Technical Specifications

  Parameter	Specifications & Standards
  Base Material	Premium High-Strength Alloy Steel (e.g., AISI 4140, 4340, 8620)
  Coating Material	Nickel-Chrome Alloy / Tungsten Carbide (WC)
  Surface Hardness	60+ HRC
  Surface Finish (Roughness)	Ra 0.15 – 0.25 $\mu m$ ($6 – 10$ micro-inches)
  Max Working Pressure	15,000+ PSI (depending on fluid end configuration and packing choice)
  Operating Temperature	-20℉ to 300℉ (-29℃ to 149℃) [Up to 450℉ with specialized elastomers]
  Quality Compliance	Manufactured under ISO 9001 and API guidelines

  4. OEM Interchangeability & Size Guide

  Royal Way® plungers are direct replacements for major global oilfield pump models. Custom sizes are available upon request based on your drawings or samples.

  • SPM Style: TWS 600, TWS 2250, QWS 2500, TWS 2500

  • FMC Style: W11, M12, L16, OPI 1800

  • Gardner Denver Style: GD 2500, TEE, PE-5, Triplex/Quintuphex pumps

  • Halliburton Style: HT-400

  • Weir / Nov / Servant Style: Matching popular crosshead and fluid end sizes.

• 5. Complete Fluid End Sealing Kits (Cross-Selling)

  To maximize pump runtime and decrease maintenance intervals, Royal Way® recommends purchasing plungers alongside our premium fluid end seals:

  • Well Service Packing (WSP): Consisting of pressure rings, header rings, and top adapters made from Kevlar-reinforced HNBR/FKM to withstand high-velocity abrasive slurry.

  • D-Rings & O-Rings: High durometer (90 Shore A) AED (Anti-Explosive Decompression) compounds.

  6. Packaging & Shipping Protection

  • Anti-Rust Treatment: Coated with premium industrial rust-preventative oil prior to packing.

  • Surface Protection: Wrapped in heavy-duty bubble wrap and industrial plastic sleeves to eliminate metal-to-metal contact.

  • Outer Packing: Securely packed into custom-built, reinforced plywood boxes or heavy cartons to prevent damage during international sea and air freight.
