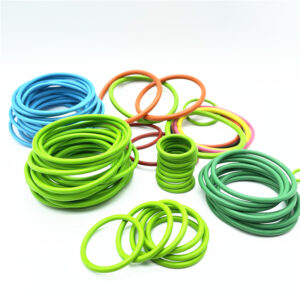

Viton® GF High-Performance O-Rings for Methanol and Steam Resistance

Modern Enhanced Oil Recovery (EOR) and chemical injection processes utilize aggressive fluids that destroy standard rubber seals. Our Viton® GF High-Performance O-Rings are engineered using a Peroxide-Cured, High-Fluorine (~70%) chemistry. Unlike standard bisphenol-cured FKM, the GF series provides exceptional resistance to Methanol, Ethanol, Steam, and Sour Crude. It bridges the performance gap between standard FKM and expensive FFKM (Perfluoroelastomer), offering a cost-effective solution for critical fluid handling.

Technical Specifications

  • Pressure Rating: 5,000+ PSI (With Backup Rings)
  • Temperature Range: -10°F to +400°F (-23°C to +204°C)
  • Material: FKM (Viton®)

Applications

  • Downhole Tools, Used in MWD/LWD tools, packers, and bridge plugs where temperatures exceed 300°F and chemical resistance to drilling muds is required.
  • Chemical Injection, Seals for pumps and valves injecting corrosion inhibitors, methanol, or biocides (Requires Viton® GF).
  • Subsea Equipment, Christmas trees, manifolds, and risers requiring long service life and cold resistance (Requires Viton® GLT).
  • Gas Processing & Transmission, Compressors, dehydration units, and gas valves handling high-pressure gas, requiring RGD/AED resistance.
  • Refineries, Mechanical seals, flange gaskets, and heat exchanger gaskets handling hot crude oil, fuels, and hydrocarbon solvents.
  • Wellhead Control, Hydraulic control panels and actuator seals.

Viton® GF High-Performance O-Rings for Methanol and Steam Resistance

Executive Summary

In the downstream sector of the Oil & Gas industry, thermal stability and chemical inertness are paramount. Our High-Temp FKM (Fluoroelastomer) O-Rings are the industry standard for sealing applications where NBR and other general-purpose elastomers fail due to excessive heat or chemical attack. Based on a robust Type-A Dipolymer architecture (approximately 66% fluorine content), these seals provide a critical barrier against aggressive hydrocarbons, mineral acids, and elevated temperatures found in refineries and petrochemical plants. They offer the optimal balance of performance and cost-efficiency for non-amine environments.

Technical Deep Dive: Peroxide Cured vs. Bisphenol Cured

1. The Methanol Challenge

Standard FKM (Type A) swells uncontrollably when exposed to alcohols like Methanol, which is commonly used as a hydrate inhibitor in pipelines.

  • The GF Solution: By increasing the fluorine content to 70% and utilizing a peroxide cure system, Viton® GF minimizes volume swell, maintaining dimension stability in pure methanol and methanol/water blends.

2. Steam & Acid Resistance

The peroxide cross-linking structure of Viton® GF offers superior hydrolytic stability. It resists steam and hot water degradation better than any other FKM type. Additionally, it provides enhanced resistance to:

  • Mineral Acids: Sulfuric, Nitric, and Hydrochloric acid.

  • Modern Fuel Blends: Biodiesel and Ethanol-blended fuels (E85).

Detailed Specifications

Technical Property Specification Test Standard
Material Family FKM Type F (High Fluorine) ASTM D1418
Cure System Peroxide Cured –
Durometer 75 Shore A or 90 Shore A ASTM D2240
Temperature Range -10°F to +400°F (-23°C to +204°C) Continuous
Chemical Resistance Excellent (Methanol, Steam, Acids) –
Standard Compliance ASTM D2000 HK –

Oil & Gas Applications

Chemical Injection Systems

  • Injection Pumps: Sealing plungers and check valves handling pure Methanol or Corrosion Inhibitors.

  • Metering Valves: Precision seals ensuring accurate dosage of well chemicals.

Upstream Production

  • Sour Crude Handling: Improved resistance to oxidized sour crude compared to standard FKM.

  • Steam Assisted Gravity Drainage (SAGD): Seals for thermal recovery equipment where steam is injected into the reservoir.

Comparative Analysis: GF vs. Standard FKM

  • Cost vs. Performance: Viton® GF costs more than standard Viton® Type A but significantly less than FFKM (Kalrez®).

  • Decision Matrix:

    • If fluid is standard oil/fuel → Use Standard FKM.

    • If fluid contains Methanol, Steam, or strong acids → Use Viton® GF.

    • If fluid is Ketones or extremely high temp (>500°F) → Use FFKM.
