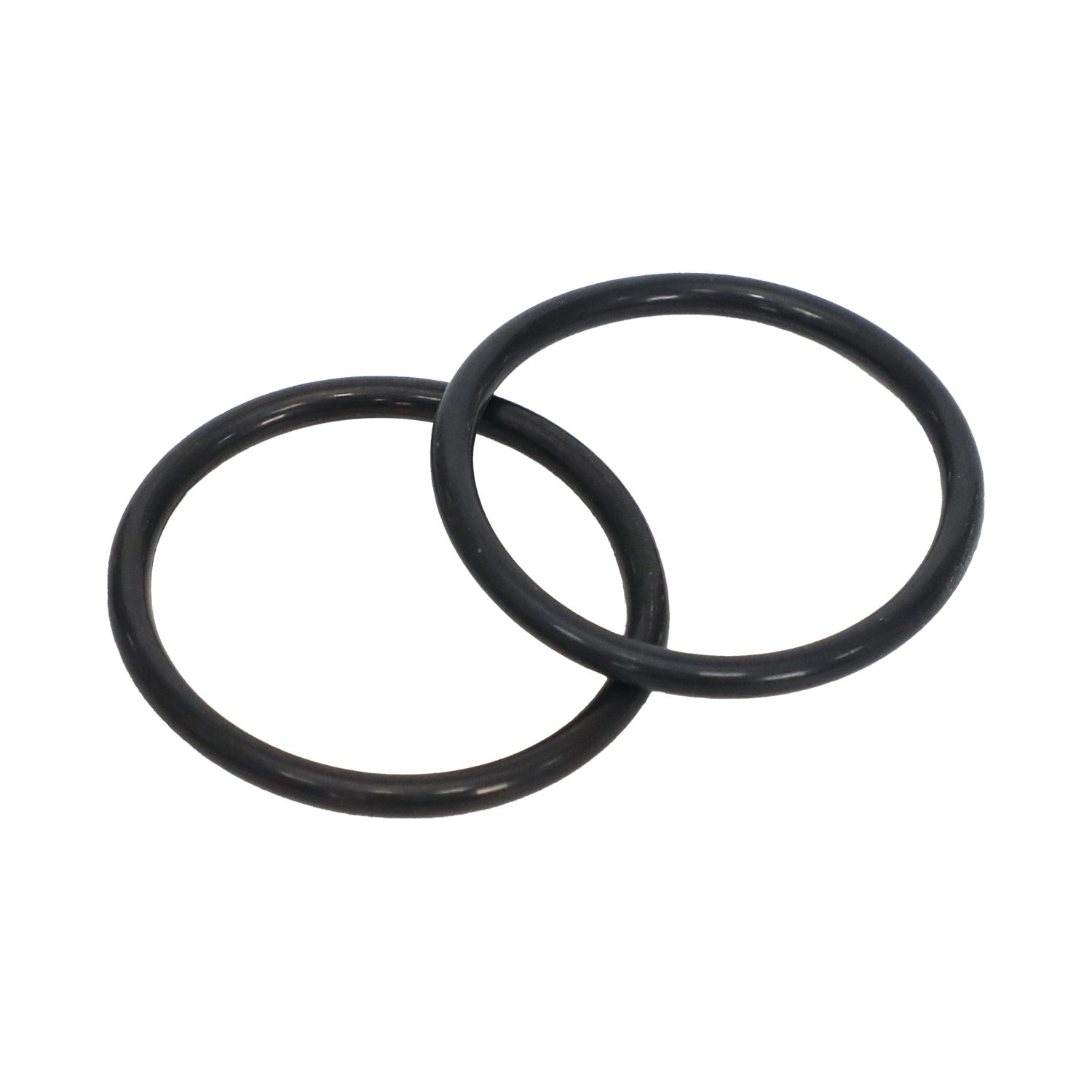

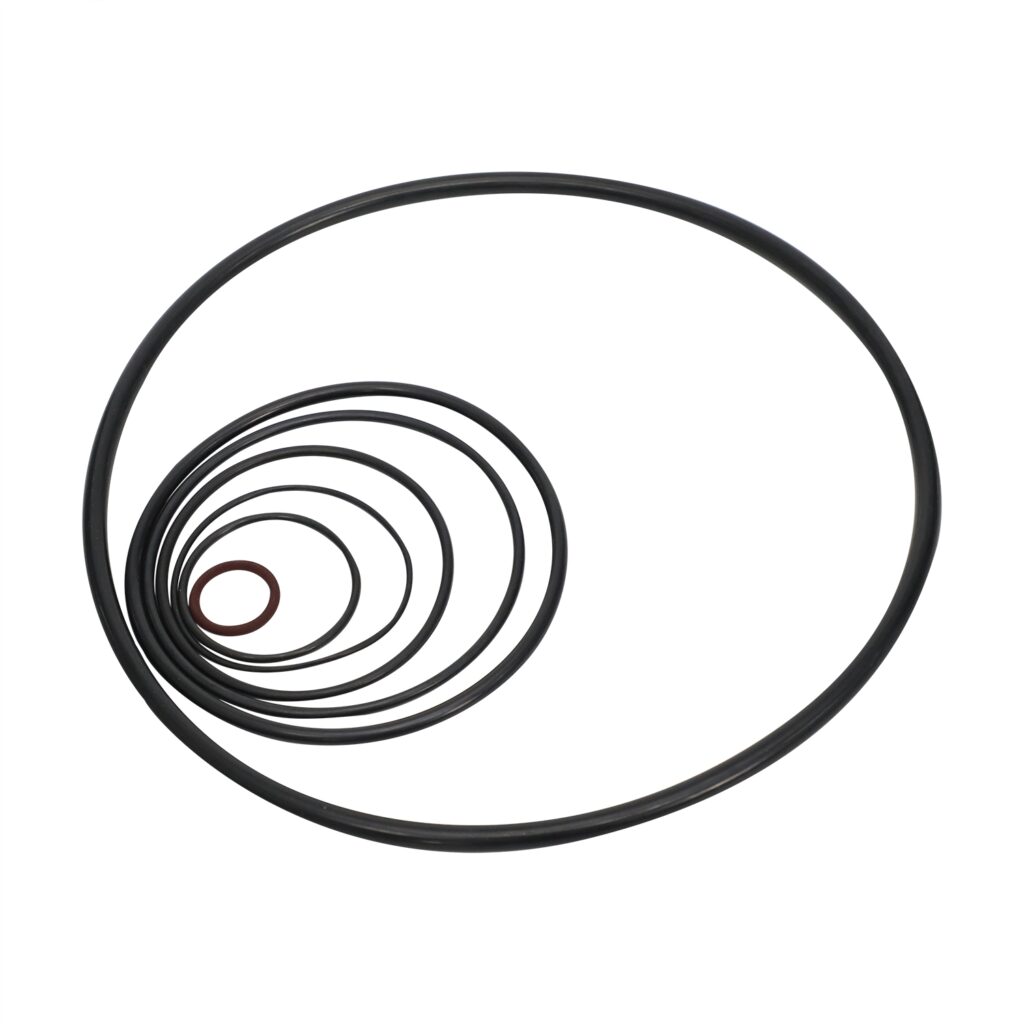

Ultra-High Temperature FFKM O-Rings (600°F+) for Extreme Environments

For the most punishing thermal environments in the Oil & Gas sector, standard elastomers simply disintegrate. Our Ultra-High Temperature FFKM (Perfluoroelastomer) O-Rings are engineered to survive where FKM and HNBR fail. Capable of continuous operation at 600°F (316°C) with peak excursions to 620°F (327°C), these seals provide the ultimate thermal stability for High-Temperature High-Pressure (HTHP) wells, steam injection, and heavy oil thermal recovery. They represent the highest tier of sealing technology, ensuring equipment integrity when “failure is not an option.”

Technical Specifications

  • Pressure Rating: 5,000 to 20,000+ PSI.PSI (With Backup Rings)
  • Temperature Range: +10°F to +600°F (-10°C to +316°C)
  • Material: FFKM

Applications

  • HTHP Downhole Tools: Used in Logging While Drilling (LWD) and Measurement While Drilling (MWD) tools where temperatures exceed 200°C (392°F).
  • Amine Sweetening Units: Seals in pumps and valves handling highly corrosive amine solutions used to remove H2S from natural gas (Standard FKM fails here).
  • Steam Injection / SAGD: Packers and artificial lift systems in heavy oil recovery requiring 300°C+ steam resistance.
  • Sour Gas Valves: Critical isolation valves handling high concentrations of H2S and CO2.
  • Mechanical Seals: Secondary seals in high-value pumps processing mixed chemical streams in refineries.
  • Instrumentation: Sensors and flowmeters exposed to aggressive process fluids where measurement accuracy depends on seal integrity.

Technical Deep Dive: Surviving the Heat

1. Beyond the Limits of FKM

Standard FKM (Viton®) degrades rapidly above 400°F, becoming hard and brittle (calcification). Our Ultra-High Temp FFKM maintains its elastomeric mechanical properties—elasticity and recovery—at temperatures that would melt or char other rubbers.

  • The Chemistry: Utilizing a proprietary cross-linking architecture, the carbon-fluorine backbone is virtually indestructible by heat, preventing oxidative degradation.

2. Superior Compression Set at 600°F

The killer of seals in high heat is “Compression Set” (permanent flattening).

  • Performance: Even after hundreds of hours at 600°F, our FFKM retains significant sealing force (low compression set), ensuring that when the system cools down and heats up again (thermal cycling), the seal does not leak.

Detailed Specifications

Technical Property Specification Test Standard
Material Family Perfluoroelastomer (FFKM) ASTM D1418
Temperature Range +10°F to +600°F (-10°C to +316°C) Continuous
Short Term Peak +620°F (+327°C) –
Hardness 75, 80, or 90 Shore A ASTM D2240
Color Black (Standard), White (High Purity) –
Chemical Resistance Near-Universal (similar to PTFE) –

Target Applications: Thermal Recovery & HTHP

Steam Assisted Gravity Drainage (SAGD)

  • Steam Injection: Seals for downhole packers and steam injection valves where superheated steam is constant.

  • Artificial Lift: Seals for electric submersible pumps (ESP) operating in hot heavy oil reservoirs.

Downhole Tools (HTHP)

  • Wireline & Logging Tools: Protecting sensitive electronics in ultra-deep wells where bottom-hole temperatures (BHT) exceed 500°F.

  • Drilling Motors: Dynamic seals for mud motors in deep geothermal or HTHP drilling.

FFKM Working Pressure Capabilities

Unlike metal components, the pressure rating of an FFKM elastomer seal is not a fixed number. It is a function of the Material Hardness, the Extrusion Gap (clearance between mating parts), and the Temperature.

1. Standard Pressure Ratings (Based on Hardness)

Assuming a standard industrial clearance gap (e.g., 0.003″ – 0.005″):

  • 75 Shore A (Standard FFKM):

    • Up to 1,500 PSI (100 Bar): Suitable for general low-pressure sealing without backup rings.

    • Risk: Above this pressure, softer FFKM will extrude into the clearance gap.

  • 90 Shore A (High-Pressure FFKM):

    • Up to 3,000 PSI (207 Bar): The standard for oil and gas applications. The higher modulus (stiffness) resists extrusion significantly better than 75 durometer.

2. High-Pressure Applications (With Backup Rings)

In High-Pressure High-Temperature (HPHT) downhole environments, backup rings are essential to extend the pressure range of FFKM.

  • With 1 Backup Ring (PTFE or PEEK): Rated up to 5,000 – 7,000 PSI.

  • With 2 Backup Rings (Sandwiched): Rated up to 15,000 – 20,000+ PSI.

    • Note: PEEK backup rings are recommended for temperatures >300°F (150°C) as PTFE may creep.

3. The “Temperature Derating” Factor (Critical for FFKM)

FFKM is purchased for heat resistance. However, as temperature rises, the elastomer softens and loses physical strength (tensile modulus).

  • Example: An FFKM O-ring rated for 3,000 PSI at room temperature may only be capable of holding 1,500 PSI at 500°F (260°C) if the clearance gap is not tightened.

  • Design Tip: For extreme heat (500°F+), always use 90 Durometer FFKM and Tight Tolerance machining to minimize gaps.

Summary Table

Material Hardness Max Pressure (No Backup) Max Pressure (With PEEK Backup) Typical Application
FFKM 75 Shore A ~ 1,500 PSI (100 Bar) ~ 5,000 PSI (345 Bar) Chemical Processing, Low Pressure Valves
FFKM 90 Shore A ~ 3,000 PSI (207 Bar) 20,000+ PSI (1,380 Bar) Downhole Tools, HTHP Drilling, Subsea Valves

FAQ

Q: How does this compare to Metal O-Rings?

A: Metal O-rings handle higher heat but cannot seal imperfect surfaces and have no elastic recovery. Our FFKM offers the resilience of rubber with heat resistance approaching soft metals.

Q: Is it compatible with Steam?

A: Yes. Unlike some standard FFKM grades which suffer in steam, our High-Temp formulation is resistant to steam and hot water at elevated pressures.
