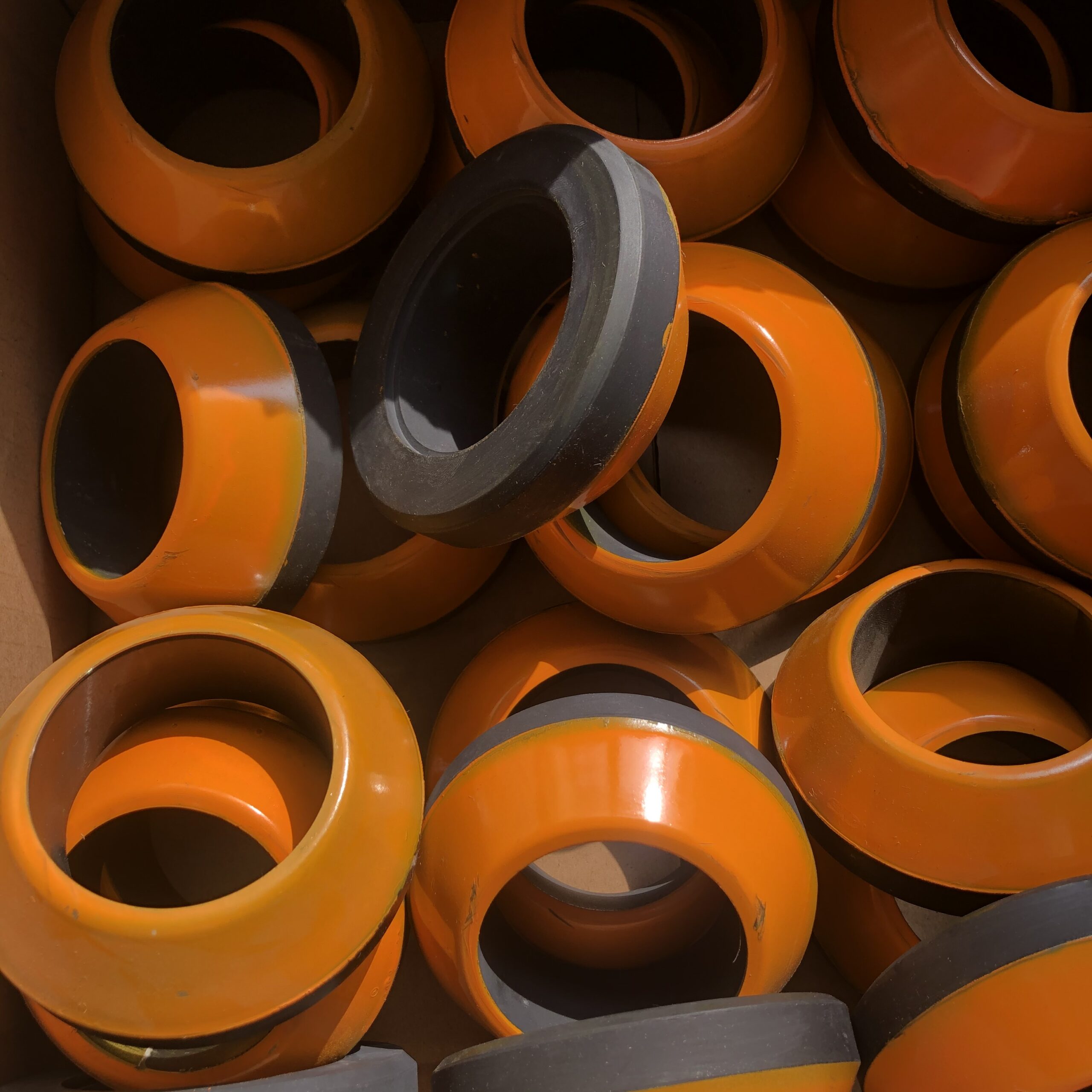

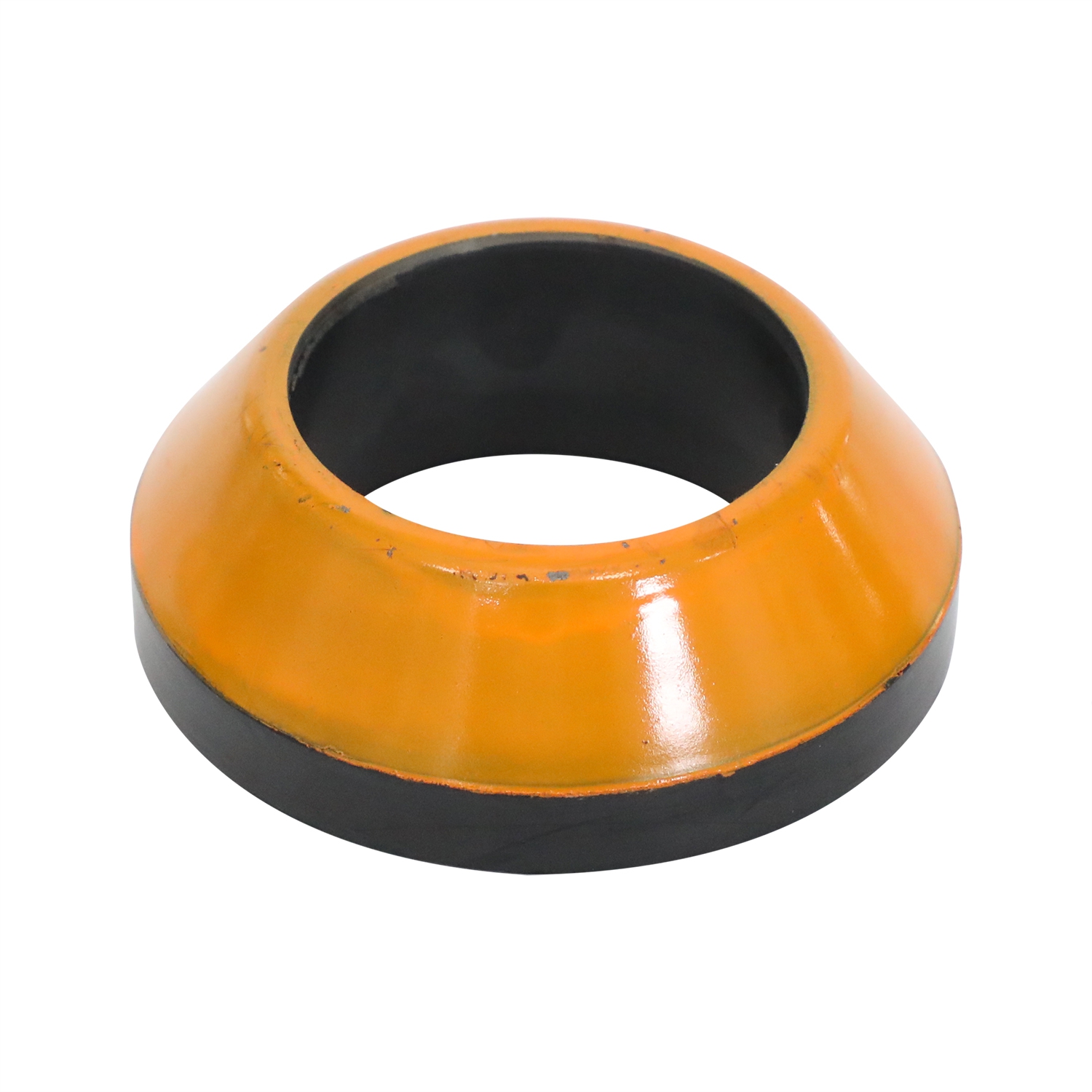

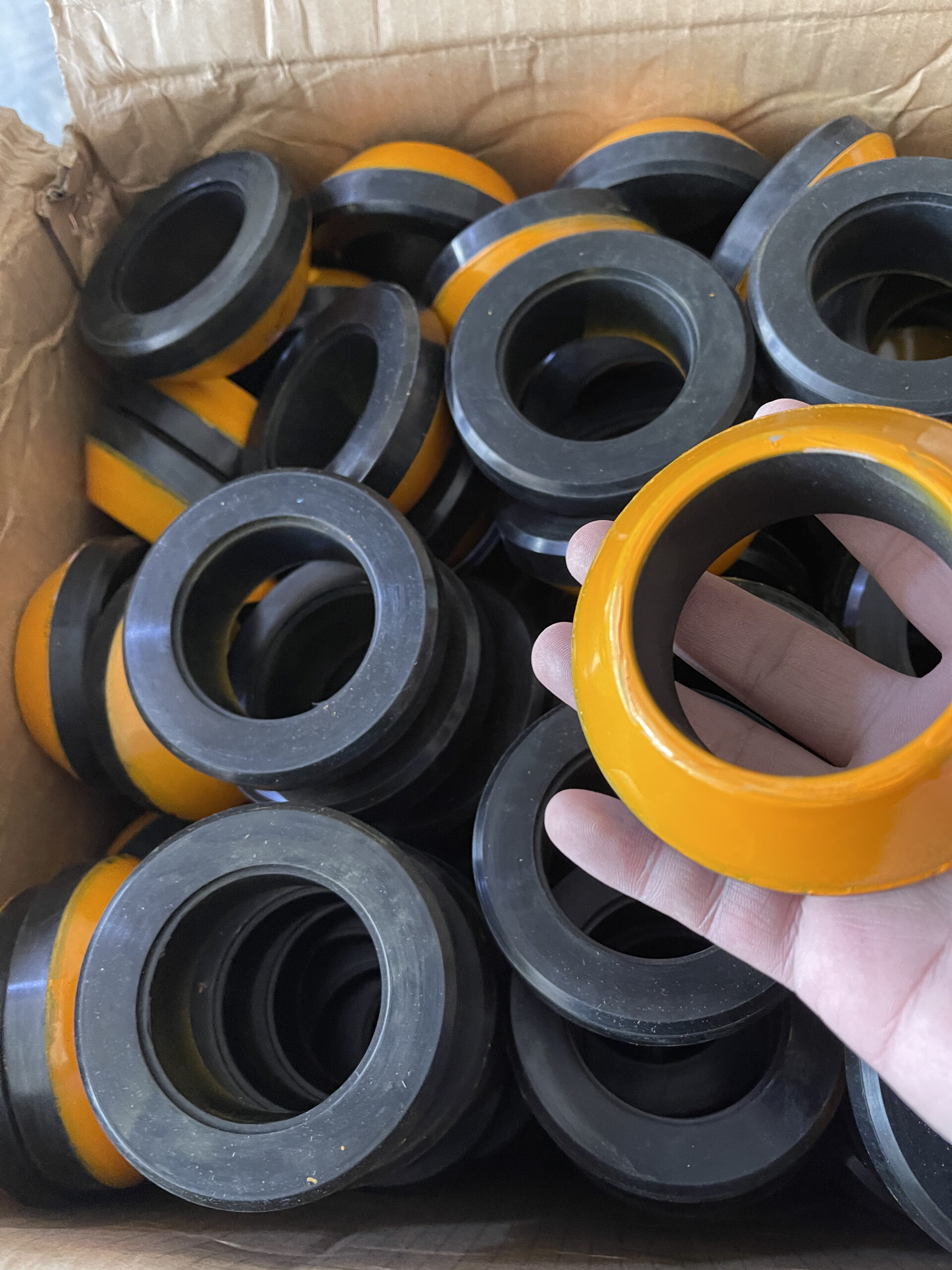

Steel Reinforced Packer Elements

In the downhole environment, the integrity of your zonal isolation depends entirely on the performance of the elastomer. Whether setting a retrievable packer for a frac job or a bridge plug for abandonment, the Packer Element is the single point of failure.

At Royal Way, we manufacture high-performance Packer Elements engineered to withstand the most hostile wellbore conditions. From standard 3-piece sets to complex mesh-backed unitized elements, our seals are formulated to provide a positive, leak-proof barrier against extreme differential pressures (up to 10,000+ PSI) and temperatures ranging from -20°F to 450°F.

Technical Specifications

  • Material Grade: Standard NBR (Nitrile) -20°F to +250°F
  • High-Temp HNBR -20°F to +325°F
  • FKM (Viton®) -15°F to +400°F
  • Aflas® (TFE/P) +32°F to +450°F
  • EPDM -40°F to +350°F Geothermal (No Oil)

Typical Applications

  • Retrievable Production Packers: Long-term zonal isolation.
  • Service Packers: Squeeze cementing, acidizing, and fracturing tools.
  • Bridge Plugs (RBP / CIBP): Temporary or permanent well abandonment.
  • Liner Hangers: Sealing the liner top.
  • Test Tools: DST (Drill Stem Test) tools requiring multiple set/unset cycles.

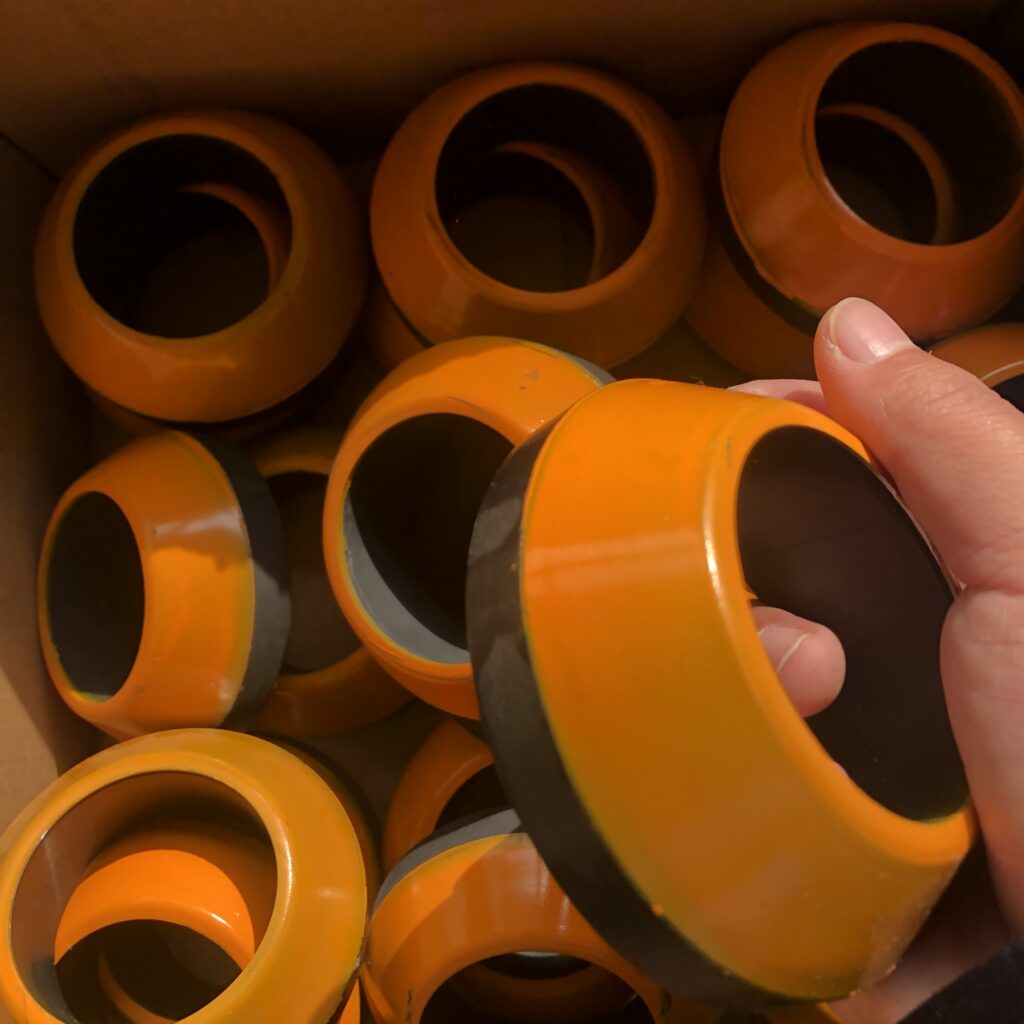

Product: Steel Reinforced Packer Elements

1. Executive Summary: The “Armored” Seal for Extreme Pressures

In ultra-high-pressure fracturing and deep production environments, standard elastomeric elements eventually fail due to Gap Extrusion. When differential pressures exceed 10,000 PSI, the rubber is forced into the microscopic clearance between the tool and the casing, leading to catastrophic seal loss.

Royal Way Steel Reinforced Packer Elements are the ultimate solution for these hostile conditions. By integrating Steel Wire Mesh, Metal Slats, or Interlocked Springs directly into the elastomer matrix, we create a composite seal that combines the flexibility of rubber with the structural strength of steel. These elements expand to form a “Zero-Gap” metal barrier against the casing wall, physically preventing the rubber seal from extruding, even under extreme pressure differentials and temperatures up to 450°F.

2. Reinforcement Technologies: Two Levels of Protection

We offer two distinct reinforcement styles tailored to your specific tool design and pressure rating:

Type A: Wire Mesh Backed Elements (Sintermesh Style)

  • Design: Multiple layers of knitted stainless steel wire mesh are molded into the corners (OD heels) of the element.

  • Mechanism: Upon setting, the wire mesh expands with the rubber. It acts as a dense, flexible filter that bridges the extrusion gap.

  • Best For: Retrievable Packers and Service Tools where flexibility and repeated setting are required. Good for pressures up to 10,000 PSI.[1]

Type B: Steel Slat / Insert Reinforced Elements

  • Design: Solid steel slats or overlapping metal plates are bonded chemically and mechanically to the elastomer core.

  • Mechanism: As the element compresses, the steel slats slide over each other and expand radially like an umbrella. They form a solid, continuous metal wall against the casing ID.

  • Best For: Permanent Packers, Bridge Plugs, and Cement Retainers. This design offers the absolute highest extrusion resistance, suitable for 15,000+ PSI and large casing gaps.

3. Technical Specifications

Technical Parameter Specification Notes
Elastomer Base NBR, HNBR, FKM (Viton®), or Aflas® Matched to well fluids
Reinforcement Material 304 / 316 Stainless Steel or Carbon Steel Corrosion resistant
Bond Type Chemically Bonded (Vulcanized) Steel will not separate from rubber
Expansion Range Standard to High Expansion Capable of passing through restrictions
Temperature Range -40°F to +450°F (-40°C to +232°C) Dependent on elastomer choice
Pressure Rating 10,000 to 15,000+ PSI With zero extrusion

4. Critical Applications

  • Thru-Tubing Work: Where a small OD tool must expand to seal a large ID casing (High Expansion), necessitating steel reinforcement to bridge the massive gap.

  • Permanent Production Packers: Long-term zonal isolation where rubber creep must be eliminated.

  • Cast Iron Bridge Plugs (CIBP): The steel inserts bite into the casing to assist the slips in holding the plug against pressure.

  • HPHT Completions: Deep gas wells where standard elements would blister or extrude.

5. Why Choose Royal Way Reinforced Elements?

  • Superior Bonding Technology: The biggest failure mode for reinforced elements is delamination (metal separating from rubber). Royal Way utilizes proprietary bonding agents and molding processes to ensure a cohesive bond that survives thermal shock and shear forces.

  • Custom Geometry: We can engineer custom slat angles and mesh densities to match your specific tool mandrel and setting force requirements.

  • Traceability: Full material certs provided for both the elastomer and the steel reinforcement components.

6. Ordering Information

  • Configuration: Available as Unitized (Single Piece) or Multi-Piece Sets.

  • Casing Sizes: 2-3/8″ through 13-3/8″.

  • Customization: Please provide your Tool OD, Casing ID, and Max Differential Pressure for a technical recommendation.
