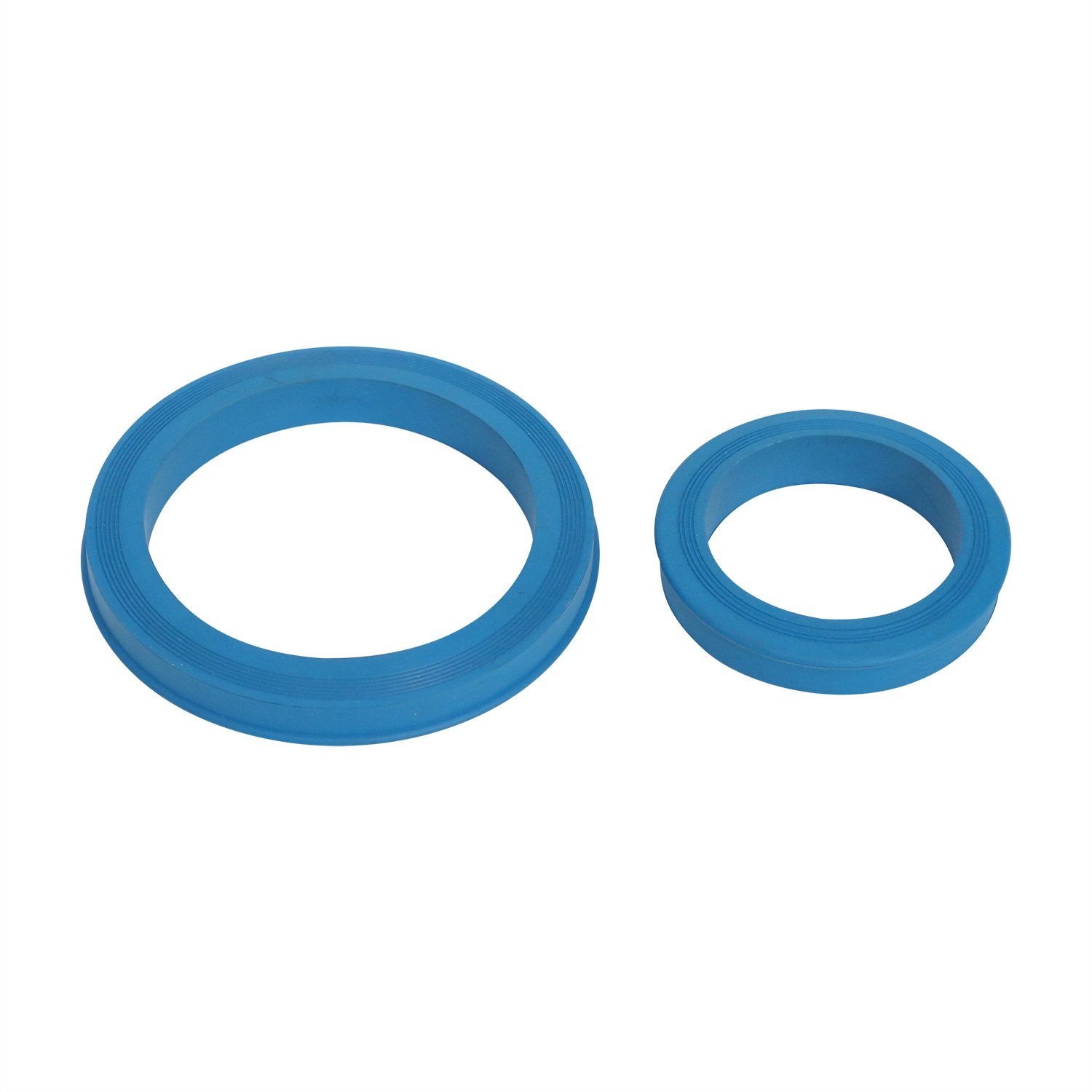

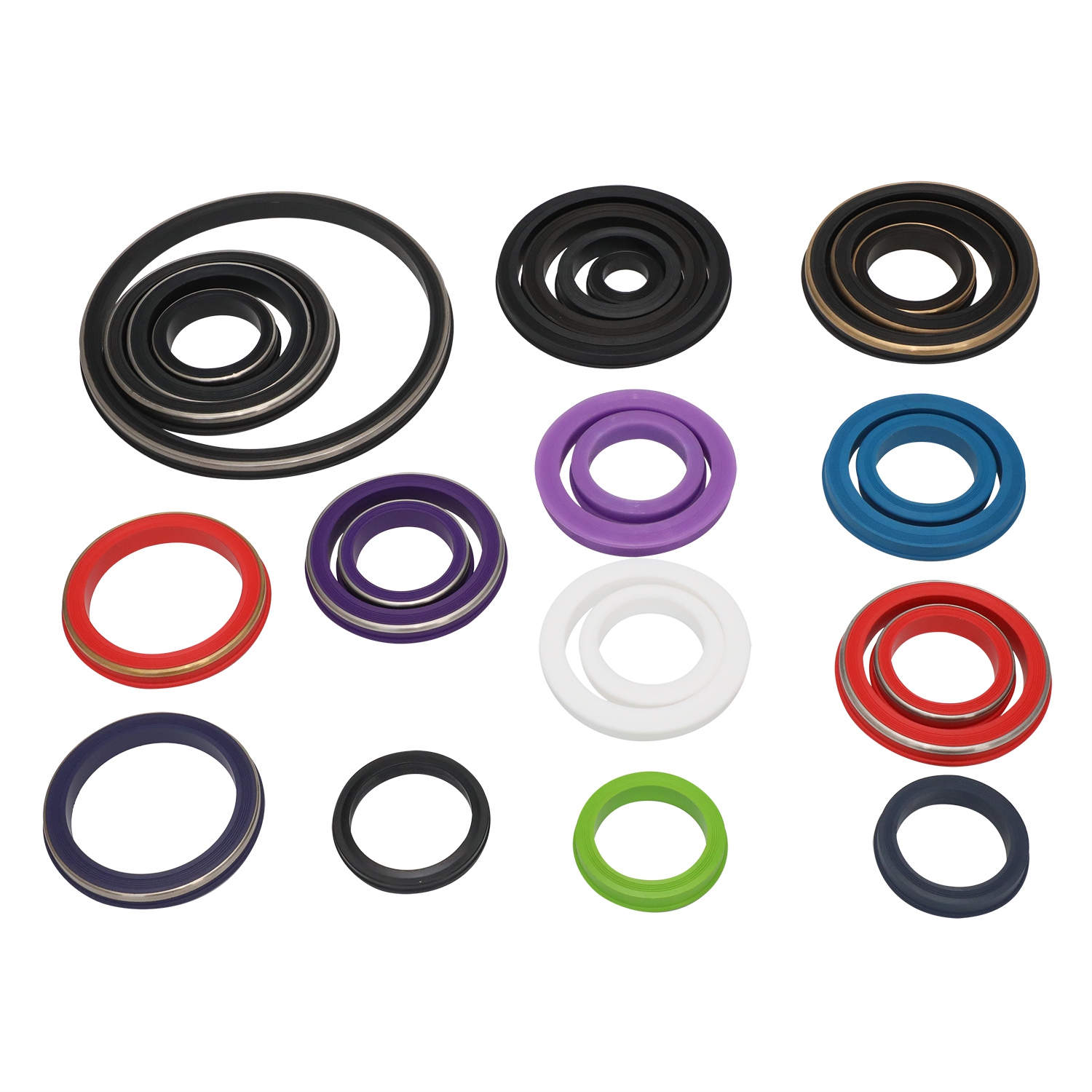

Hammer Union Seals for Fig 1502 Unions
Hammer union seals for selected FIG 1502 Weco-style union connections in flowline and pressure-control equipment. Material and anti-extrusion options are reviewed against the exact figure, size and service conditions.
Technical Specifications
- Configuration: Confirm the union figure, nominal size, seal profile and part reference for the selected requirement.
- Material: NBR, HNBR, FKM or another compound may be selected for the specified service conditions.
Applications
- Hydraulic Fracking: High-pressure sand and proppant injection lines.
- Flowback Operations: Managing post-frac fluids and gases.
- Choke & Kill Manifolds: Safety-critical well control connections.
- Mud Lines: Circulating drilling mud systems.
- Acidizing & Cementing: Handling abrasive cement slurries and acid fluids.
Hammer Union Seals for Fig 1502 Unions
Hammer Union Seals for Weco-style union connections used in oilfield flowline and pressure-control equipment. Material, figure, size, pressure, temperature and fluid compatibility are confirmed against the exact union and service conditions before quotation.
Configuration options
- Figure and size: Confirm the exact union figure, nominal size and part reference.
- Elastomer: NBR, HNBR, FKM or another compound may be selected for the specified service requirements.
- Backup ring: Brass or stainless-steel anti-extrusion options may be available for selected configurations.
Application review
Typical review areas include flowline connections, fracturing, cementing, flowback and other defined pressure-control applications. The correct seal depends on the union design, groove details, media and operating conditions.
Quality and quotation support
Send the union figure, size, part number or drawing together with pressure, temperature and media details. Inspection records and product documentation can be discussed for the selected configuration.
