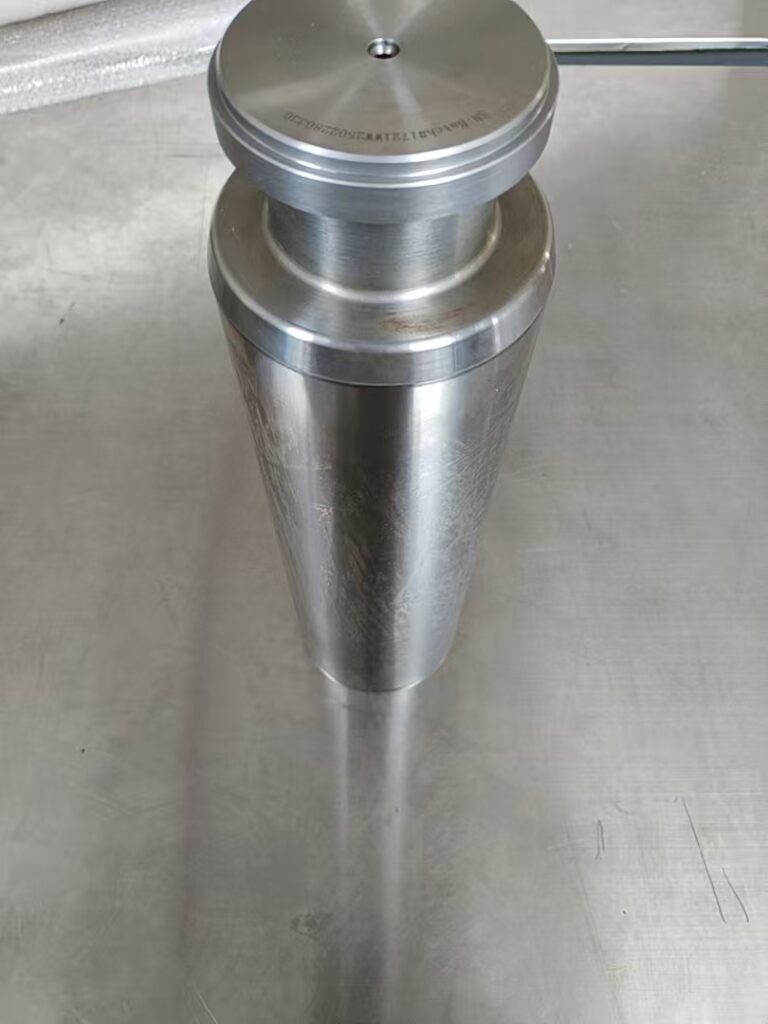

Replacement Plungers for SPM® QWS 2500 & 2700 Fluid Ends (4.5″)

1. Executive Summary: The Aftermarket Standard for QWS Pumps

The SPM® QWS 2500 and QWS 2700 are the undeniable workhorses of the modern hydraulic fracturing fleet. Keeping these high-horsepower pumps running requires consumables that can match their intensity.

Our 4.5″ Replacement Plungers are engineered specifically for the QWS 2500 and 2700 series fluid ends. Manufactured using a premium Flame Spray & Fuse process with Nickel-Based Alloy, these plungers offer a 100% Drop-In Fit guarantee. They deliver the same geometry, thread precision, and 60 HRC hardness as the OEM component, but at a price point and lead time that maximizes your fleet’s profitability.

2. Compatibility & Fitment Guide

This plunger is not a “universal” part; it is precision-machined to the exact schematics of the SPM® Destiny™ and QWS Series.

• Primary Fitment:

  • SPM® QWS 2500 (Quintuplex): The standard 2500 HP frac pump.

  • SPM® QWS 2700: The high-performance evolution.

  • SPM® QWS 2500 XL: Long-stroke configuration.

• Size Specification:

  • Plunger Diameter: 4.50 Inch (Standard Frac Size).

  • (Note: Also available in 4.00″ for high pressure and 5.00″ for high rate).

• Connection Type:

  • Standard Pony Rod Connection.

  • Thread pitch and concentricity machined to 0.0005″ tolerance to ensure perfect alignment with the crosshead and pony rod.

3. Technical Deep Dive: Engineered to Outlast

Standard chrome-plated plungers cannot survive the rod load and abrasion of a QWS 2500 pump running at full rate. Our plungers are built differently.

The “Fused” Advantage

We utilize a Thermal Spray and Fuse process.

1. Application: A Ni-Cr-B-Si (Nickel-Chrome-Boron-Silicon) alloy is sprayed onto the steel core.

2. Fusion: The plunger is heated to ~1,950°F. The coating melts and fuses into the steel substrate, creating a Metallurgical Bond.

3. Result: A coating that is non-porous and impervious to delamination. It will not chip or flake, even under the extreme vibration and shock loads of a 2700 HP pump.

Hardness & Finish

• 60 HRC Hardness: Hard enough to crush ceramic proppant particles without scratching.

• Ra < 4 Micro-inch Finish: We achieve a mirror-like finish that drastically reduces friction. This is critical for QWS pumps, which often run at high stroke rates, generating significant heat in the packing bore.

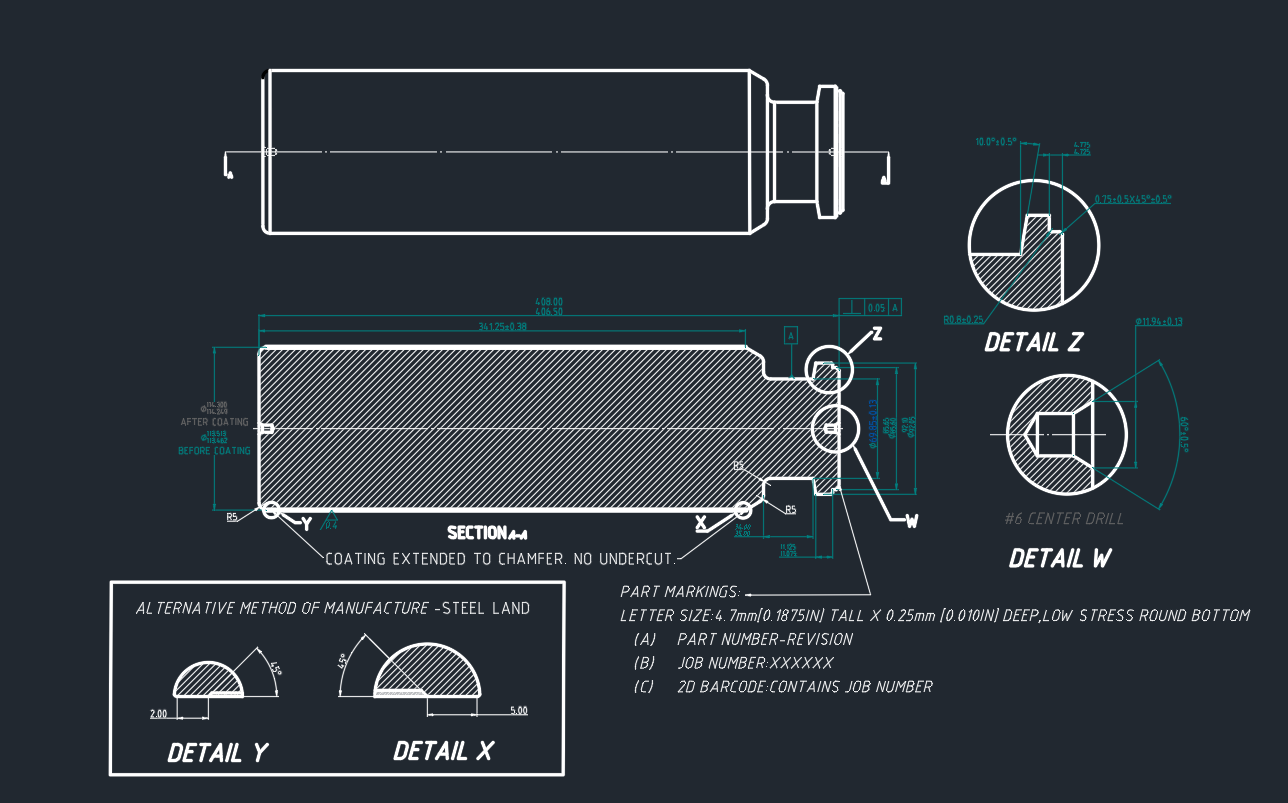

4. Detailed Specifications

5. Why Choose Our Aftermarket Plungers?

1. Inventory Availability

OEM supply chains can be slow. We stock finished 4.5″ QWS Plungers ready for immediate shipment to the Permian, Bakken, and Eagle Ford. When your pump goes down, we ship same-day.

2. Acidizing Ready

Many QWS pumps are used in mixed fleets. Our Nickel-Alloy coating is chemically inert to Hydrochloric Acid (HCl), meaning you don’t need to swap plungers when switching from Frac to Acid jobs.

3. Packing Protection

The number one cause of fluid end failure is packing wash-out. Our ultra-smooth finish minimizes drag on the packing rings (Header Ring & Pressure Rings), extending the service interval of your entire fluid end maintenance cycle.

6. Quality Assurance (QA)

Every single plunger is inspected before it leaves our facility:

• Dimensional Scan: Laser verification of the OD and Thread Profile to ensure it fits your SPM pony rods perfectly.

• Bond Integrity: Ultrasonic testing to verify zero coating separation.

• Hardness Map: Verified 60 HRC along the entire stroke length.

7. Ordering Information

• Part Number: [Insert Your P/N] (Replaces OEM P/N: [Insert OEM P/N if known, e.g., P100234])

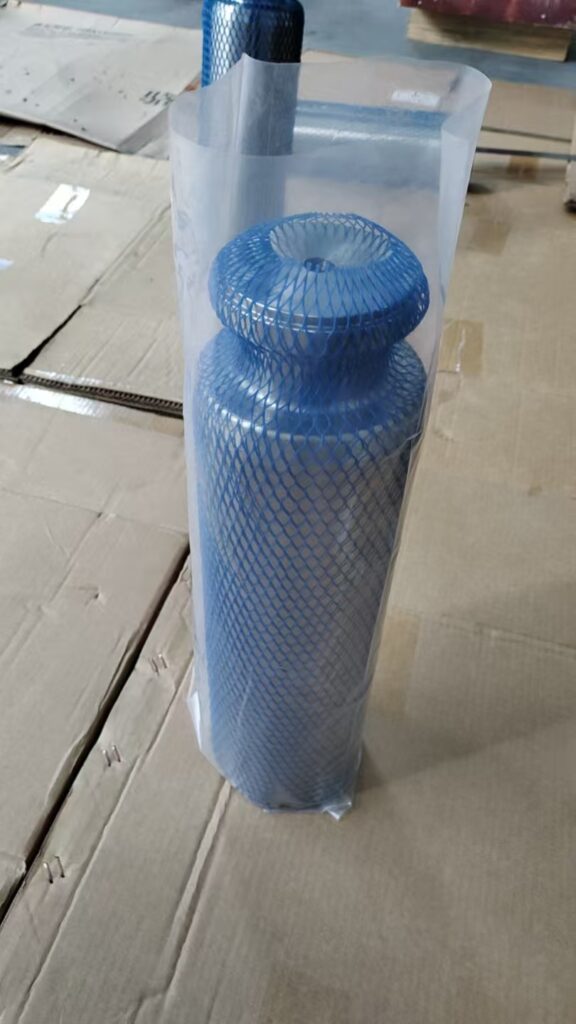

• Packaging: Individual protective tubes with VCI anti-corrosion wrap.

(Disclaimer: SPM®, Weir®, QWS™, and Destiny™ are trademarks of Weir Oil & Gas. We are an independent manufacturer of replacement parts and are not affiliated with Weir.)
