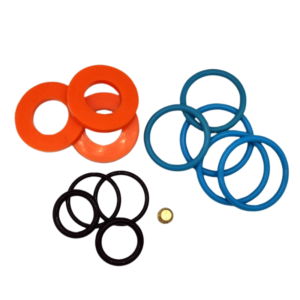

Product: Redress Kit for T-1 Style Setting Tool (Titan® Compatible)

1. Executive Summary: The Premier Alternative for Wireline Setting

While the Baker E-4 is common, many leading wireline operators prefer the robust simplicity of the T-1 Style Wireline Pressure Setting Assembly. Known for its durability and distinct piston design, the T-1 tool requires a seal kit specifically engineered for its unique dimensions.

Royal Way Redress Kits for T-1 Style Tools are the definitive aftermarket solution for maintaining these assemblies. Whether you are running genuine Titan® hardware or compatible Probex® style tools, our kits provide the high-performance seals, PTFE backups, and critical components needed to ensure a full stroke and a secure plug set, minimizing the risk of costly misruns.

2. Compatibility Guide: T-1 vs. E-4

⚠️ CRITICAL ID CHECK: The T-1 Setting Tool performs the same function as a Baker E-4, but the internal parts are NOT interchangeable.

• Tool Style: T-1 (Titan® Style).

• Visual ID: T-1 tools often feature a different manual bleed-off arrangement and distinct top sub geometry compared to Baker E-4 tools.

• Size: Available for Standard #10 (2-1/8″ OD) and #20 (3-1/2″ OD) equivalents.

• Fitment: Guaranteed drop-in fit for:

  • Titan® Setting Tools.

  • Probex® Style Tools.

  • Generic T-1 Clones.

3. Material Options: Tailored for the Wellbore

We offer two distinct material grades to match your specific downhole environment.

Option A: Standard Service (NBR / Nitrile)

• Color: Black.

• Rating: -20°F to +250°F.

• Application: Vertical wells, shallow laterals, and standard plug-and-perf operations.

• Performance: Our 90 Durometer NBR is formulated to resist abrasion from proppant during pump-down.

Option B: High-Temp / Sour Service (Viton® / FKM)

• Color: Black (Labeled) or Brown.

• Rating: -15°F to +400°F.

• Application: Deep HPHT wells or wells with potential H2S exposure.

• Why Upgrade? The T-1 tool generates intense heat during the power charge burn. Viton® ensures the seals don’t harden or crack, making post-job disassembly and cleaning significantly easier.

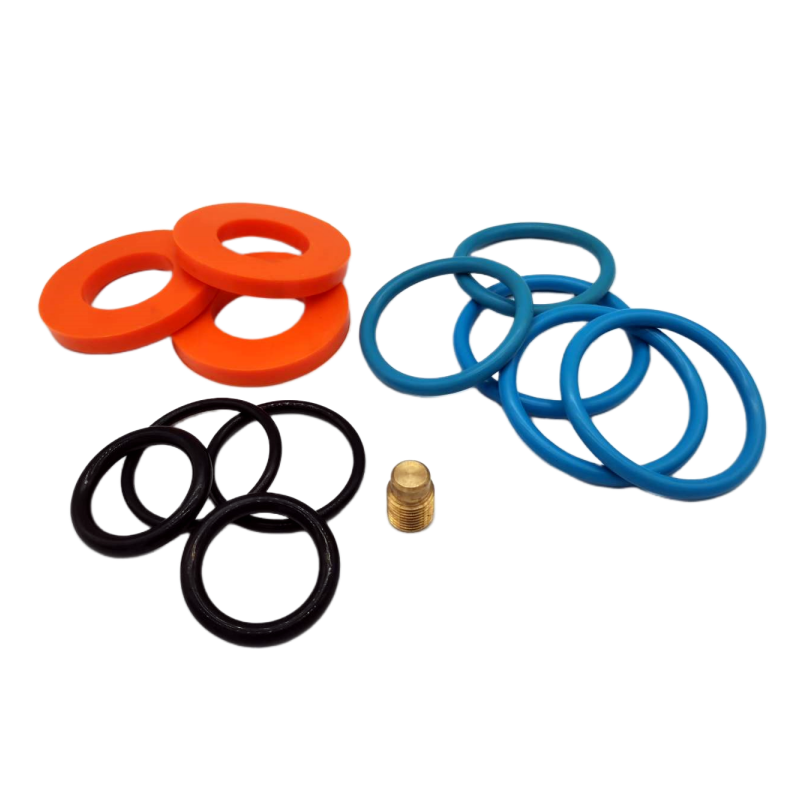

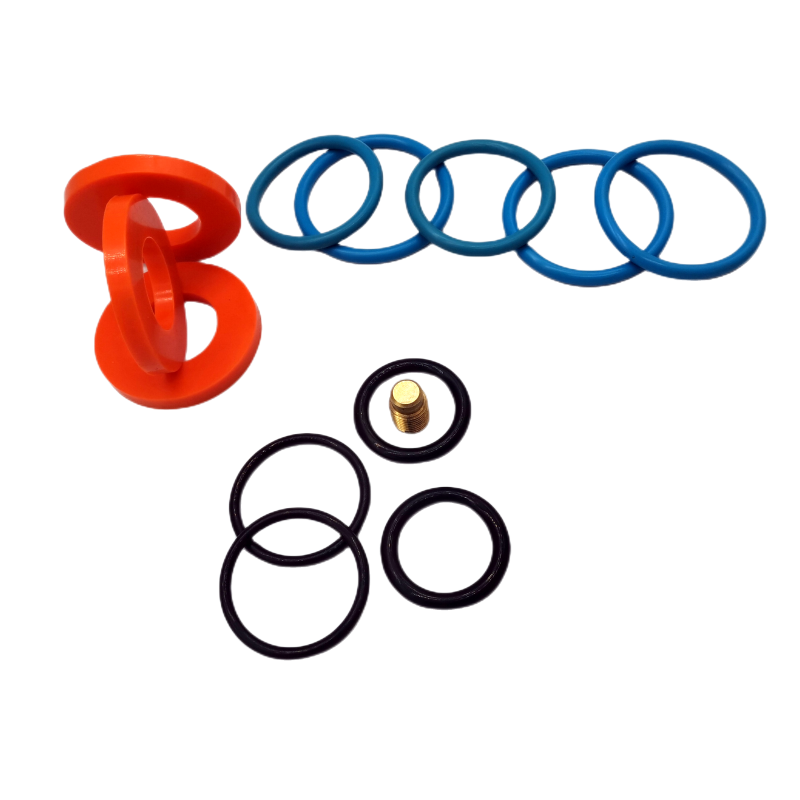

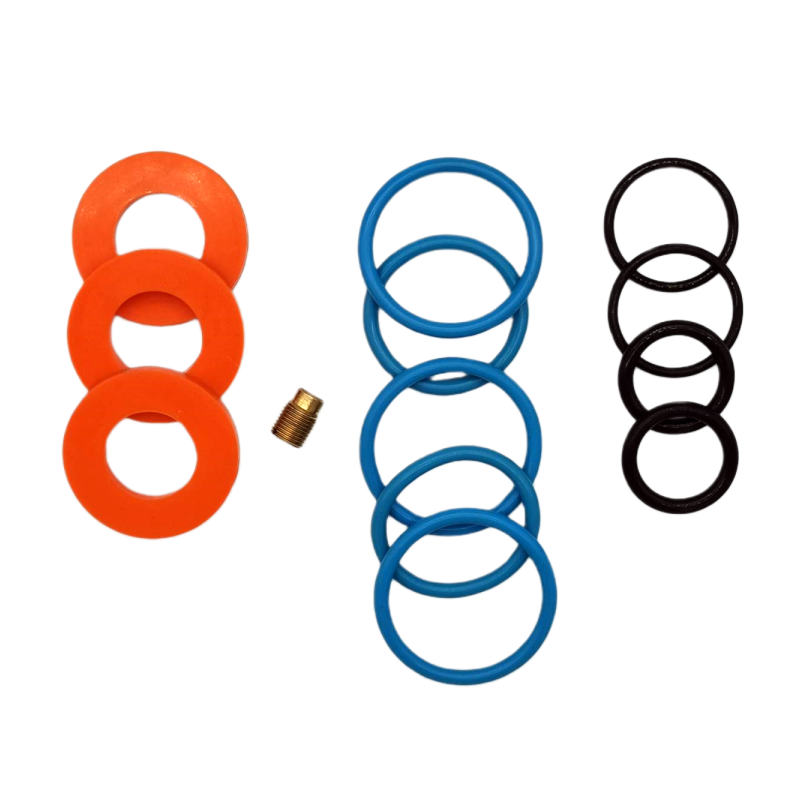

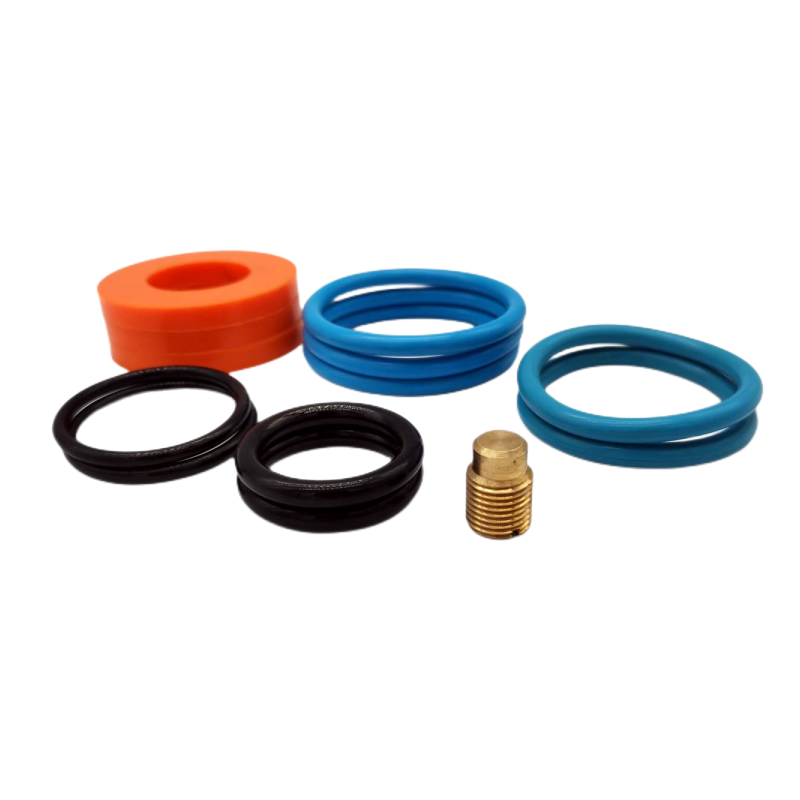

4. Kit Contents: Anatomy of a T-1 Rebuild

The T-1 tool relies on a precise hydraulic sequence. Our kit includes every seal required to maintain pressure integrity across all chambers:

1. Floating Piston Assembly:

   • Includes high-pressure Dynamic O-Rings and Virgin PTFE Backup Rings.

   • Function: Isolates the power charge gas from the hydraulic oil. Failure here causes a “soft set.”

2. Cylinder Connector Seals:

   • Static seals for the Upper and Lower cylinder connections.

3. Firing Head Interface:

   • Seals to connect the specific T-1 style firing head adapter.

4. Manual Bleed-Off Seals:

   • Replacement seals for the pressure release valve.

5. Lower Adapter Seals:

   • Seals for the Wireline Adapter Kit (WLAK) connection.

5. Technical Focus: The PTFE Advantage

In T-1 style tools, the internal pressures can spike rapidly to 15,000 PSI.

• The Problem: Rubber O-rings behave like liquids at these pressures and can try to flow into the metal clearance gaps (extrusion).

• The Royal Way Solution: All our high-pressure dynamic seals are paired with Precision-Machined PTFE Backup Rings. These rigid rings bridge the gap, containing the O-ring and ensuring 100% of the hydraulic force is directed towards stroking the tool.

6. Operational Best Practices

• Oil Level: The T-1 tool requires a specific volume of oil. Always bleed air completely after redressing. Air pockets can compress, leading to insufficient stroke length.

• Inspect the Piston: T-1 pistons can wear over time. If the piston OD is worn, even a new Redress Kit may not seal. Measure your piston against manufacturer specs.

• Clean Threads: T-1 tools rely on tight thread make-up. Ensure all threads are clean and doped properly to prevent leaks at the cylinder joints.

7. Why Choose Royal Way?

• Specialized Expertise: We don’t just sell “Setting Tool Kits”; we distinguish between E-4, T-1, and Shorty styles, ensuring you get the exact kit for your specific hardware.

• Quality Assurance: Every batch is tested for hardness and dimensions.

• Stock Availability: We maintain heavy inventory of T-1 kits to support Titan-style fleets.

8. Ordering Information

(Disclaimer: Titan®, Hunting®, and Probex® are registered trademarks. Royal Way is an independent manufacturer of compatible aftermarket parts and is not affiliated with these entities.)
