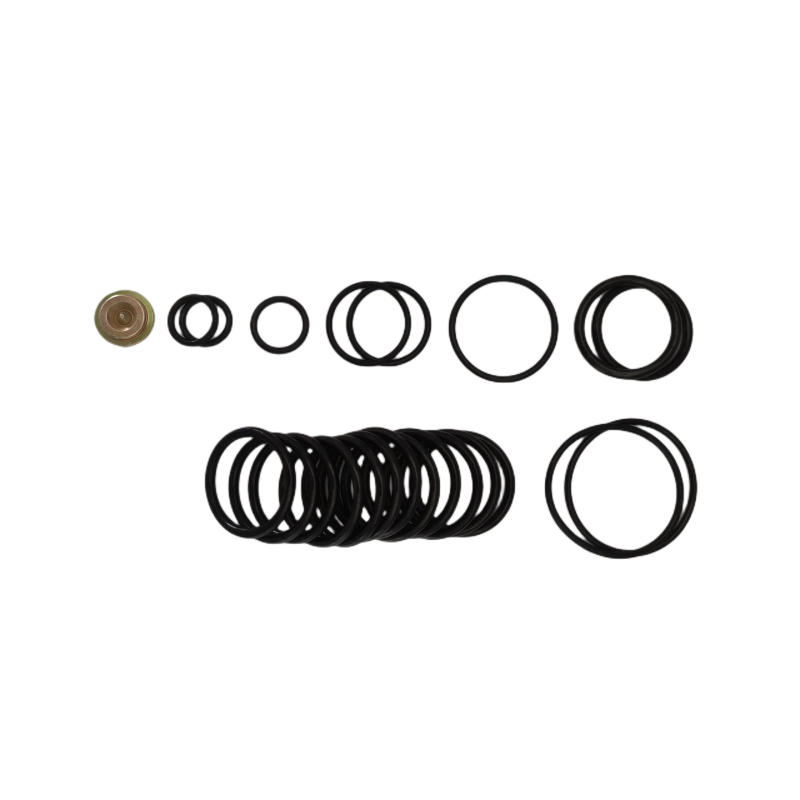

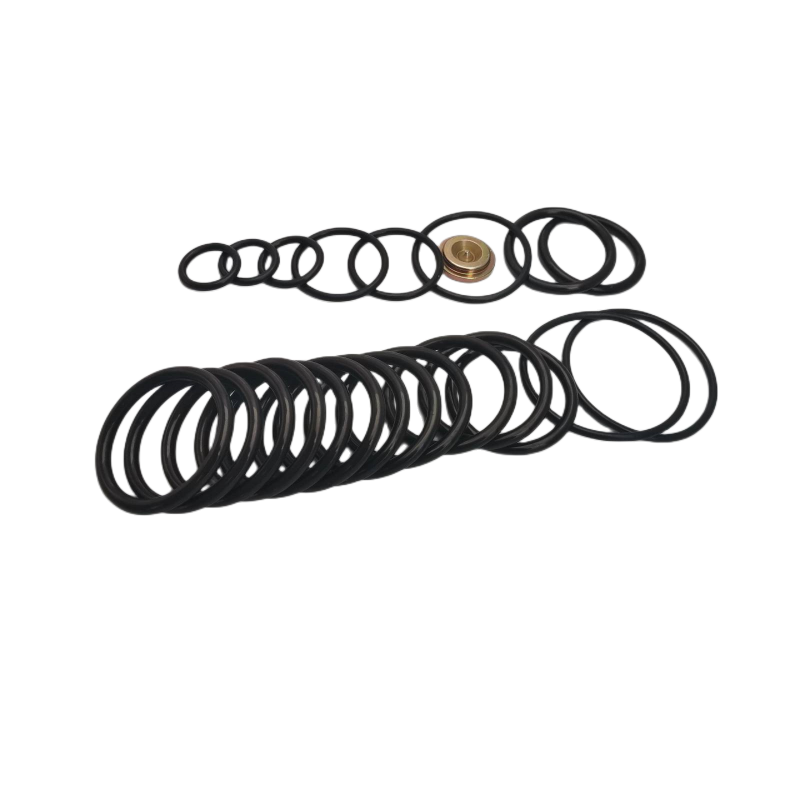

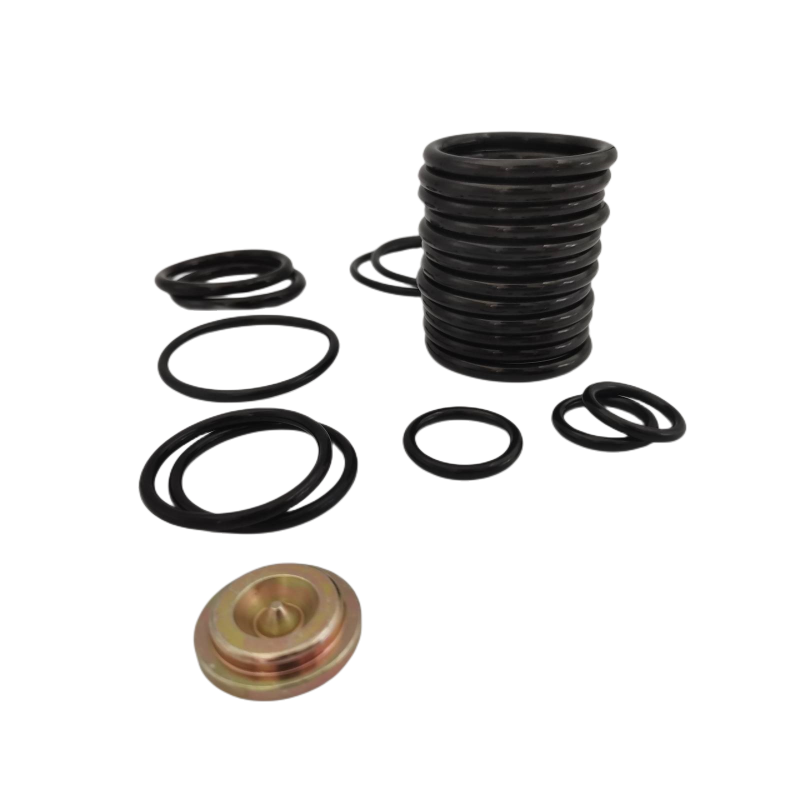

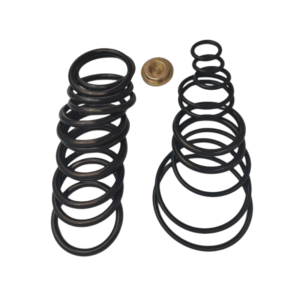

Redress Kit for Baker Style #10 Wireline Setting Tool

In the critical phase of wireline completions, the reliability of your Pressure Setting Assembly (WPSA) is the only thing standing between a successful plug-and-perf operation and a costly misrun. At Royal Way, we understand that a single O-ring failure can halt an entire frac fleet. That is why we engineer our Redress Kits not just to “fit,” but to outperform.

Technical Specifications

  • Standard Service (NBR): For routine operations up to 250°F.
  • High-Temp Service (FKM/Viton®): For deep, hot wells up to 400°F.
  • Extreme Service (Aflas®/HNBR): For Sour Gas (H2S) and chemically aggressive environments.

Sizes

  • Available for #10, #20, and Compact Setting Tools etc.

Redress Kit for Baker Style #10 Wireline Setting Tool | Model E-4 Compatible

1. Executive Summary: Zero-Failure Reliability for Wireline Operations

The Model E-4 Wireline Pressure Setting Assembly (WPSA), commonly known as the “Baker #10 Setting Tool”, is the industry workhorse for setting bridge plugs, frac plugs, and cement retainers. To ensure a successful run every time, routine maintenance is non-negotiable.

Our Redress Kit for Baker Style #10 Setting Tools provides every seal, backup ring, and expendable component required to completely rebuild the tool after a run. Available in Standard Service (NBR) and High-Temp (Viton®/FKM) configurations, these kits are engineered to withstand the extreme internal pressures generated by the power charge, ensuring a positive set and a clean release, run after run.

2. Compatibility & Fitment Guide

This kit is precision-engineered to be 100% Interchangeable with all major manufacturers of Baker-style setting tools.

  • Tool Model: Model E-4 Wireline Pressure Setting Assembly (and compatible clones).

  • Tool Size: Size #10 (typically used for 4.5″ casing and smaller).

  • Maximum Setting Force: Designed to handle the standard 35,000 lbs shear force rating of a #10 tool.

  • Compatible Brands: Fits tools from Baker Hughes®, Owen Oil Tools®, and generic API 11D1 equivalent assemblies.

⚠️ NOTE: This kit is for the #10 tool (2-1/8″ OD approx). If you are running the larger #20 tool (for 5.5″+ casing), please see our #20 Redress Kit page.

3. Material Options: Matching the Seal to the Well

We offer two distinct material grades to match your specific downhole conditions. Choosing the right material is critical to preventing seal failure.

Option A: Standard Service (NBR / Nitrile)

  • Color Code: Black O-Rings

  • Temperature Rating: -20°F to +250°F (-29°C to +121°C)

  • Application: Standard pump-down operations, shallow vertical wells, and environments using standard water-based fluids.

  • Benefit: Cost-effective solution for routine completions.

Option B: High-Temp / Sour Service (FKM / Viton®)

  • Color Code: Black (Marked) or Brown O-Rings

  • Temperature Rating: -15°F to +400°F (-26°C to +204°C)

  • Application: Deep High-Pressure High-Temperature (HPHT) wells, long lateral runs where tool temperature rises, and wells containing mild H2S or aggressive chemicals.

  • Benefit: Resists “compression set” at high heat. Ensures the seals don’t harden and fail to hold the oil pressure required to stroke the tool.

4. Kit Contents: A Complete Rebuild Solution

Our Redress Kits are not just a bag of mixed O-rings. They are organized to facilitate a systematic rebuild of the Upper Cylinder, Piston, and Lower Adapter.

The Kit Includes:

  1. High-Pressure O-Rings: Premium quality seals for the Floating Piston, Cylinder Head, and Manual Bleed-Off Valve.

  2. Anti-Extrusion Backup Rings:

    • Virgin PTFE (Teflon) backup rings are included for all high-pressure dynamic sealing areas.

    • Why it matters: During the power charge burn, internal pressures can spike rapidly. PTFE backups prevent the rubber O-rings from extruding into the metal gap, preventing hydraulic failure.

  3. Specialty Seals: Includes the Piston Seal and Setting Mandrel Seals.

  4. Snap Rings / Retaining Rings: (Optional in some kits) Replacement external retaining rings for the adapter kit connection.

(Note: Power Charges and Oil are sold separately.)

5. Technical Deep Dive: The Importance of the “Floating Piston” Seal

The most critical seal in a #10 Setting Tool is the Floating Piston Seal.

  • Function: It separates the wellbore fluid (or gas pressure from the power charge) from the hydraulic oil chamber.

  • Failure Mode: If this seal fails, wellbore fluid mixes with the oil, or the power charge gas bypasses the piston (“communicates”). This results in a “Soft Set” or a complete failure to stroke the tool.

  • Our Solution: Our kits feature a 90 Durometer High-Modulus O-ring paired with dual PTFE backup rings for this specific location, ensuring absolute isolation even under maximum burn pressure.

6. Operational Tips for Wireline Technicians

  • Cleanliness: Ensure all metal threads and seal grooves are cleaned of carbon residue (from the previous power charge) before installing new seals.

  • Lubrication: Use high-quality O-ring grease (silicone or lithium base depending on temp) during assembly to prevent “pinching” or cutting the O-rings.

  • Bleed-Off: Always replace the seals on the Manual Bleed-Off Valve. This is a critical safety point for releasing trapped pressure at the surface.

7. Why Buy Our Redress Kits?

  1. Shop-Ready Packaging: Kits are bagged and labeled with Part Number, Batch Number, and Cure Date. No guessing games in the gun shop.

  2. Fresh Inventory: We adhere to ARP 5316 shelf-life standards. You never receive old, hard rubber.

  3. Volume Pricing: Available in single packs or Bulk 10-Packs for high-volume wireline shops.

8. Ordering Information

Part Number Description Material
RK-BAK-10-NBR Redress Kit, Baker Style #10 NBR (Standard)
RK-BAK-10-FKM Redress Kit, Baker Style #10 Viton® (High-Temp)
RK-BAK-10-AFL Redress Kit, Baker Style #10 Aflas® (Extreme H2S)

(Disclaimer: Baker®, Baker Hughes®, and Owen® are registered trademarks. These kits are compatible aftermarket replacements manufactured by Royal Way)
