/ Frac Pump Plungers

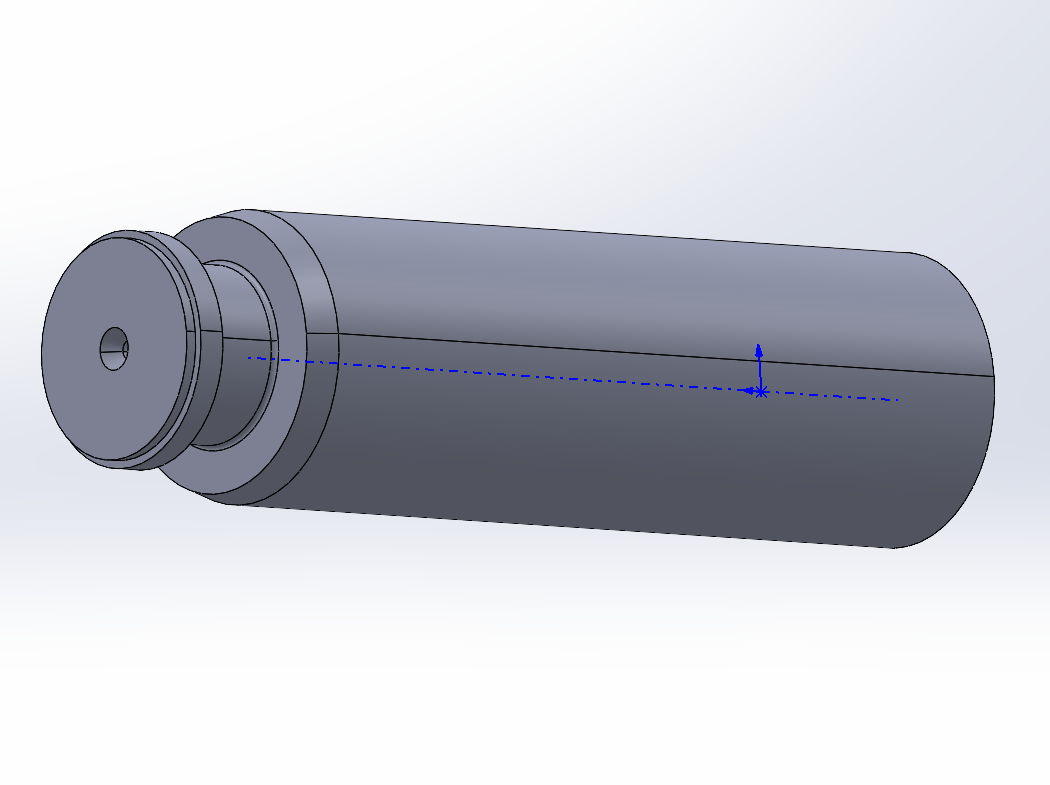

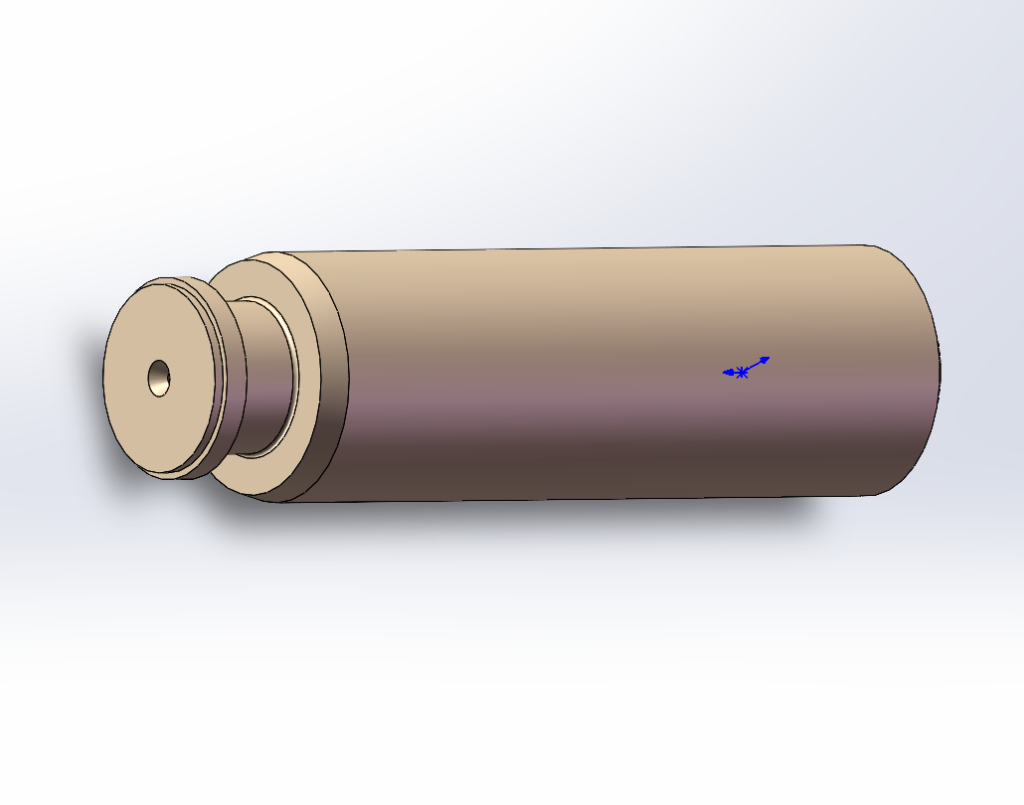

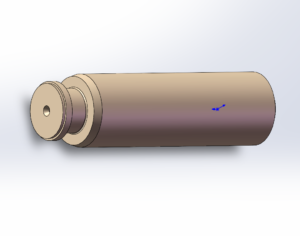

Premium Flame Spray Coated Plungers | Compatible with SPM® & FMC® Fluid Ends

In the punishing environment of hydraulic fracturing, a plunger is only as good as its bond. Our Flame Sprayed Nickel-Based Alloy Plungers set the standard for reliability in 4″, 4.5″, and 5″ fluid ends.

Technical Specifications

  • Coating Material: Nickel-Based Alloy (Ni-Cr-B-Si)
  • Surface Hardness: 58 - 62 HRC
  • Surface Finish: Ra 2 - 4 µin (Mirror Polish)
  • Core Material: AISI 1045 / 4140 Carbon Steel
  • Porosity: Near Zero (after fusing)
  • Available Sizes: 4.0
  • Compatible Pumps: SPM®, Gardner Denver®, FMC®, MSI®
  • Manufacturing Process: Flame Spray & Fuse (Thermal Spray)

Applications

  • Compatible Pumps: SPM®, Gardner Denver®, FMC®, MSI®

Premium Flame Spray Coated Plungers | Compatible with SPM® & FMC® Fluid Ends



1. Executive Summary: OEM Quality, Aftermarket Value

For maintenance managers running SPM® (Weir) or FMC® (TechnipFMC) frac pumps, the cost of consumables directly impacts the bottom line. However, sacrificing quality for price is not an option when a fluid end washout can cost $30,000+.

Our Premium Flame Spray Coated Plungers offer the perfect balance: a high-performance, cost-effective alternative that meets or exceeds OEM specifications. Engineered specifically for 4.0″, 4.5″, and 5.0″ fluid ends, these plungers are manufactured using the industry-standard Spray & Fuse (Thermal Spray) process with a Nickel-Based hard-facing. They deliver the exact same 60 HRC hardness, corrosion resistance, and dimensional precision as the original equipment, ensuring a seamless drop-in fit.

2. Compatibility Guide: Engineered for Precision Fit

Our plungers are reverse-engineered and manufactured to strict API dimensional tolerances to ensure they are 100% Interchangeable with the following pump models. No adapters or modifications are required.

Compatible with SPM® (Weir Oil & Gas) Fluid Ends

  • Destiny™ / QWS 2500: The industry standard Quintuplex for high-pressure fracturing.

  • QWS 2700 / QWS 2500 XL: High-performance long-stroke pumps.

  • TWS 2250 / TWS 2400: Reliable Triplex workhorses found on older fleets.

  • TWS 600 / TMP 1650: Versatile well service and cement pumps.

Compatible with FMC® (TechnipFMC) Fluid Ends

  • WQ 2400 / WQ 2700: Heavy-duty Quintuplex pumps.

  • 2200 / 2400 Series: Standard well service pumps.

⚠️ FITMENT GUARANTEE: We guarantee thread pitch accuracy and pony rod connection concentricity within 0.0005″.

3. Manufacturing Excellence: The “Spray & Fuse” Process

We do not use “Cold Spray” or cheap plating methods. We utilize the Flame Spray & Fuse technique—the only method proven to withstand the rigors of 15,000 PSI fracturing.

The “Premium” Difference

  1. High-Velocity Application: We apply a Nickel-Chrome-Boron-Silicon (Ni-Cr-B-Si) alloy powder using high-velocity oxygen fuel (HVOF) or combustion powder spray systems.

  2. Induction Fusing (The Critical Step): The coated plunger is heated to approximately 1,950°F. This fuses the alloy particles into a 100% dense, non-porous shield.

  3. Metallurgical Bond: The heat causes the coating to diffuse into the steel core, creating a bond strength exceeding 60,000 PSI. This eliminates the risk of coating separation (delamination) that plagues inferior aftermarket parts.

4. Comprehensive Technical Specifications

Technical Parameter Specification Benchmark
Coating Type Flame Spray & Fuse (Hardfacing) Same as OEM Spec
Material Chemistry Nickel-Based Alloy (Colmonoy® 6 Equiv) Excellent Corrosion Resistance
Surface Hardness 58 – 62 HRC Resists Proppant Abrasion
Surface Finish Ra 2 – 4 µin (Mirror Polish) Maximizes Packing Life
Core Material AISI 1045 or 4140 Carbon Steel High Tensile Strength
Concentricity < 0.002″ TIR Prevents Seal Side-Loading
Sizes Available 4.00″, 4.50″, 5.00″ Mainstream Frac Sizes
Availability Stock / Rapid Production Faster than OEM lead times

5. Operational Benefits

1. Corrosion Resistance (Acidizing Ready)

The Nickel-Chromium matrix provides a superior barrier against Hydrochloric Acid (HCl) and Hydrogen Sulfide (H2S) compared to carbon steel or chrome plating. These plungers are safe for use in Mixed Fleets that alternate between Fracking and Acidizing jobs without pitting.

2. Extended Packing Life

Packing failure is often caused by a rough plunger surface acting like a file.

  • Our Solution: We centerless grind and polish every plunger to an Ra < 4 micro-inch finish. This ultra-smooth surface reduces friction coefficient, lowering the operating temperature of the stuffing box and extending the life of your Kevlar/Gold packing.

3. Regrind Potential

Because our Flame Spray process applies a thick coating (typically 0.040″ to 0.060″ per side), these plungers can be reground to undersize specifications (e.g., -0.010″) after their first run. This significantly lowers your total cost of ownership (TCO).

6. Quality Assurance (QA) Protocols

We understand that a failed plunger can cause catastrophic damage. We take zero risks:

  • Ultrasonic Testing (UT): 100% of plungers are scanned to ensure zero bond-line defects.

  • Hardness Verification: Tested at 3 points along the barrel to ensure consistent 60 HRC hardness.

  • Dimensional Scan: Laser verification of Diameter, Length, and Thread Pitch to ensure mating with OEM pony rods.

7. Why Switch to Premium Aftermarket?

  • Cost Efficiency: Save 20-30% compared to OEM list prices without sacrificing quality.

  • Availability: We stock standard 4″, 4.5″, and 5″ sizes for immediate dispatch to key oilfield regions (Permian, Eagle Ford, Bakken).

  • Performance: Same material, same process, same hardness—just better value.

(Note: SPM® and FMC® are registered trademarks of their respective owners. We are an independent manufacturer of replacement parts and are not affiliated with these brands.)
