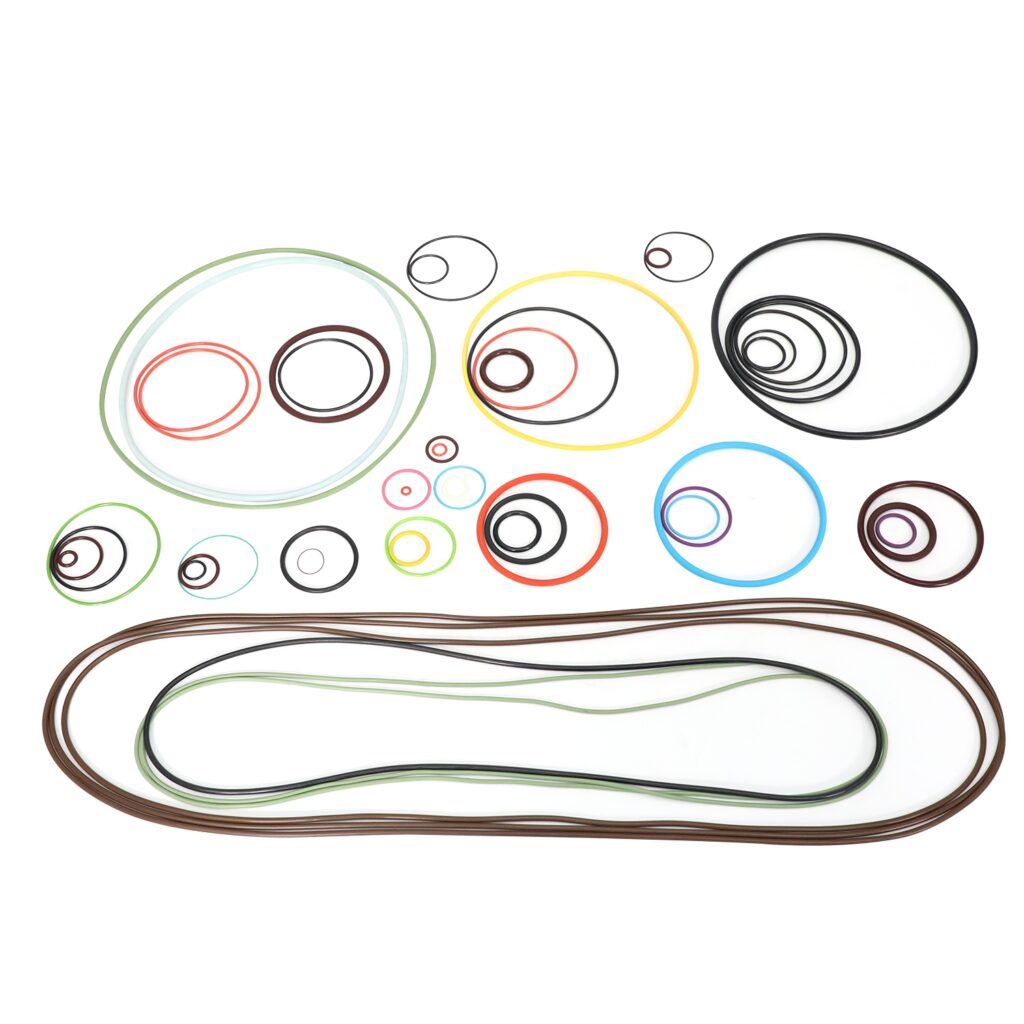

High-Performance HNBR Rubber O-Ring for Oilfield Equipment
Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way®
Quality system: Royal Way operates an ISO 9001 quality management system.
Applicable requirements: Confirmed against the exact compound, drawing and service conditions before quotation.
Applications: Wellhead equipment, Valves, Pipeline flanges and joints, Pumps, Subsea equipment etc.
Material selection: Reviewed for the specified media, pressure and temperature requirements.
Technical Specifications
Applications
High-Performance HNBR Rubber O-Ring for Oilfield Equipment: Ultimate Guide to Durability and Safety
🔧 Why HNBR O-Rings Dominate Oilfield Sealing Solutions
Hydrogenated Nitrile Butadiene Rubber (HNBR) O-rings are selected for defined oilfield equipment requirements where compound selection and service conditions need review.
Key Advantages for Oilfield Applications:
-
Extreme Temperature Resistance:Operates continuously from -50°F (-46°C)to 300°F (149°C)with short-term exposure up to 356°F (180°C)
-
Chemical Warfare Survival:Resists:
-
Sour gas (H₂S concentrations >5%)
-
Chlorinated solvents
-
Crude oil blends with asphaltene deposits
-
Amine-based drilling fluids
-
-
Mechanical Resilience:Maintains 95%+ compression set after 10,000 cycles at 20,000 psi pressure
📊 Technical Specifications Comparison
|
Parameter |
HNBR O-Ring |
Standard NBR O-Ring |
Industry comparison reference |
|---|---|---|---|
|
Max Temp Resistance |
300°F (149°C) |
250°F (121°C) |
275°F (135°C) |
|
Tensile Strength |
3,500-4,500 psi |
2,000-3,000 psi |
≥3,000 psi |
|
Abrasion Resistance |
450% elongation |
300% elongation |
≥350% |
|
Ozone Resistance |
500+ hours (ASTM D1171) |
200-300 hours |
≥480 hours |
🛠️ Critical Applications in Oilfield Equipment
1. Drilling Rig Hydraulics
-
Withstands 5,000 psipressure spikes during blowout preventer (BOP) actuation
-
Resists 15% H₂S + 10% CO₂gas mixtures common in shale formations
-
Case Study: Reduced leakage rate by 78% in deepwater Gulf of Mexico rigs
2. Subsea Pipeline Valves
-
Maintains seal integrity at 6,000 psiworking pressure
-
Compatible with 3-phase flow(oil/water/gas) containing H₂S and mercaptans
-
Applicable leakage criteria are confirmed against the exact compound, drawing and operating conditions.
3. Steam Injection Systems
-
Survives 600°F steam cleaning cycleswithout crosslink degradation
-
Prevents cokingin thermal recovery units
📝 Selection Guide for Engineers
3 Critical Factors:
-
Pressure-Velocity (PV) Limits
-
≤1,500 psi·ft/min for standard grades
-
Special grades handle up to 3,000 psi·ft/min
-
-
Chemical Compatibility Matrix
Fluid Type
Recommended Grade
Max Exposure Time
Crude Oil
HNBR 80
Continuous
30% H₂S in N₂
HNBR 90
48 hours
Ethylene Glycol
HNBR 70
24 hours
-
Mechanical Design Considerations
-
Groove Depth: 1.2× cross-section diameter
-
Compression: 18-25% for static seals
-
Backup Rings: Required for pressures >10,000 psi
-
🛡️ Installation Best Practices
-
Surface Preparation
-
Clean grooves with acetone(not alcohol)
-
Deburr edges to <0.005″ radius
-
-
Lubrication Protocol
-
Use molybdenum disulfide greasefor high-pressure applications
-
Avoid silicone-based lubricants
-
-
Post-Installation Testing
-
Pressure decay test: 150% working pressure for 30 mins
-
Thermal cycling: -40°F → 300°F (10 cycles)
-
🛡️ Standards and acceptance criteria
Applicable standards and acceptance criteria are confirmed against the exact compound, drawing and operating conditions before quotation.
📈 Selection considerations
Material selection should be based on the drawing, media, pressure, temperature and installation conditions for the specific application.
📌 Expert Recommendations
-
Critical Applications:Use HNBR 90for H₂S-rich environments (>5%)
-
Cost-Sensitive Projects:HNBR 70offers 80% of 90’s performance at 60% cost
-
Retrofit Projects:Pair with FKM backup ringsfor pressure spikes
For a quotation, share the AS568 size or drawing, compound requirement and service conditions.
