Well Service Pump Plungers | Compatible with MSI® & Weir® Fluid Ends

1. Executive Summary: The Universal Solution for Mixed Fleets

Managing a Well Service fleet often means dealing with a mix of equipment. whether you are running MSI® (Dixie Iron Works) pumps for cementing or Weir® (SPM) pumps for stimulation, you need a plunger supply chain that is versatile, reliable, and fast.

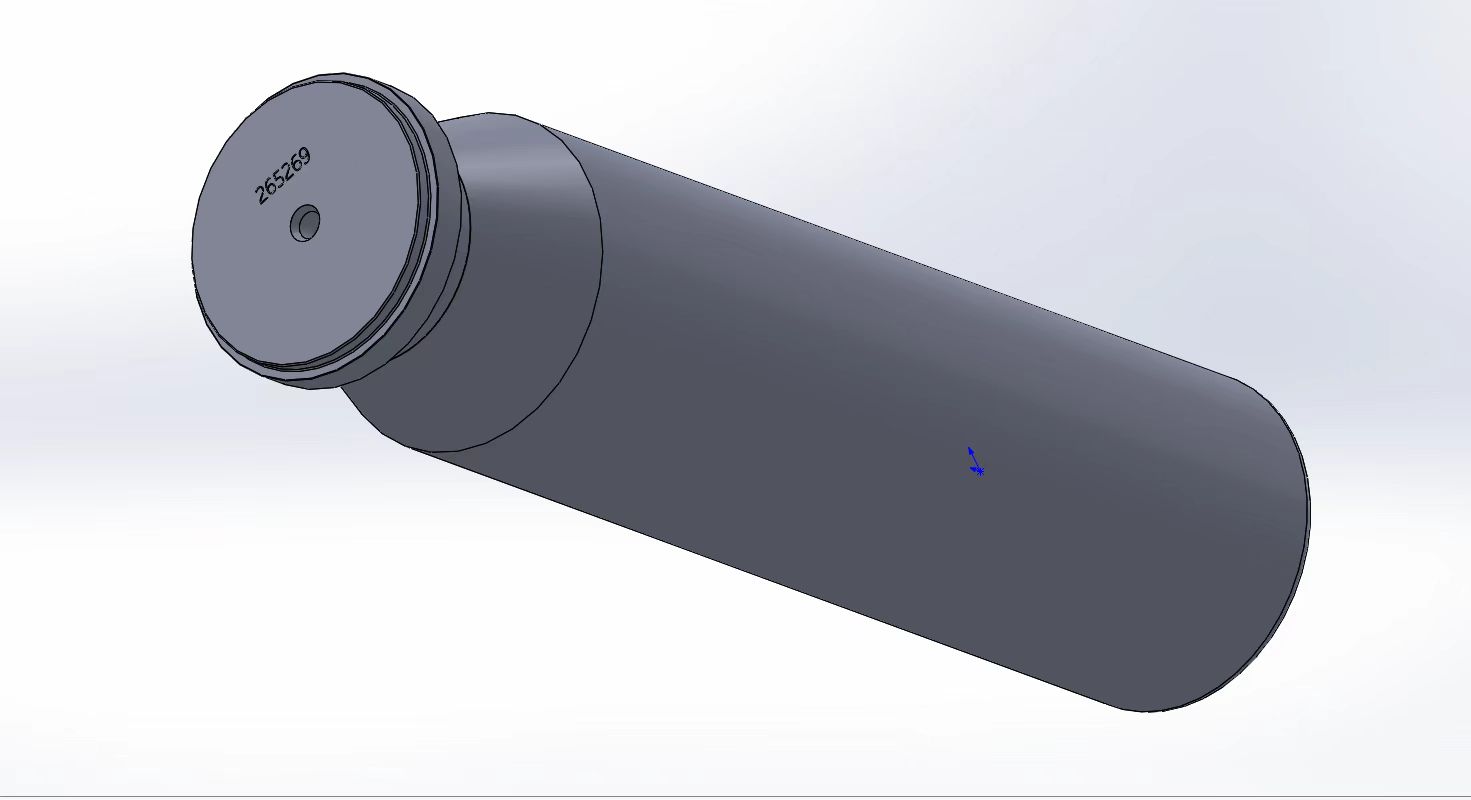

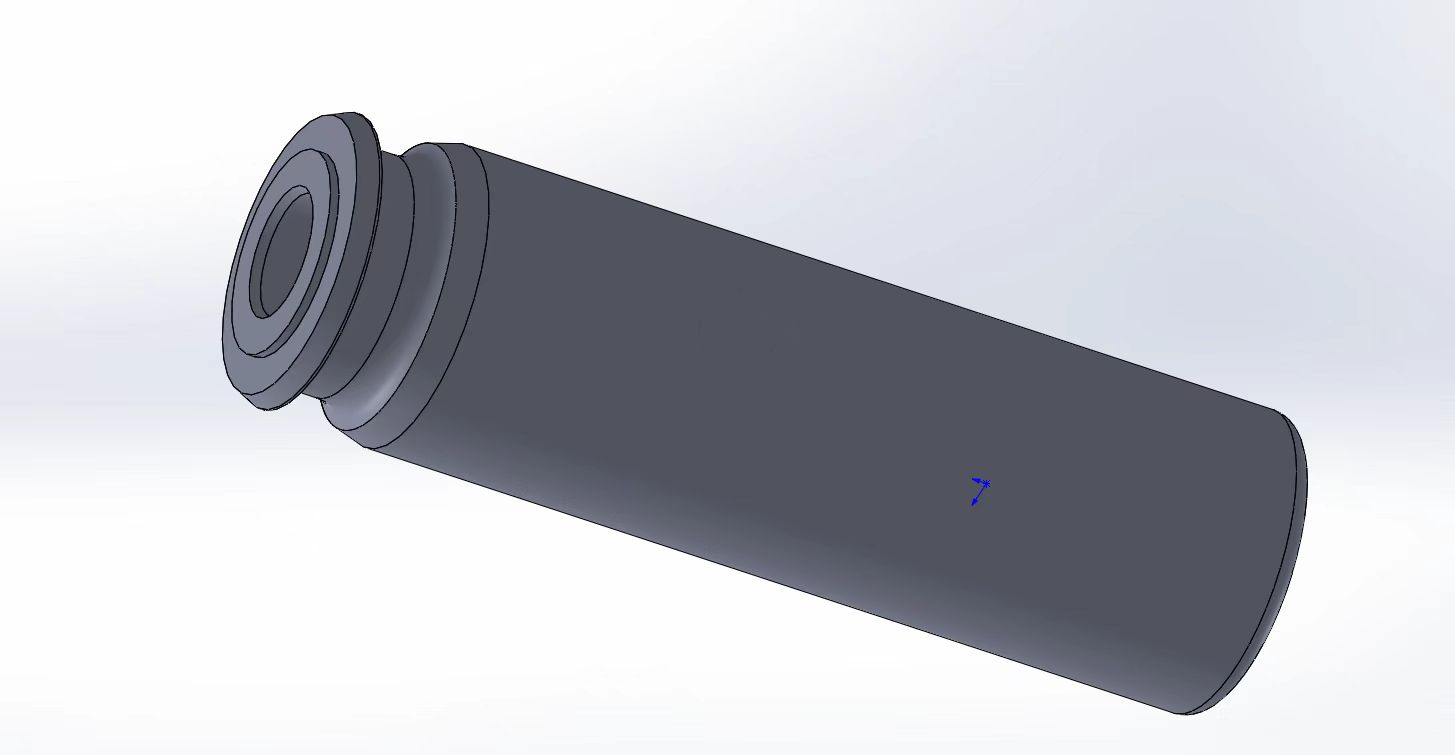

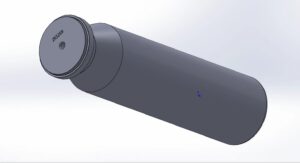

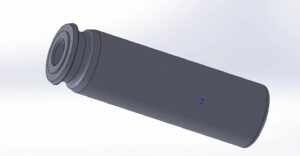

Our Well Service Pump Plungers are engineered to be the universal standard for 4.0″, 4.5″, and 5.0″ fluid ends. Manufactured with a premium Nickel-Alloy Flame Spray & Fuse coating, these plungers offer the extreme abrasion resistance needed for cement slurries and the chemical inertness required for acidizing. They are precision-machined to ensure 100% compatibility with both MSI® and Weir® fluid end geometries, simplifying your inventory and reducing downtime.

2. Compatibility Guide: One Plunger, Multiple Pumps

We have optimized our manufacturing tolerances to meet the rigorous specifications of the industry’s leading well service pumps.

Compatible with MSI® (Dixie Iron Works)

MSI pumps are renowned in the Cementing and Coil Tubing sectors. Our plungers are drop-in replacements for:

• MSI® TI-600: The industry standard Triplex for cementing and acidizing.

• MSI® Hybrid™ Well Service Pumps: High-performance quintuplex units.

• Sizes: 4.0″, 4.5″, 5.0″ (Standard pony rod connections).

Compatible with Weir® (SPM)

• TWS 600 / TWS 600S: The most common pump for general well service application.

• TWS 2250 / QWS 2500: High-pressure stimulation pumps.

• TMP 1650: High-rate cementing pumps.

⚠️ FLEET MANAGEMENT TIP: By standardizing on our Nickel-Alloy plungers, you can consolidate inventory for both your MSI and Weir pumps (where pony rod specs align), reducing the “dead stock” in your warehouse.

3. Technical Superiority: Engineered for Cement & Acid

Well Service pumps face a different set of challenges than pure frac pumps. They handle Cement Slurries (highly abrasive) and Acid Blends (highly corrosive). Standard carbon steel plungers fail quickly in these environments.

The “Fused” Nickel Alloy Advantage

We utilize the Spray & Fuse process to apply a Ni-Cr-B-Si (Nickel-Chrome-Boron-Silicon) hard-facing.

1. Abrasion Resistance (Cementing):

   • Cement particles scour soft metals. Our coating achieves 60 HRC hardness, creating a barrier that resists the grinding action of high-density cement slurries.

2. Corrosion Resistance (Acidizing):

   • Hydrochloric Acid (HCl) eats chrome plating. Our Nickel-Based matrix is chemically noble and practically immune to HCl attack. This means you can pump acid in the morning and cement in the afternoon without changing plungers.

3. Metallurgical Bond:

   • The coating is fused at ~1,950°F to create a non-porous bond. It will not peel or flake, preventing damage to downstream valves and seats.

4. Detailed Specifications

5. Operational Benefits

1. Packing Longevity

In intermittent well service operations, packing can dry out and overheat. Our plungers feature a Mirror-Polished (Ra < 4) surface. This ultra-smooth finish reduces friction heat generation, preserving the life of your packing headers and pressure rings, even during start-stop operations.

2. Reduced “Pitting”

Standard plungers often come back from an acid job looking like the surface of the moon (pitted). Our Nickel-Alloy plungers resist pitting corrosion, maintaining a smooth sealing surface job after job.

3. Value Pricing

We offer OEM-level quality at aftermarket pricing, allowing service companies to maintain their margins in a competitive market.

6. Quality Assurance

• Thread Verification: All plunger threads are gauged to ensuring smooth makeup with MSI and SPM pony rods.

• Hardness Testing: Verified 60 HRC to ensure the plunger can handle sand, cement, and coil tubing fluids.

• Traceability: Heat numbers tracked for every batch.

7. Ordering Information

• Part Numbers: Cross-reference available for all MSI and SPM part numbers.

• Stock Status: High volume sizes (4.5″) are typically in stock.

• Shipping: Robust packaging to ensure plungers arrive straight and true.

(Disclaimer: MSI®, Dixie Iron Works®, Weir®, and SPM® are registered trademarks of their respective owners. We are an independent manufacturer of replacement parts and are not affiliated with these entities.)
