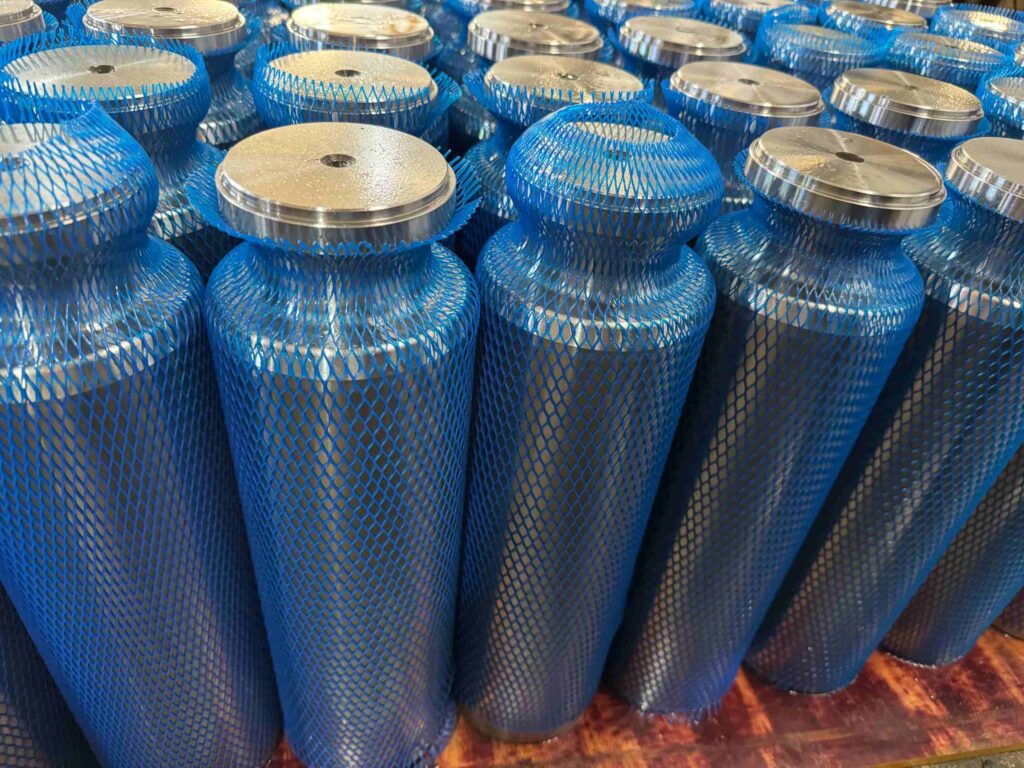

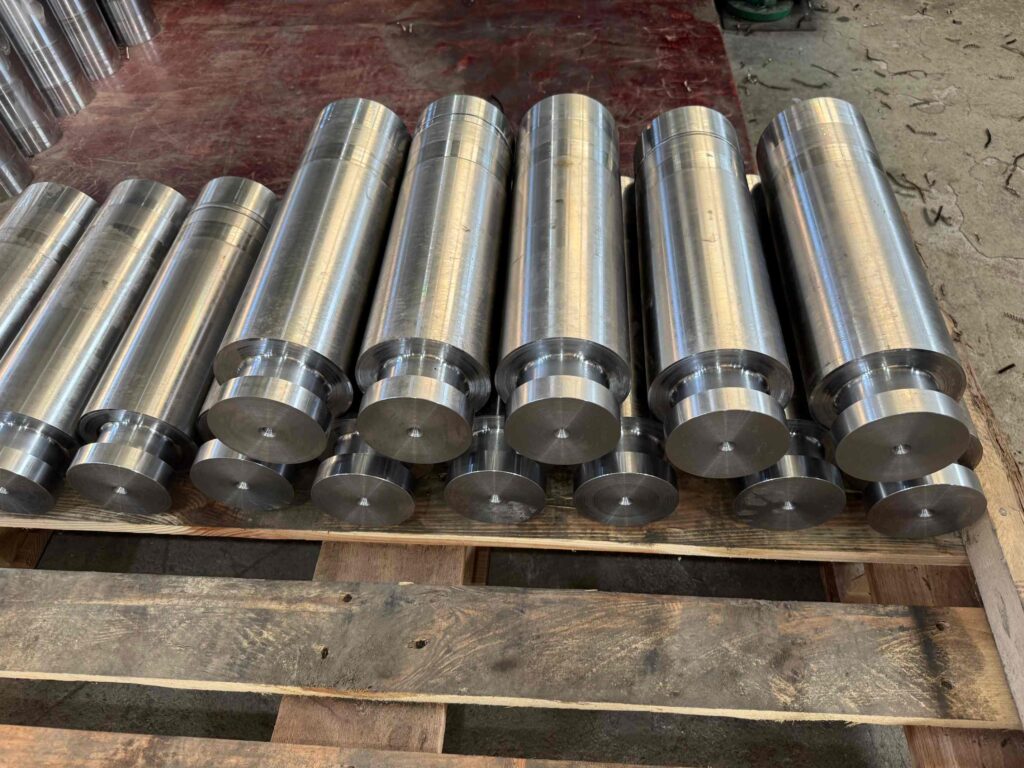

Corrosion-Resistant Nickel Alloy Plungers (4″ – 5″) | Acidizing & Fracking Series

1. Executive Summary: The “Mixed Fleet” Solution

In modern well stimulation, pumps are often required to switch rapidly between high-pressure Hydraulic Fracturing (sand laden fluid) and Acidizing (Hydrochloric/Hydrofluoric Acid). Using standard carbon steel or chrome-plated plungers in acid applications leads to rapid pitting, coating flaking, and seal failure.

Our Corrosion-Resistant Nickel Alloy Plungers are engineered to solve this mixed-service challenge. Available in 4.0″, 4.5″, and 5.0″ sizes, these plungers utilize a premium Nickel-Chromium-Boron-Silicon (Ni-Cr-B-Si) hard-facing applied via the Spray & Fuse process. This specific alloy chemistry offers a dual advantage: the extreme hardness (60 HRC) required to resist frac sand abrasion, combined with the superior chemical inertness of Nickel to withstand aggressive acid blends and Sour Gas (H2S).

2. The Corrosion Challenge: Why Standard Plungers Fail

The Acid Attack (HCl)

Acidizing jobs typically utilize 15% to 28% Hydrochloric Acid (HCl).

• The Problem: HCl aggressively attacks Iron (Fe). Standard carbon steel plungers or porous spray coatings allow acid to penetrate to the substrate. This causes “under-film corrosion,” where the coating blisters and peels off in sheets.

• Our Solution: Nickel is chemically noble compared to Iron. Our Nickel-Based alloy creates an impermeable barrier that is virtually immune to HCl attack at typical pumping temperatures, preventing pitting and delamination.

The Sour Gas Threat (H2S)

• The Problem: Hydrogen Sulfide (H2S) causes Sulfide Stress Cracking (SSC) in high-strength steels.

• Our Solution: The high Nickel and Chromium content in our coating provides excellent resistance to H2S embrittlement, extending plunger life in sour fields (e.g., Permian, Duvernay).

3. Material Science: Hardness Meets Corrosion Resistance

We use a specific Self-Fluxing Nickel Alloy (industry standard Colmonoy® 6 equivalent) that does not compromise on hardness.

• Matrix (Corrosion Shield): The continuous Nickel-Chromium matrix provides the chemical resistance. It acts as a shield, preventing acids and chlorides from reaching the steel core.

• Hard Phase (Abrasion Shield): Chromium Borides and Carbides precipitate within this matrix during the fusing process. These hard particles (harder than quartz sand) provide the 60 HRC surface hardness needed to resist the scouring action of proppants during the frac stage.

Result: A single plunger that handles the Sand of fracturing and the Acid of stimulation with equal effectiveness.

4. Comprehensive Specifications

5. Compatibility & Fleet Management

Standardizing on our Corrosion-Resistant Nickel Alloy Plungers allows fleet managers to consolidate inventory. You no longer need separate “Acid Plungers” and “Frac Plungers.”

• 4.0″ Plungers:

  • Fits: SPM® QWS 2500, FMC® 2400.

  • Use Case: High-pressure acid injection or deep-well fracking.

• 4.5″ Plungers:

  • Fits: SPM® TWS 2250, QWS 2700, Gardner Denver® 3000.

  • Use Case: The standard workhorse for mixed frac/acid fleets.

• 5.0″ Plungers:

  • Fits: SPM® QWS 2500 XL, GD 3000.

  • Use Case: High-rate stimulation and pump-down operations.

6. Process Quality: The “Fused” Difference

For acid resistance, Porosity is the Enemy.

• Cold Spray vs. Fused: Standard “Cold Spray” coatings have microscopic pores. Under high pressure (10,000 PSI), acid is forced through these pores to eat the steel core.

• Our Spray & Fuse Advantage: We heat the coated plunger to ~1,900°F. The coating melts and flows (fuses), eliminating ALL porosity. This creates a 100% dense, hermetic seal around the steel core. Acid literally has no path to reach the base metal.

7. Operational ROI

1. Reduced Inventory: Stock one part number per size, capable of any job.

2. No “Acid Pitting”: Plungers come back from acid jobs looking polished, not pitted.

3. Regrindable: The thick, fused Nickel coating allows for regrinding, maximizing the total lifecycle value.
