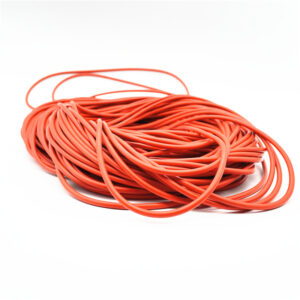

Arctic Grade Fluorosilicone (FVMQ) O-Rings | Cold Weather Hydraulic & Fuel Seals
Our Arctic Grade Fluorosilicone O-Rings solve this paradox. By chemically modifying the silicone backbone with trifluoropropyl groups, we create a hybrid material that possesses the extreme low-temperature flexibility of silicone (-75°F) AND the fuel/oil resistance of fluorocarbons. This is the mandatory specification for hydraulic systems, valve actuators, and control modules operating in sub-zero climates.
Technical Specifications
- Pressure Rating: 2000 to 5,000 PSI
- Temperature Range: -40°F to 400°F
- Material: Silicone (VMQ)
Applications
- Downhole Electronics (PCBs, Batteries, Sensors)
- Vibration Dampeners
- Thermal Insulators
Arctic Grade Fluorosilicone (FVMQ) O-Rings | Cold Weather Hydraulic & Fuel Seals
1. Executive Summary
In the frozen frontiers of the energy sector—from the North Sea to the Siberian tundra—Fluorosilicone (FVMQ) is the unsung hero. Standard Nitrile seals crack at -40°F. Standard Silicone seals swell and fail when they touch oil.
2. Technical Deep Dive: The Chemistry of FVMQ
Why “Fluoro” matters?
The addition of fluorine to the polymer chain provides “Non-Polar” characteristics. Since oils and fuels are also non-polar, standard silicone (which is slightly polar) absorbs them. FVMQ repels them.
-
Fuel Resistance: Excellent resistance to Jet Fuel (JP-4, JP-8), Diesel, Kerosene, and Natural Gas condensates.
-
Hydraulic Resistance: Fully compatible with mineral-based hydraulic oils (Hlp) used in accumulators and actuators.
The “Blue” Standard (Visual Safety)
In the field, a black Fluorosilicone O-ring looks exactly like a black Nitrile O-ring. If a technician installs Nitrile in a -60°F application, it will shatter.
-
Our Solution: We supply our FVMQ O-rings in a distinct Blue Color (or Fuel Blue). This provides an instant visual confirmation to Quality Control (QC) inspectors that the correct, cold-rated specification has been installed.
3. Detailed Specifications
| Technical Property | Specification | Test Standard |
| Material Family | Fluorosilicone (FVMQ) | ASTM D1418 |
| Specification | MIL-DTL-25988 Type 2, Class 1 | Military/Aerospace |
| Temp Range | -75°F to +350°F (-60°C to +177°C) | Continuous |
| Oil Resistance | Comparable to NBR (Medium Swell) | ASTM D471 |
| Low Temp TR-10 | -70°F (-57°C) | ASTM D1329 |
| Standard Color | Blue (Custom colors available) | – |
4. Critical Applications: Arctic & Aerospace
Cold Weather Hydraulics
-
Accumulators: Gas and oil separation seals in hydraulic accumulators exposed to arctic ambient air.
-
Crane Hydraulics: Seals for deck cranes on icebreaker support vessels.
Valve Actuation (Gas & Liquid)
-
Emergency Shutdown Valves (ESDV): These safety-critical valves often sit dormant in freezing temperatures. FVMQ ensures the seal doesn’t “freeze” to the seat, allowing the valve to close instantly when triggered.
-
Gas Regulators: Pilot diaphragms and O-rings in natural gas pipeline regulators.
Turbine & Power Gen
-
Fuel Metering: Precision seals in the fuel control units of gas turbines.
5. Comparative Analysis: FVMQ vs. The Rest
| Feature | Fluorosilicone (FVMQ) | Low-Temp NBR | Standard Silicone (VMQ) |
| Low Temp Limit | -75°F (Best) | -40°F | -75°F |
| Oil/Fuel Resistance | Excellent | Excellent | Poor (Swells) |
| Cost | High | Low | Medium |
| Primary Use | Arctic Hydraulics / Jet Fuel | General Purpose | Static Air/Water |
6. Storage & Handling
FVMQ is a high-performance material but has lower physical strength than NBR.
-
Installation: Use assembly lubricants (barium grease or silicone oil) to prevent tearing during installation. Avoid stretching more than 20%.
-
Shelf Life: 20 Years (Unlimited) if stored away from direct sunlight.
