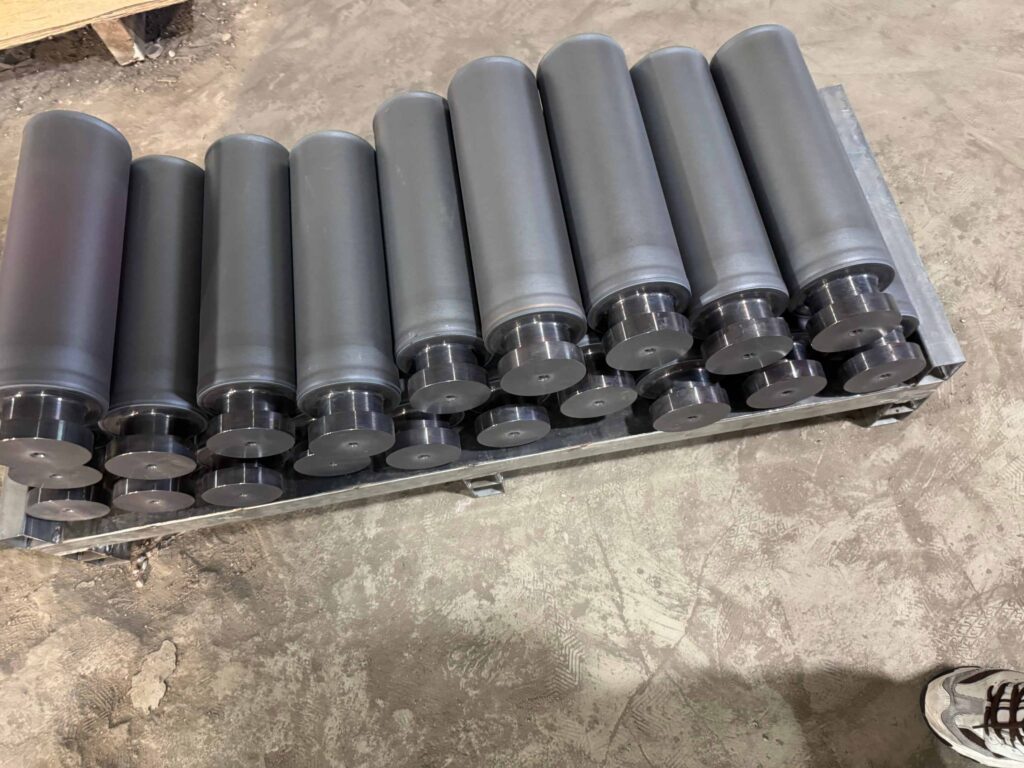

60 HRC Nickel Alloy Hard-Surfaced Plungers | Flame Spray Process for High Durability

In the punishing environment of hydraulic fracturing, a plunger is only as good as its bond. Our Flame Sprayed Nickel-Based Alloy Plungers set the standard for reliability in 4″, 4.5″, and 5″ fluid ends.

Technical Specifications

  • Coating Material: Nickel-Based Alloy (Ni-Cr-B-Si)
  • Surface Hardness: 58 - 62 HRC
  • Surface Finish: Ra 2 - 4 µin (Mirror Polish)
  • Core Material: AISI 1045 / 4140 Carbon Steel
  • Porosity: Near Zero (after fusing)
  • Available Sizes: 4.0
  • Compatible Pumps: SPM®, Gardner Denver®, FMC®, MSI®
  • Manufacturing Process: Flame Spray & Fuse (Thermal Spray)

Applications

  • Compatible Pumps: SPM®, Gardner Denver®, FMC®, MSI®

60 HRC Nickel Alloy Hard-Surfaced Plungers | Flame Spray Process for High Durability

1. Executive Summary: The Gold Standard for Frac Durability

In the high-stakes arena of hydraulic fracturing, plunger failure means downtime. Our 60 HRC Nickel Alloy Hard-Surfaced Plungers are engineered to survive the most abrasive sand slurries and corrosive acid blends found in modern well stimulation.

Manufactured using a premium Flame Spray & Fuse process, these plungers feature a heavy-duty Nickel-Chrome-Boron (Ni-Cr-B-Si) overlay that is physically fused to the steel core. Unlike standard chrome plating which can peel, or cold-spray coatings which suffer from porosity, our fused coating creates a non-porous, homogenous Metallurgical Bond with a guaranteed surface hardness of 60-62 HRC. This is the ultimate solution for extending the life of your 4″, 4.5″, and 5″ fluid ends.

2. Technical Deep Dive: The Flame Spray & Fuse Process

To achieve “High Durability,” we go beyond simple coating. We employ a two-step thermal process that transforms the coating into a solid, wear-resistant shield.

Step 1: The Flame Spray Application

Using high-velocity oxygen-fuel torches, atomized Nickel-Based Alloy powder is projected onto the prepared carbon steel core. This builds up the initial layer of hard-facing material.

Step 2: The Fusing (The Critical Differentiator)

This is where our quality is defined. The sprayed plunger is heated to approximately 1,950°F (1,065°C).

  • Densification: The alloy coating melts and re-solidifies, eliminating the microscopic voids and porosity inherent in standard spraying.

  • Metallurgical Bonding: The molten alloy diffuses into the steel substrate. The coating does not just “stick” to the surface; it becomes an integral part of the base metal.

  • Result: A plunger that is immune to delamination (flaking) even under the extreme cyclic loading of a 15,000 PSI pump.

3. Material Science: Why 60 HRC Nickel Alloy?

The Hardness Sweet Spot (60 HRC)

We target a Rockwell C hardness of 58-62.

  • vs. Chrome (68-70 HRC): Chrome is harder but brittle and micro-cracks easily.

  • vs. Steel (50 HRC): Steel is too soft for frac sand.

  • The 60 HRC Advantage: Our Nickel Alloy strikes the perfect balance—hard enough to resist the scratching of ceramic proppants, yet tough enough to resist thermal shock cracking during rapid pump temperature changes.

Corrosion Immunity

The Ni-Cr-B-Si (Nickel-Chromium-Boron-Silicon) chemistry offers superior resistance to:

  • HCl Acid Blends: Essential for acidizing fleets.

  • H2S & Chlorides: Resists pitting corrosion better than 4140 steel or standard chrome.

4. Comprehensive Technical Specifications

Technical Parameter Specification Notes
Manufacturing Process Flame Spray & Fuse Thermal Spray with secondary fusing
Hard-Facing Material Nickel-Based Alloy Industry equiv. to Colmonoy® 6
Surface Hardness 60 ± 2 HRC Tested on every plunger
Bond Strength > 60,000 PSI Metallurgical Bond
Surface Finish (Ra) 2 – 4 µin (Mirror Finish) Optimized for Packing Life
Concentricity (TIR) < 0.002″ Precision Centerless Ground
Core Material AISI 1045 or 4140 Steel High Tensile Strength
Sizes Available 4.0″, 4.5″, 5.0″ Fits SPM, FMC, GD Fluid Ends

5. Compatibility & Applications

Our plungers are dimensionally manufactured to OEM tolerances, ensuring a drop-in fit for major pump brands.

  • Hydraulic Fracturing: Handling high-concentration sand slurries (100 mesh, 40/70 sand).

  • Acidizing: Pumping 15% – 28% Hydrochloric Acid.

  • Cementing: Resisting the abrasive scour of cement particles.

  • Compatible Fluid Ends:

    • SPM®: TWS 600, QWS 2500, QWS 2700, TMP 2250

    • Gardner Denver®: GD 2250, GD 2500, GD 3000

    • FMC®: 2200, 2400 Quintuplex

6. Operational Benefits (ROI)

  • Extended Packing Life: The fused coating allows for an ultra-smooth finish (Ra < 4). A smoother plunger generates less friction heat, significantly extending the lifespan of your Kevlar or Hard-Style packing rings.

  • Regrindable: Because the Flame Spray & Fuse process applies a thick coating (typically >0.030″ per side), these plungers can often be ground down to an undersize specification after wear, effectively doubling the asset life.

  • No “Flaking”: Eliminates the risk of coating chips damaging the valves and seats downstream.

7. Quality Control Protocols

We don’t just spray and ship. Every plunger undergoes rigorous testing:

  • Hardness Testing: To verify the 60 HRC spec.

  • Ultrasonic Testing (UT): To detect any hidden delamination at the bond line.

  • Dimensional Scan: Laser micrometer verification of OD and straightness.

Ready to upgrade your fleet?

Stop replacing plungers halfway through a job. Switch to Fused Nickel Alloy.
