4″ 15K TSI Style Swivel Joint Seal Kit | Flowline Repair

Engineered for the constant motion and extreme pressures of articulating flowlines, Royal Way Swivel Joint Seal Kits provide the critical components needed to rebuild and maintain your treating iron. Our kits are designed to restore smooth rotation and ensure a leak-free seal in Style 10, 50, and 80 swivel joints, preventing costly downtime during fracturing, cementing, and well service operations.

Featuring high-performance elastomers (NBR, HNBR, FKM), anti-extrusion backup rings, and precision ball bearings, each kit is a complete MRO (Maintenance, Repair, and Operations) solution. Restore your iron to OEM standards with Royal Way.

Technical Specifications

  • Compatibility: Designed for Chiksan®, SPM®, FMC®, and Anson® style longsweep swivel joints.
  • Swivel Styles Supported: Fits all configurations including Style 10, 20, 30, 40, 50, 60, 80, and 100.
  • Size Range: 1", 1-1/2", 2", 3", 4" (Nominal Pipe Size).
  • Pressure Rating: 6,000 PSI to 22,500 PSI
  • Material: Nitrile (NBR), HNBR, FKM (Viton®)

Applications & Industry Usage

  • Hydraulic Fracturing (Fracking)
  • Cementing Operations
  • Acidizing & Well Stimulation
  • Coiled Tubing & Snubbing
  • Flowback & Well Testing
  • Drilling Mud Systems

Product: 4″ 15K TSI Style Swivel Joint Seal Kit | Flowline Repair

1. Executive Summary: Keeping the Flow Moving

TSI Flow Products® has built a reputation for providing rugged, high-quality flowline equipment. Their 4-inch 15,000 PSI Swivel Joints are staples in high-rate hydraulic fracturing and pump-down operations. When it’s time to recertify this iron, you need a repair kit that matches the resilience of the original hardware.

Royal Way 4″ 15K TSI Style Repair Kits are the reliable aftermarket choice. Engineered to be 100% Interchangeable with TSI style swivels, our kits feature high-performance elastomers and precision-hardened steel hardware. We provide the complete rebuild solution—including load-bearing balls and anti-extrusion rings—restoring your “Code Red” assets to full operational status for a fraction of the cost.

2. Compatibility Guide: TSI Style Identification

This kit is precision-molded to fit the packing bore dimensions of TSI Flow Products equipment.

  • Target Equipment: 4-Inch Swivel Joints.

  • Pressure Rating: 15,000 PSI (Code Red).

  • Style: TSI Style (Longsweep).

  • Connection: Typically found on swivels with Fig 1502 Unions.

  • Fitment: Drop-in replacement for OEM TSI seal kits.

⚠️ SHOP NOTE: While many 15K swivels look alike, internal dimensions vary by brand. This kit is optimized for TSI (Tech Seal International) housings. If you have FMC or SPM iron, please select the corresponding kit to ensure the perfect “squeeze” on the packing.

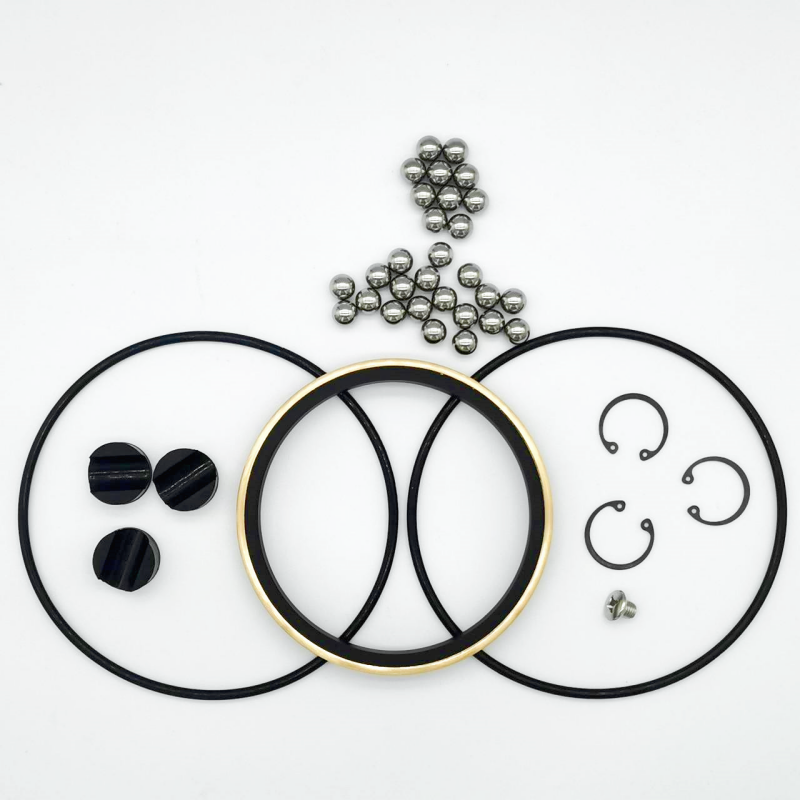

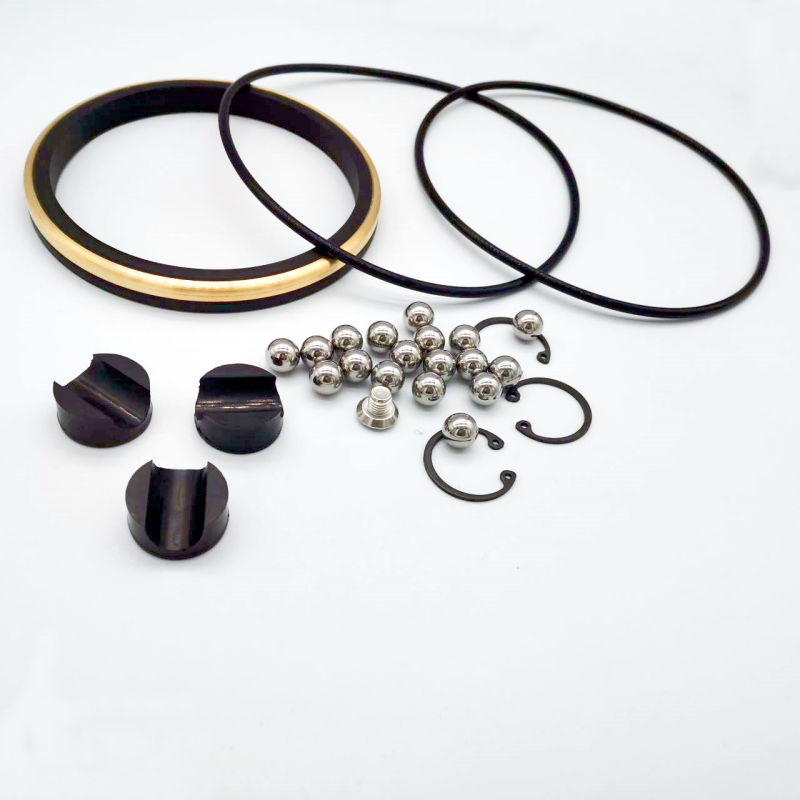

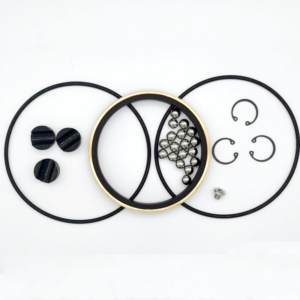

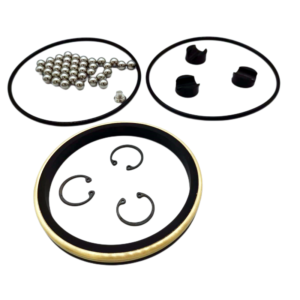

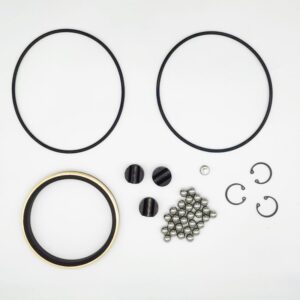

3. Kit Contents: The Heavy-Duty Overhaul

Big iron requires big performance. Our kit includes:

  1. High-Performance Packing:

    • Profile: Robust lip seal designed to handle the pressure spikes of a 15,000 PSI kick.

    • Material: 90 Durometer NBR (Standard) or HNBR (Sour).

  2. Steel Anti-Extrusion Ring:

    • Material: Zinc-Plated Carbon Steel or Stainless Steel.

    • Function: Bridges the gap between the male and female race. Critical: Our backups are machined to tight tolerances to prevent the “nibbling” effect common in large-bore swivels.

  3. Chrome Steel Ball Bearings:

    • Qty: Complete set for 3 raceways.

    • Spec: Precision ground to ensure the swivel rotates freely under load, reducing torque on the connecting pipe.

  4. Grease Seal / Dust Seal:

    • Heavy-duty profile to keep high-velocity sand dust out of the bearings.

  5. Grease Zerk:

    • Standard lubrication fitting.

4. Material Options: Service Classifications

Option A: Standard Service (NBR / Buna-N)

  • Application: High-Rate Fracking, Water Transfer, Cementing.

  • Why Royal Way NBR? We use a “High-Abrasion” NBR compound. In 4-inch lines, flow turbulence is massive. Our material resists the erosion caused by swirling sand fines better than generic rubber.

  • Temp: -20°F to +250°F.

Option B: Sour Gas & Acid (HNBR or Viton®)

  • Application: Sour Gas (H2S), Acidizing, Hot Flowback.

  • Performance:

    • HNBR (Green): The standard for H2S and Sour Crude.

    • Viton® (Orange): Recommended for Acidizing fleets or temps >300°F.

5. Technical Focus: Handling “Shock Load”

4-inch flowlines experience massive “Water Hammer” (shock loads) when pumps kick on or off.

  • The Component: The Backup Ring.

  • The Royal Way Advantage: Our backup rings are manufactured from high-yield steel that resists deformation during shock loads. This ensures the seal gap remains closed even when the pipe jumps, preventing the instantaneous high-pressure leaks known as “burping.”

6. Operational Best Practices

  • Clean the Grease Ports: TSI swivels are robust, but grease channels can get clogged with old hardened grease. Clear the ports with a wire or solvent before installing the new Zerk to ensure new grease actually reaches the bearings.

  • Stake the Plugs: Due to the vibration in 4-inch lines, always stake (center punch) the ball race plugs after torquing to prevent them from vibrating loose.

  • Ball Count: Ensure you install the correct number of balls. Leaving a gap too large can cause point-loading and race failure.

7. Ordering Information

Part Number Description Size Pressure Material
RK-TSI-4-15K-NBR Swivel Kit, TSI Style 4″ 15,000 PSI NBR
RK-TSI-4-15K-HNBR Swivel Kit, TSI Style 4″ 15,000 PSI HNBR
RK-TSI-4-15K-FKM Swivel Kit, TSI Style 4″ 15,000 PSI Viton®

(Disclaimer: TSI® and TSI Flow Products® are registered trademarks. Royal Way is an independent manufacturer of compatible aftermarket parts.)
