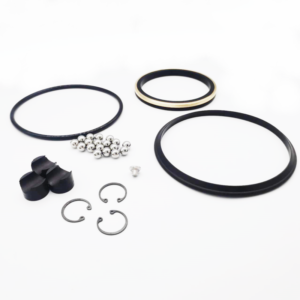

4″ 15K FlowValve Style Swivel Joint Redress Kit | Code Red Repair

Engineered for the constant motion and extreme pressures of articulating flowlines, Royal Way Swivel Joint Seal Kits provide the critical components needed to rebuild and maintain your treating iron. Our kits are designed to restore smooth rotation and ensure a leak-free seal in Style 10, 50, and 80 swivel joints, preventing costly downtime during fracturing, cementing, and well service operations.

Featuring high-performance elastomers (NBR, HNBR, FKM), anti-extrusion backup rings, and precision ball bearings, each kit is a complete MRO (Maintenance, Repair, and Operations) solution. Restore your iron to OEM standards with Royal Way.

Technical Specifications

  • Compatibility: Designed for Chiksan®, SPM®, FMC®, and Anson® style longsweep swivel joints.
  • Swivel Styles Supported: Fits all configurations including Style 10, 20, 30, 40, 50, 60, 80, and 100.
  • Size Range: 1", 1-1/2", 2", 3", 4" (Nominal Pipe Size).
  • Pressure Rating: 6,000 PSI to 22,500 PSI
  • Material: Nitrile (NBR), HNBR, FKM (Viton®)

Applications & Industry Usage

  • Hydraulic Fracturing (Fracking)
  • Cementing Operations
  • Acidizing & Well Stimulation
  • Coiled Tubing & Snubbing
  • Flowback & Well Testing
  • Drilling Mud Systems

Product: 4″ 15K FlowValve Style Swivel Joint Redress Kit | Code Red Repair

1. Executive Summary: Reviving the FlowValve Legacy

For decades, FlowValve swivel joints have been a staple in high-pressure flowlines, known for their rugged durability in cementing and fracking operations. While the brand has evolved under FET (Forum Energy Technologies), the need to maintain these “Code Red” (15,000 PSI) assets remains critical.

Royal Way 4″ 15K FlowValve Style Redress Kits are engineered to bridge the gap. We provide a precise aftermarket solution that matches the specific internal geometry of legacy FlowValve and modern FET style swivels. Featuring premium Lip Seal Packing, heavy-duty metal backup rings, and hardened bearing balls, our kits ensure your 4-inch iron remains certified, safe, and leak-free under the most demanding pressures.

2. Compatibility Guide: FlowValve Identification

⚠️ PRESSURE RATING CHECK: FlowValve manufactured both 10K and 15K swivels. This kit is strictly for 15,000 PSI (Code Red) units.

  • Check the Band: Look for the Red band or “15,000 PSI” stamp on the sub.

  • Check the Union: Typically fitted with Fig 1502 wing unions.

  • Target Equipment: 4-Inch Swivel Joints.

  • Style: FlowValve / FET Style (Longsweep).

  • Fitment:

    • Legacy FlowValve branded swivels.

    • Modern FET (Forum) swivels using the FlowValve design.

    • Generic clones following the FlowValve packing bore profile.

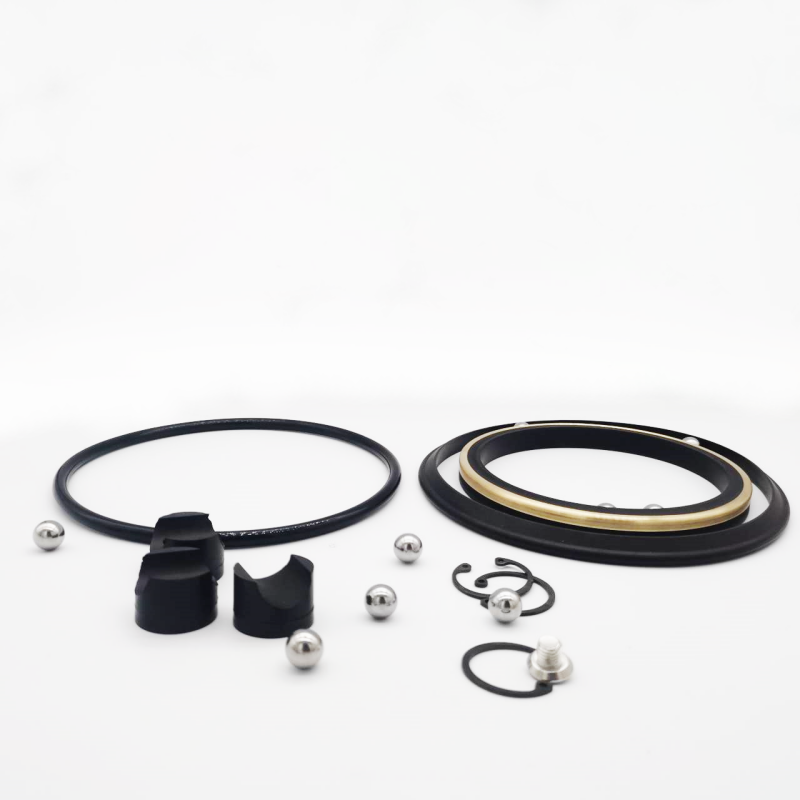

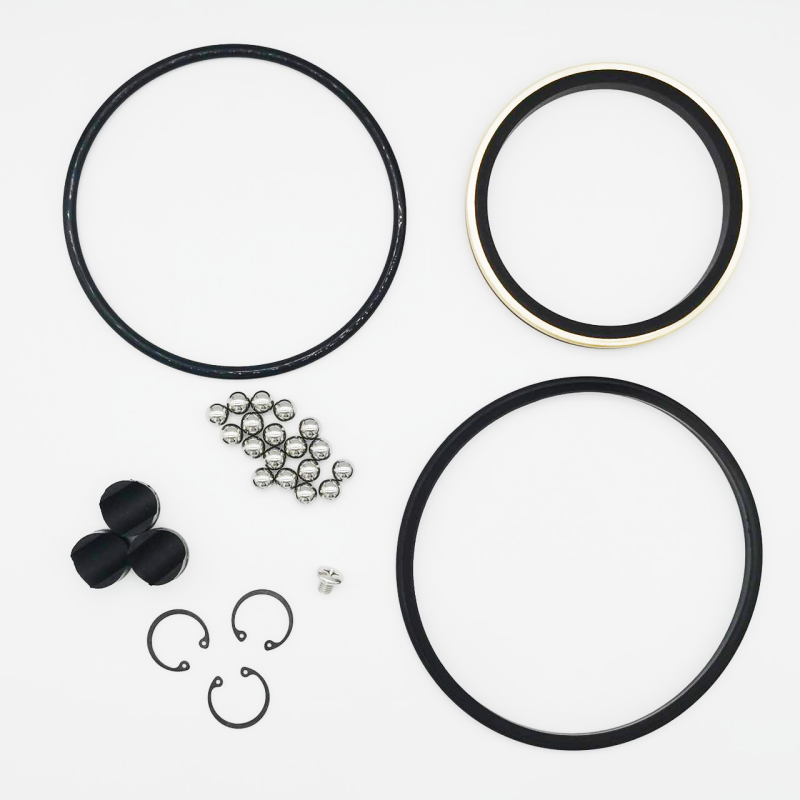

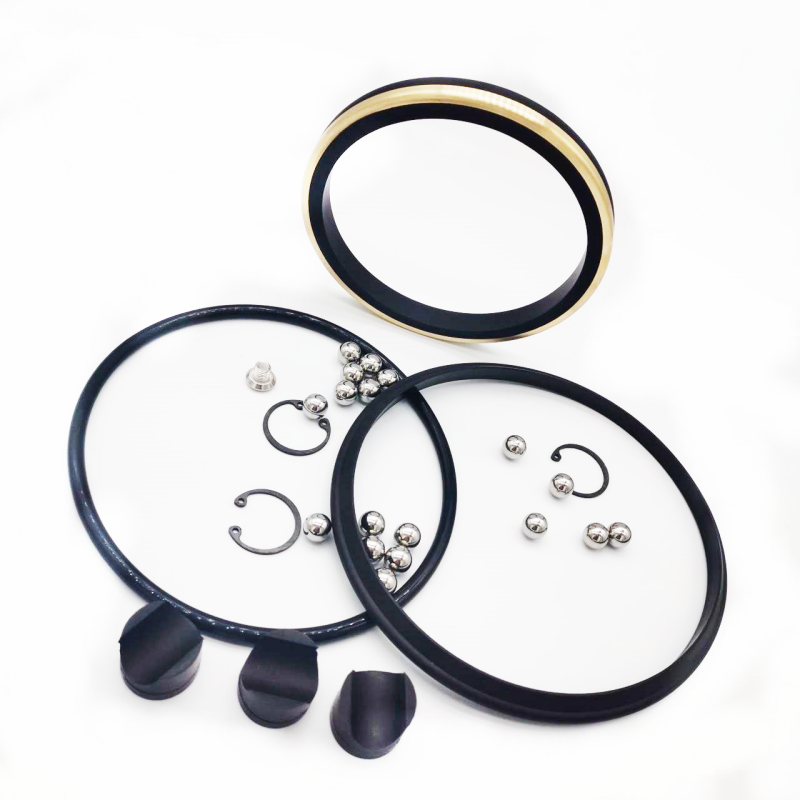

3. Kit Contents: A Complete Overhaul

A FlowValve joint is only as good as its seals. Our kit provides a complete turnaround package:

  1. FlowValve Profile Packing:

    • Design: A robust, pressure-energized lip seal designed to expand instantly under hydrostatic load.

    • Material: 90 Durometer NBR (Standard) or HNBR (Sour).

  2. Anti-Extrusion Backup Ring:

    • Material: Zinc-Plated Carbon Steel.

    • Precision: Machined to fit the FlowValve gland width perfectly. Unlike generic rings that may be too loose, ours prevents the “corner nibbling” that leads to premature failure.

  3. Load Bearing Balls:

    • Qty: Full set for all raceways.

    • Spec: High-grade Chrome Steel (Grade 25 or better) for smooth articulation under heavy pipe weight.

  4. Dust Seals:

    • Heavy-duty external seals to block frac sand ingress.

  5. Grease Zerk:

    • Standard threaded fitting.

4. Material Options: Service Classifications

Option A: Standard Service (NBR / Buna-N)

  • Best For: Hydraulic Fracturing, Cementing, Water Transfer.

  • Why Royal Way NBR? We utilize a compound with exceptional Tear Strength. In 4-inch lines, flow rates are high, creating vacuum effects and turbulence. Our NBR resists tearing during these rapid pressure cycles.

  • Temp: -20°F to +250°F.

Option B: Sour Gas & Acid (HNBR or Viton®)

  • Best For: Sour Gas (H2S), Acidizing, Industrial Cleaning.

  • Performance:

    • HNBR (Green): The standard for H2S fields.

    • Viton® (Orange): Essential for acid jobs or temperatures >300°F.

5. Technical Focus: Sealing Large Bore Iron

Sealing a 4-inch joint at 15,000 PSI requires massive force.

  • The Challenge: Large bore swivels are prone to “Ballooning” (slight expansion) under peak pressure.

  • The Solution: Our Metal Backup Ring is engineered with a specific yield strength to support the elastomer even when the swivel body undergoes elastic deformation. It acts as a rigid wall, keeping the rubber seal compressed and preventing blowout.

6. Operational Best Practices

  • Ball Plug Safety: On FlowValve style swivels, ensure the ball race plugs are fully seated and flush. If they protrude, they can interfere with rotation. Use thread locker or stake them securely.

  • Grease is the Seal: In FlowValve designs, grease helps form a secondary barrier against sand. Don’t skimp on grease. Pump it until you see clean grease purge out.

  • Inspect for Erosion: 4-inch lines see massive sand volume. Check the wall thickness of the elbows during recertification. If erosion is excessive, no seal kit will make it safe.

7. Ordering Information

Part Number Description Size Pressure Material
RK-FV-4-15K-NBR Swivel Kit, FlowValve Style 4″ 15,000 PSI NBR
RK-FV-4-15K-HNBR Swivel Kit, FlowValve Style 4″ 15,000 PSI HNBR
RK-FV-4-15K-FKM Swivel Kit, FlowValve Style 4″ 15,000 PSI Viton®

(Disclaimer: FlowValve™, Forum™, and FET™ are trademarks of Forum Energy Technologies. Royal Way is an independent manufacturer of compatible aftermarket parts.)
