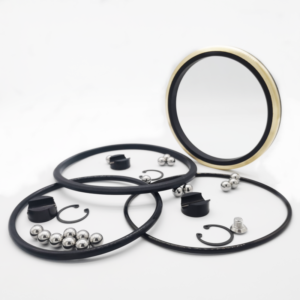

Product: 4″ 10,000 PSI Swivel Kit – FET / Flowvalve Compatible

1. Executive Summary: The 10K Standard for Flow Control

While 15,000 PSI iron dominates high-pressure fracking, the 10,000 PSI (10K) swivel joint remains the definitive standard for Cementing, Coil Tubing Support, and Water Transfer. Leading the market in this segment is the Flowvalve style (now part of FET / Forum Energy Technologies).

Royal Way 4″ 10K Swivel Joint Repair Kits are engineered to keep these critical assets in service. Designed as a direct Drop-In Replacement for Flowvalve style 10K swivels, our kits restore the leak-free integrity and smooth rotation required for your Code Black iron. We combine OEM-grade elastomers with precision-machined backup rings to ensure safety and performance at a fraction of the OEM replacement cost.

2. Compatibility Guide: FET / Flowvalve Legacy

⚠️ PRESSURE RATING ALERT: This kit is specifically for 10,000 PSI (Code Black) equipment. It is NOT compatible with 15,000 PSI (Code Red) swivels, as the seal pocket dimensions differ.

• Target Equipment: 4-Inch Swivel Joints.

• Pressure Rating: 10,000 PSI CWP (Cold Working Pressure).

• Style: Flowvalve Style (Longsweep).

• Compatible Brands:

  • Flowvalve (Legacy).

  • FET (Forum Energy Technologies) 10K series.

  • Generic 10K Clones: Fits most API 6A 10K swivels utilizing the Flowvalve geometry.

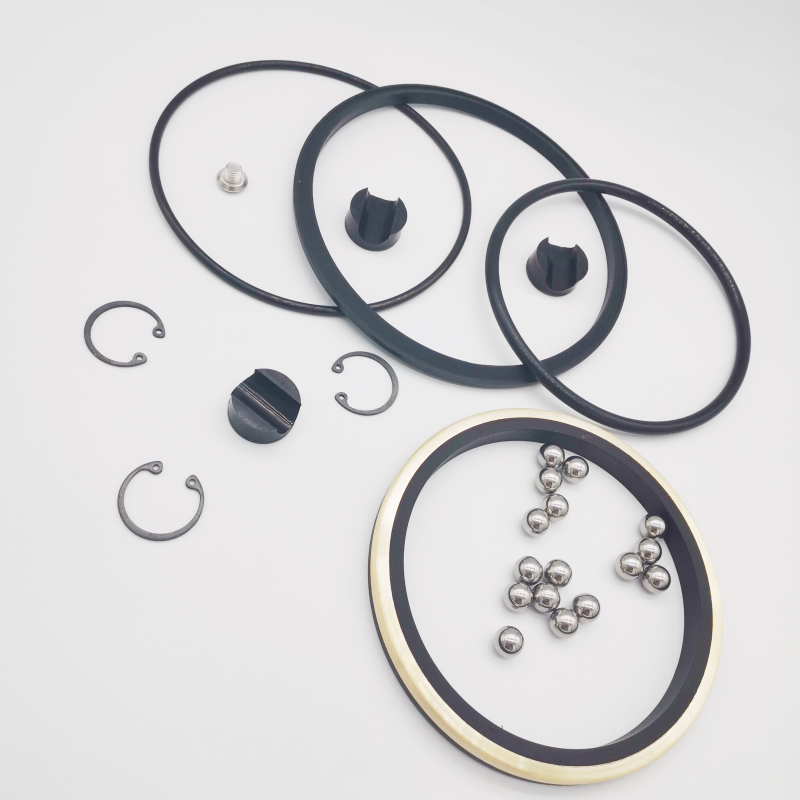

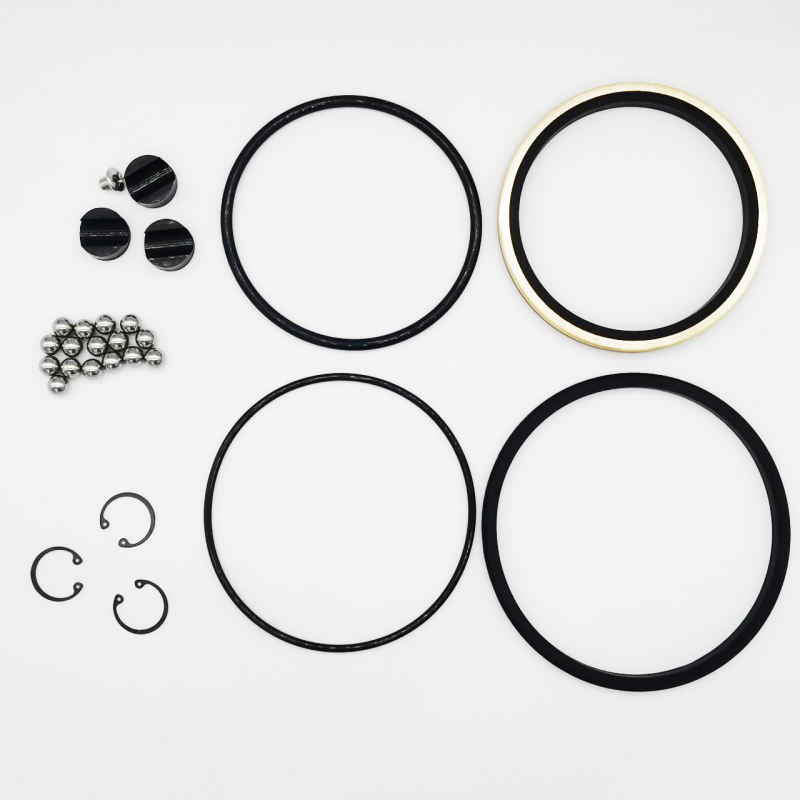

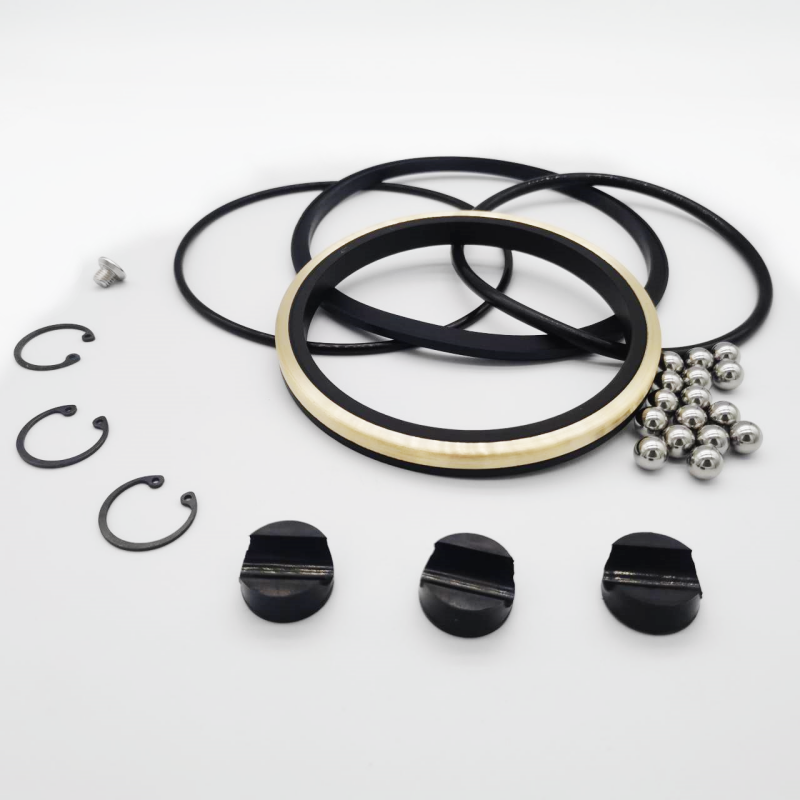

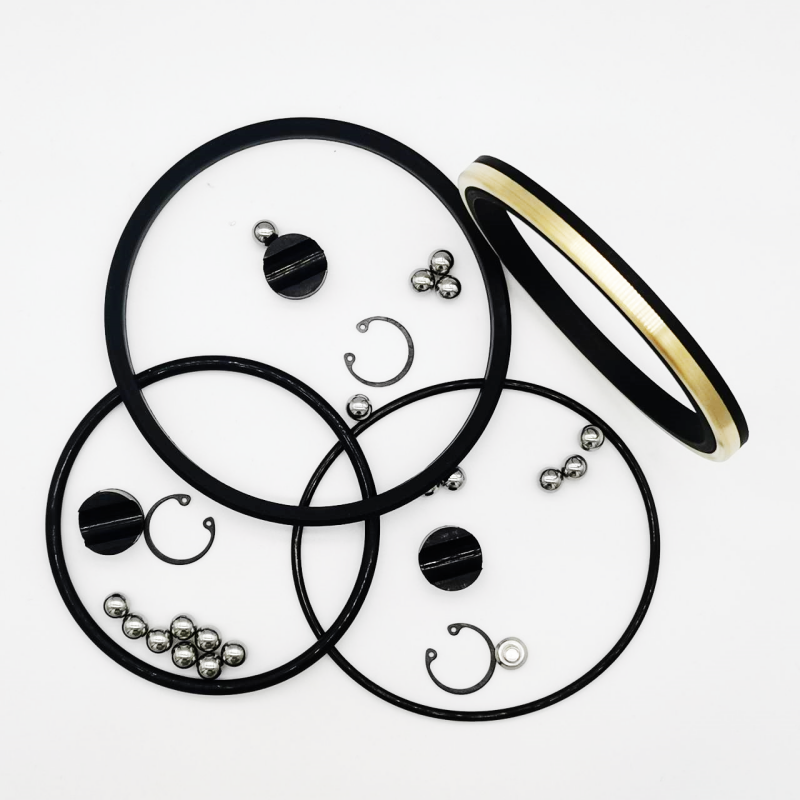

3. Kit Contents: 10K Overhaul Package

Restoring a 10K joint requires precision components. Our kit includes:

1. 10K Profile Packing:

   • Design: Specialized lip seal profile optimized for 10,000 PSI service.

   • Material: 90 Durometer NBR (Standard) or Viton® (Chemical).

2. Anti-Extrusion Backup Ring:

   • Material: Zinc-Plated Steel.

   • Function: Bridges the gap between the male/female races. Note: 10K backup rings often have different dimensions than 15K rings. Ours are machined specifically for the 10K Flowvalve pocket.

3. Chrome Steel Ball Bearings:

   • Qty: Complete set for all races.

   • Spec: High-load hardened steel to prevent race brinelling.

4. Dust Seals:

   • Protects the ball race from cement dust and sand.

5. Grease Fitting:

   • Standard Zerk for maintenance.

4. Material Options: Service Classifications

Option A: Standard Service (NBR)

• Best For: Cementing Operations, Water Transfer, Mud Circulation.

• Performance: Excellent resistance to abrasion from cement slurries and sand.

• Temp: -20°F to +250°F.

Option B: Acid / Chemical Service (Viton®)

• Best For: Acidizing, Industrial Cleaning, Hot Fluids.

• Performance: Chemical inertness to HCl and solvents.

• Temp: -15°F to +400°F.

5. Technical Focus: Why 10K Specific?

Many operators mistakenly try to force 15K seals into 10K joints (or vice versa).

• The Geometry Difference: Flowvalve 10K swivels often utilize a different “stack height” for the sealing assembly compared to their 15K counterparts.

• The Royal Way Guarantee: We verify our molds against original Flowvalve 10K housings. This ensures that when you tighten the swivel, the packing is compressed to the exact design spec—not too loose (leak), and not too tight (seized joint).

6. Operational Best Practices

• Cement Residue: 10K swivels are the workhorses of cementing. Before rebuilding, thoroughly chip out and clean any dried cement from the ball races. Old cement acts like gravel, destroying new bearings instantly.

• Grease Purge: After rebuilding, pump grease until clean grease flows from the relief. This ensures no water or cement slurry remains in the race voids.

• Ball Plug Torque: 10K lines often vibrate heavily. Ensure ball plugs are torqued and potentially staked/punched to prevent backing out.

7. Ordering Information

(Disclaimer: Forum™, FET™, and Flowvalve™ are trademarks of Forum Energy Technologies. Royal Way is an independent manufacturer of compatible aftermarket parts.)
