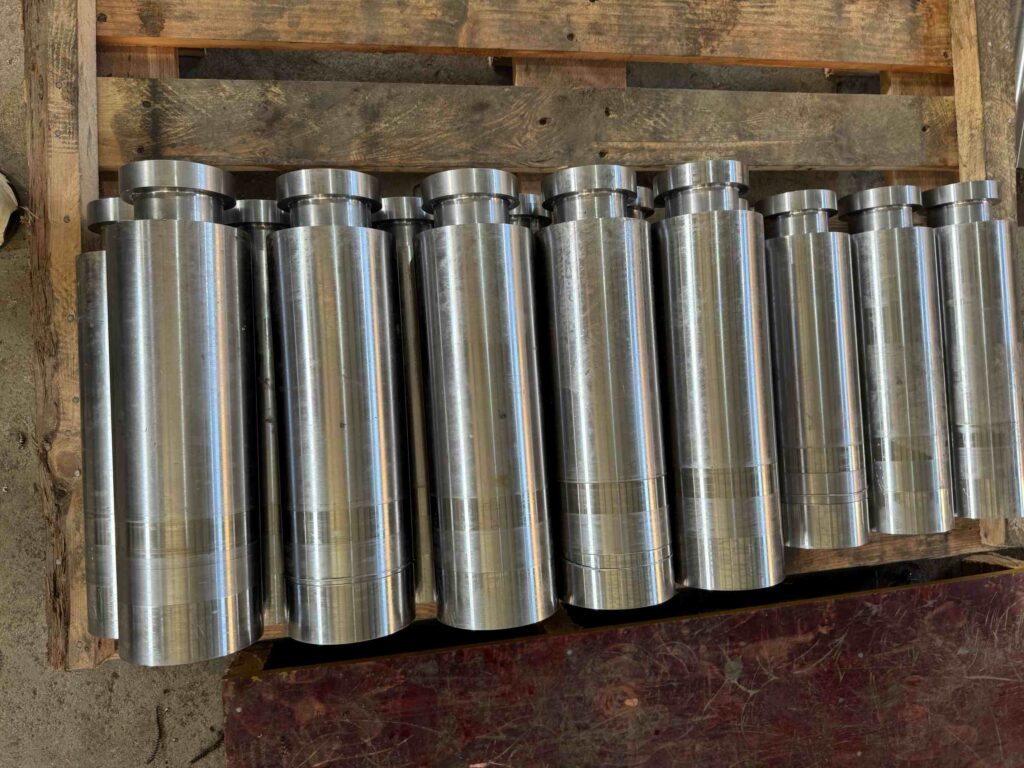

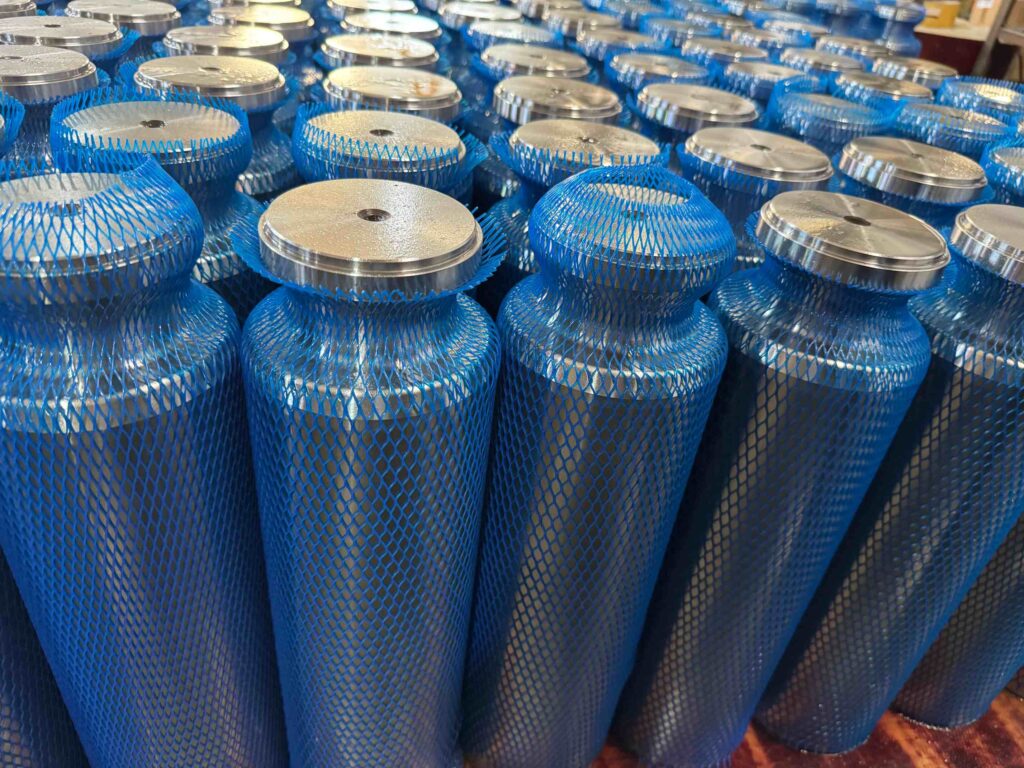

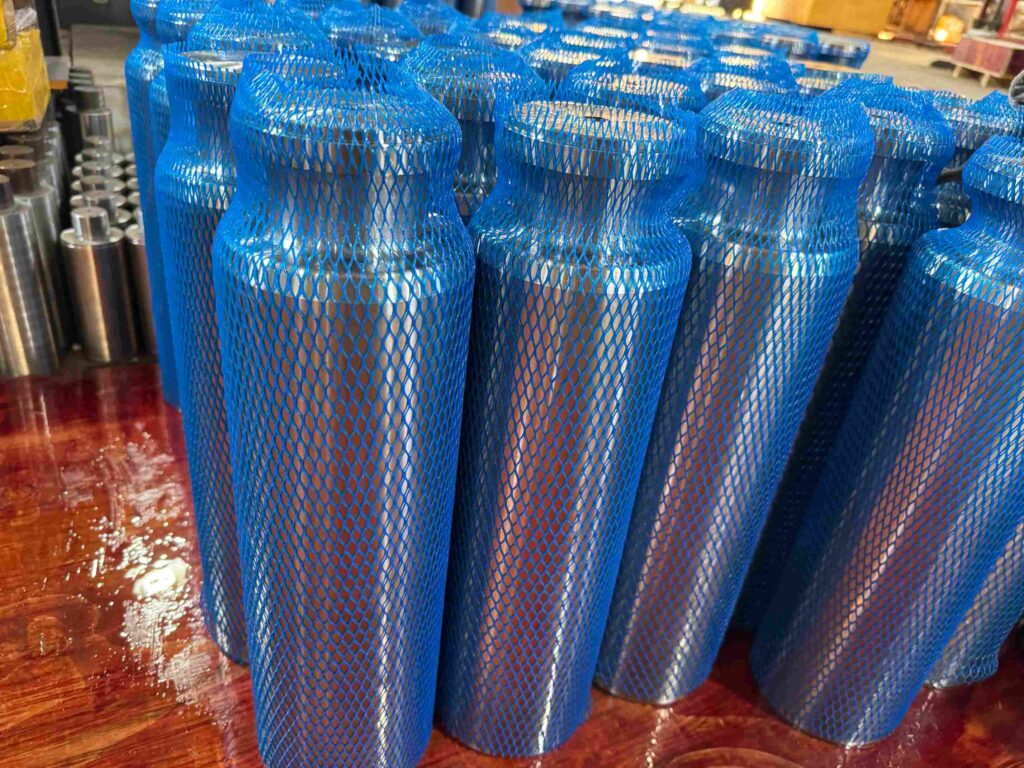

4.0″ – 5.0″ Replacement Plungers for Frac Pumps | Flame Sprayed Ni-Cr-B-Si Coating

1. Executive Summary: High-Performance Aftermarket Solutions

For well service fleets operating in abrasive environments, OEM lead times and pricing can be prohibitive. Our Flame Sprayed Ni-Cr-B-Si Replacement Plungers offer a premium, cost-effective alternative that meets or exceeds OEM specifications.

Available in standard 4.0″, 4.5″, and 5.0″ sizes, these plungers feature a heavy-duty hard-facing applied via the Spray & Fuse process. We utilize a specific Nickel-Chromium-Boron-Silicon (Ni-Cr-B-Si) alloy chemistry—industry-renowned for its self-fluxing properties—to create a coating that is virtually non-porous (dense), extremely hard (60 HRC), and metallurgically bonded to the steel core. This is the ideal replacement solution for high-pressure Quintuplex and Triplex pumps.

2. Material Science: The Ni-Cr-B-Si Advantage

Why do we specify Ni-Cr-B-Si (Nickel-Based Self-Fluxing Alloy)? Every element plays a critical role in surviving the frac pad:

• Nickel (Ni) Matrix: Provides the tough, ductile foundation that resists corrosion from H2S and Hydrochloric Acid (HCl) used in stimulation.

• Chromium (Cr): Enhances oxidation resistance and contributes to carbide formation for wear resistance.

• Boron (B) & Silicon (Si): These are the “Fluxing Agents.”

  • During the fusing process, Boron and Silicon lower the melting point of the alloy and act as deoxidizers. They scour the surface of oxides, allowing the coating to wet-out perfectly on the steel core.

  • They also precipitate hard borides and silicides, boosting the surface hardness to 60 HRC.

3. Manufacturing Process: Thermal Spray & Fuse

We do not use “Cold Spray” or simple “Metalizing.” We use a high-temperature fusion process to ensure zero delamination.

1. Flame Spraying: The Ni-Cr-B-Si powder is injected into an oxy-fuel flame and projected onto the rotating plunger core.

2. Fusing (The Critical Step): The coated plunger is heated to the alloy’s solidus temperature (~1,900°F).

   • The Boron/Silicon flux activates, creating a liquid phase sintering effect.

   • The porous sprayed structure consolidates into a 100% dense, pore-free layer.

   • A Metallurgical Diffusion Bond is formed with the substrate, ensuring the coating will never peel off, even under 20,000 PSI pulsation.

4. Technical Specifications

5. Compatibility & Sizing

Our replacement plungers are engineered to fit the fluid ends of the industry’s most common high-horsepower pumps:

• 4.00″ Plungers:

  • Compatible with: SPM® QWS 2500, FMC® 2400, GD 2500.

  • Max Pressure Application: Deep well, high-pressure fracturing.

• 4.50″ Plungers:

  • Compatible with: SPM® TWS 2250 / QWS 2700, Gardner Denver® 3000.

  • Standard Application: General purpose frac.

• 5.00″ Plungers:

  • Compatible with: SPM® QWS 2500 XL, GD 3000.

  • High Rate Application: High flow rate, lower pressure (Zipper Fracs).

6. Performance Benefits

• Acid Resistance: The Ni-Cr matrix is far superior to standard carbon steel or iron-based coatings when pumping acid blends.

• Abrasion Resistance: The hard Boride and Carbide phases within the microstructure act as a barrier against silica sand and ceramic proppants.

• Packing Friendliness: The dense, non-porous nature of Fused Ni-Cr-B-Si allows us to grind it to a smoother finish than standard spray coatings. A smoother plunger means less friction heat and 20-30% longer Packing Life.

7. Maintenance & Interchangeability

These plungers are direct “Drop-In” replacements.

• No Modifications Required: Fits standard pony rods and packing assemblies.

• Packing Compatibility: Works excellently with Gold (Kevlar), Silver, and General Service packing.

• Regrind Potential: The thick fused coating (typically 0.040″ – 0.060″) allows for future regrinding to undersize specs, maximizing your investment.
