Product: 3″ Wide Style Swivel Joint Seal Kit (Wide Raceway) | Heavy-Duty Repair

1. Executive Summary: Engineered for Heavy Loads & Erosion

In abrasive heavy-duty fracking, standard swivel joints sometimes wear out too fast. The 3-Inch “Wide Style” Swivel Joint was developed to solve this, featuring thicker walls and wider ball races to handle extreme bending moments and sand erosion.

Royal Way 3″ Wide Style Repair Kits are exclusively engineered for these heavy-wall swivels. We don’t just repackage standard seals; our kits are verified to fit the specific Wide Raceway geometry, providing the robust sealing and load-bearing capacity needed to extend the life of your premium iron assets. Restoring your Wide Style joints with the correct kit ensures you maintain the safety factor these heavy tools were designed for.

2. Compatibility & Identification: Is your Swivel “Wide”?

⚠️ CRITICAL ID CHECK: This kit is NOT for standard “Longsweep” or “Short Radius” swivels.

• Target Equipment: 3″ Wide Series Swivel Joints.

• Visual ID: Wide Style swivels typically have a physically bulkier body and thicker wall sections compared to standard Code Red iron.

• The “Wide Raceway” Difference: The ball races are machined to accept a specific load distribution. Using a standard kit may result in improper bearing spacing or seal extrusion.

• Pressure Rating: Designed for 15,000 PSI (Code Red) service.

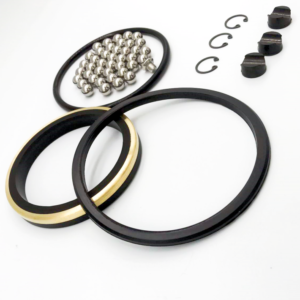

3. Kit Contents: Heavy-Duty Overhaul

1. Wide-Series Primary Packing:

   • Profile: Deep-engagement lip seal designed for the wide seal pocket.

   • Material: 90 Durometer NBR (Standard) or HNBR (Sour).

2. Anti-Extrusion Backup Ring:

   • Material: Hardened Steel.

   • Function: Specifically dimensioned to bridge the gap in Wide Style unions, preventing seal blowout under high bending loads.

3. Precision Ball Bearings:

   • Qty: Complete set for all races.

   • Spec: High-load chrome steel balls. Note: Wide style joints often require a specific ball count or size; our kit includes the exact match.

4. Dust Seals:

   • Heavy-duty external seals to protect the wider race area from sand ingress.

4. Material Options: Service Classifications

Option A: Standard Service (NBR)

• Best For: High-rate Sand Fracking, Cementing.

• Why? The “Wide” swivel is often chosen for its erosion allowance. Our NBR compound is formulated with maximum abrasion resistance to match the longevity of the heavy steel body.

• Temp: -20°F to +250°F.

Option B: Sour Gas / High-Temp (HNBR or Viton®)

• Best For: Sour Gas (H2S), Acidizing, Flowback.

• Why? For chemical resistance in severe environments.

• Temp: -15°F to +400°F (Viton®).

5. Technical Focus: Bending Moment & Load

The primary reason operators choose “Wide Style” iron is for its ability to withstand Bending Moments (side loads) without seizing or leaking.

• The Royal Way Solution: Our kit includes high-tolerance ball bearings and a stiff backup ring. This combination ensures that even when the flowline is under extreme tension (pulling apart), the swivel rotates smoothly and the seal gap remains closed.

6. Operational Best Practices

• Measure Wear: Wide Style joints are often used until they are extremely worn. Measure the Wall Thickness of the elbow before rebuilding. If erosion has thinned the wall below API safety limits, a new seal kit will not make it safe—discard the joint.

• Grease Volume: Wide raceways hold more grease than standard joints. Ensure you pump enough grease to purge all old lubricant and fully coat the races.

7. Why Choose Royal Way?

• Hard-to-Find Parts: “Wide Style” kits are often non-stock items for general suppliers. We keep them on the shelf for specialized fleets.

• Precision Fit: We guarantee the backup ring fits the Wide Style bore perfectly, preventing the dreaded “nibbling” of the rubber seal.

8. Ordering Information

(Disclaimer: Royal Way is an independent manufacturer of compatible aftermarket parts.)
