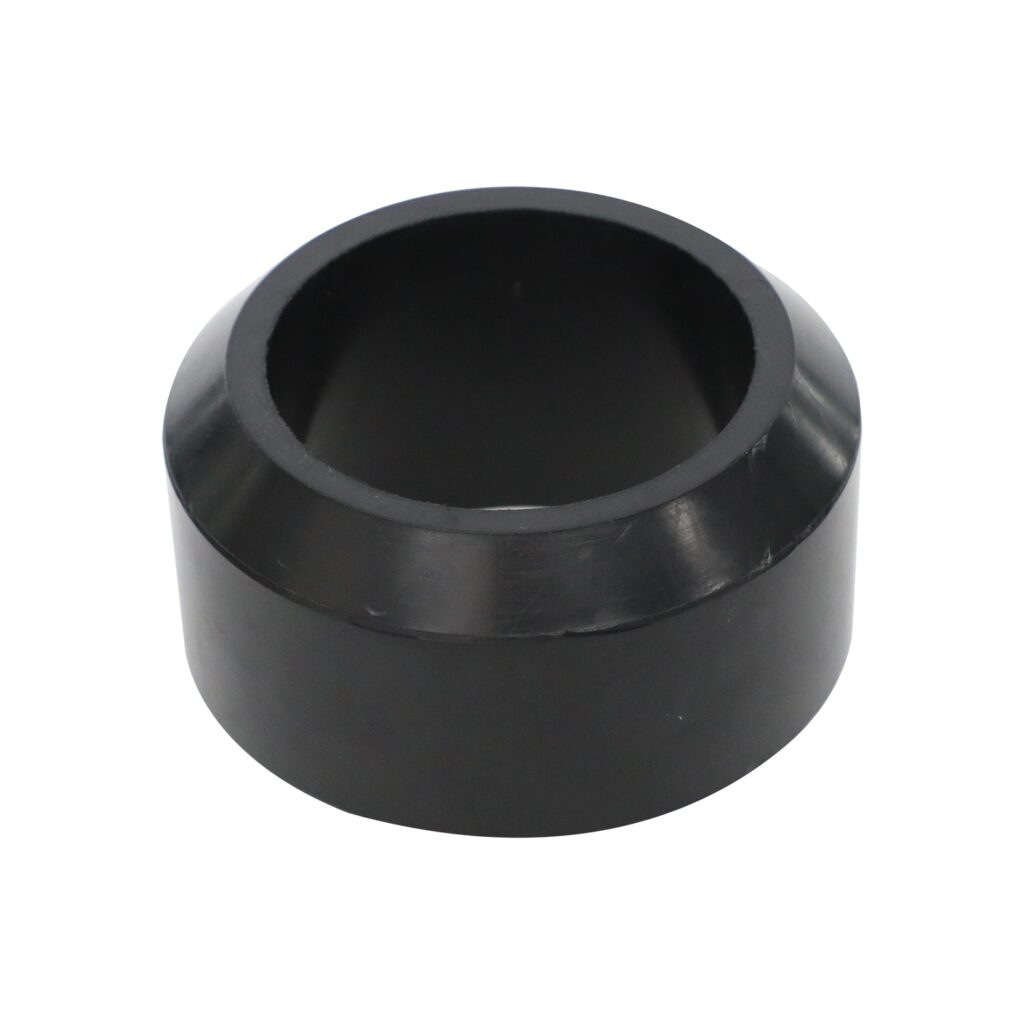

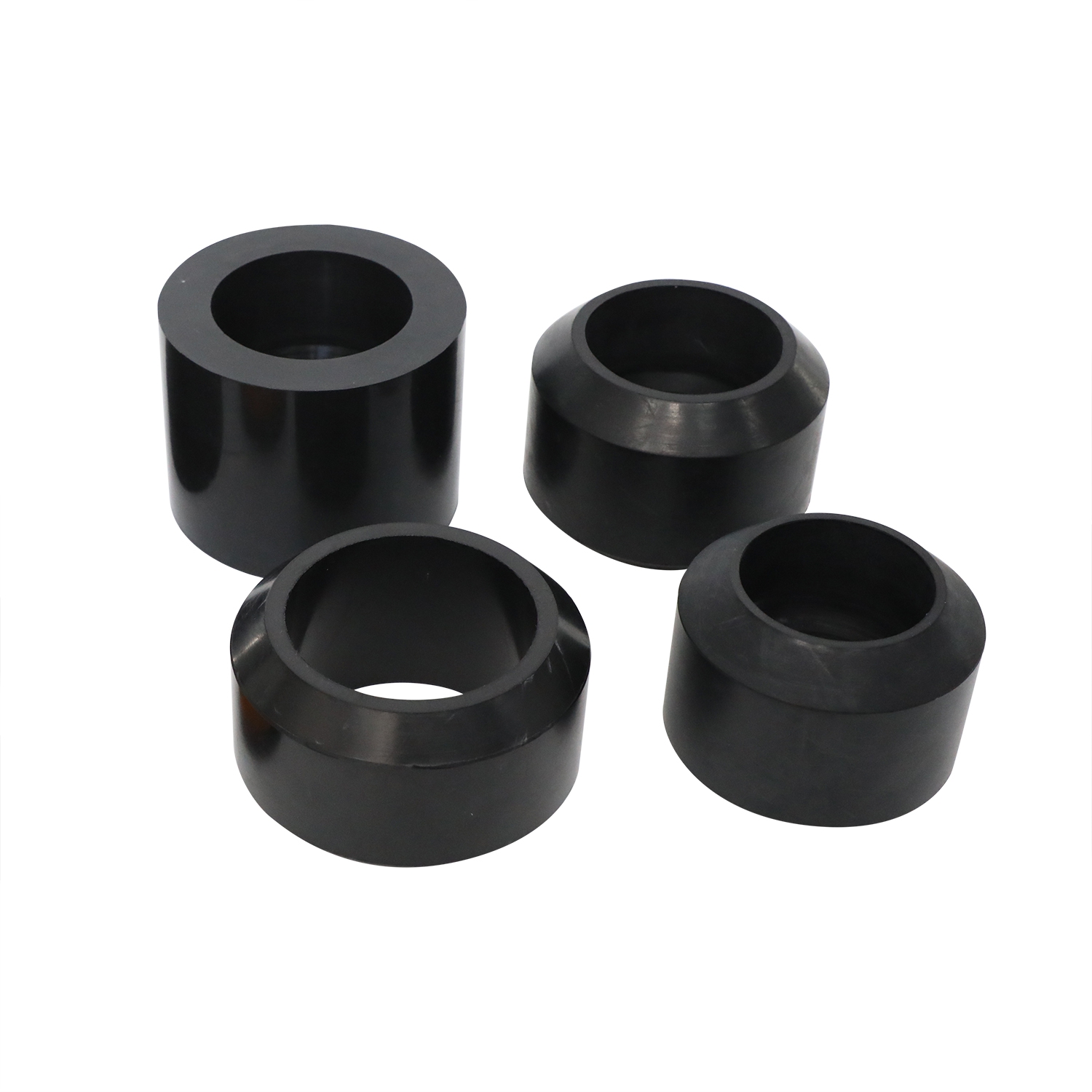

3-Piece Packer Element Set for 4.5″ Casing | 90-70-90 NBR Standard Service

In the downhole environment, the integrity of your zonal isolation depends entirely on the performance of the elastomer. Whether setting a retrievable packer for a frac job or a bridge plug for abandonment, the Packer Element is the single point of failure.

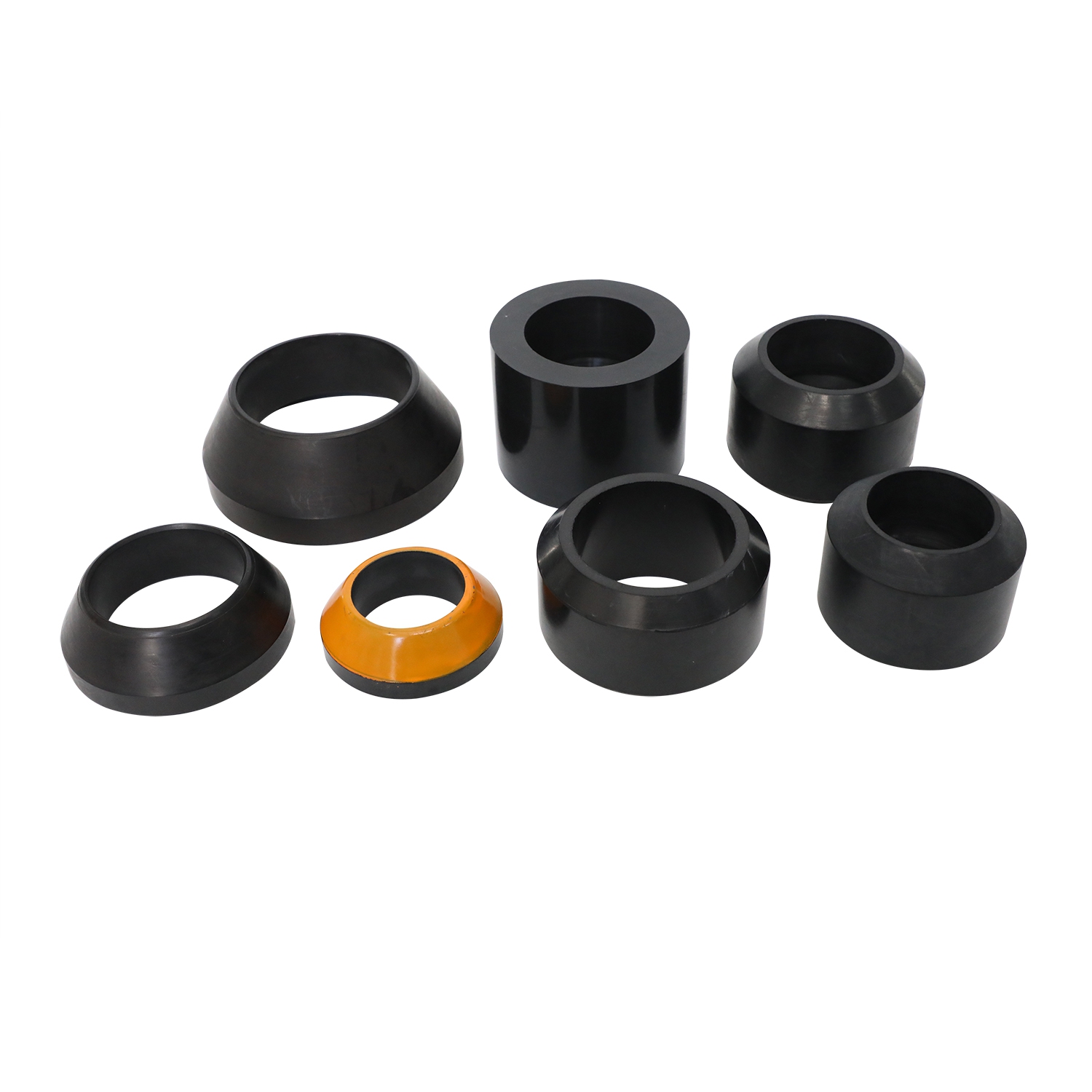

At Royal Way, we manufacture high-performance Packer Elements engineered to withstand the most hostile wellbore conditions. From standard 3-piece sets to complex mesh-backed unitized elements, our seals are formulated to provide a positive, leak-proof barrier against extreme differential pressures (up to 10,000+ PSI) and temperatures ranging from -20°F to 450°F.

Technical Specifications

  • Material Grade: Standard NBR (Nitrile) -20°F to +250°F
  • High-Temp HNBR -20°F to +325°F
  • FKM (Viton®) -15°F to +400°F
  • Aflas® (TFE/P) +32°F to +450°F
  • EPDM -40°F to +350°F Geothermal (No Oil)

Typical Applications

  • Retrievable Production Packers: Long-term zonal isolation.
  • Service Packers: Squeeze cementing, acidizing, and fracturing tools.
  • Bridge Plugs (RBP / CIBP): Temporary or permanent well abandonment.
  • Liner Hangers: Sealing the liner top.
  • Test Tools: DST (Drill Stem Test) tools requiring multiple set/unset cycles.

Product: 3-Piece Packer Element Set for 4.5″ Casing | 90-70-90 NBR Standard Service

1. Executive Summary: The Proven “Hard-Soft-Hard” Sealing System

Achieving reliable zonal isolation in retrievable packers requires a delicate balance: the seal must be soft enough to conform to the casing wall, yet hard enough to resist extrusion under high differential pressure.

Our 3-Piece Packer Element Set for 4.5″ Casing utilizes the industry-standard 90-70-90 Durometer configuration. This engineered system combines a pliable 70-durometer center element for positive sealing with rigid 90-durometer end elements for anti-extrusion support. Manufactured from high-quality Standard Service Nitrile (NBR), this set is the cost-effective workhorse for routine well completions, testing, and stimulation operations up to 250°F.

2. System Mechanics: How It Works

This set is not just three rubber rings; it is a staged sealing system designed to function sequentially under compressive load:

  • The Center (Spacer) Element – 70 Shore A:

    • Function: Primary Seal.

    • Action: Upon setting, this softer center element (referencing 4.5 HD SPACER) compresses first. It flows radially to fill the annulus, conforming tightly to the ID of the 4.5″ casing, even in slightly pitted or worn pipe.

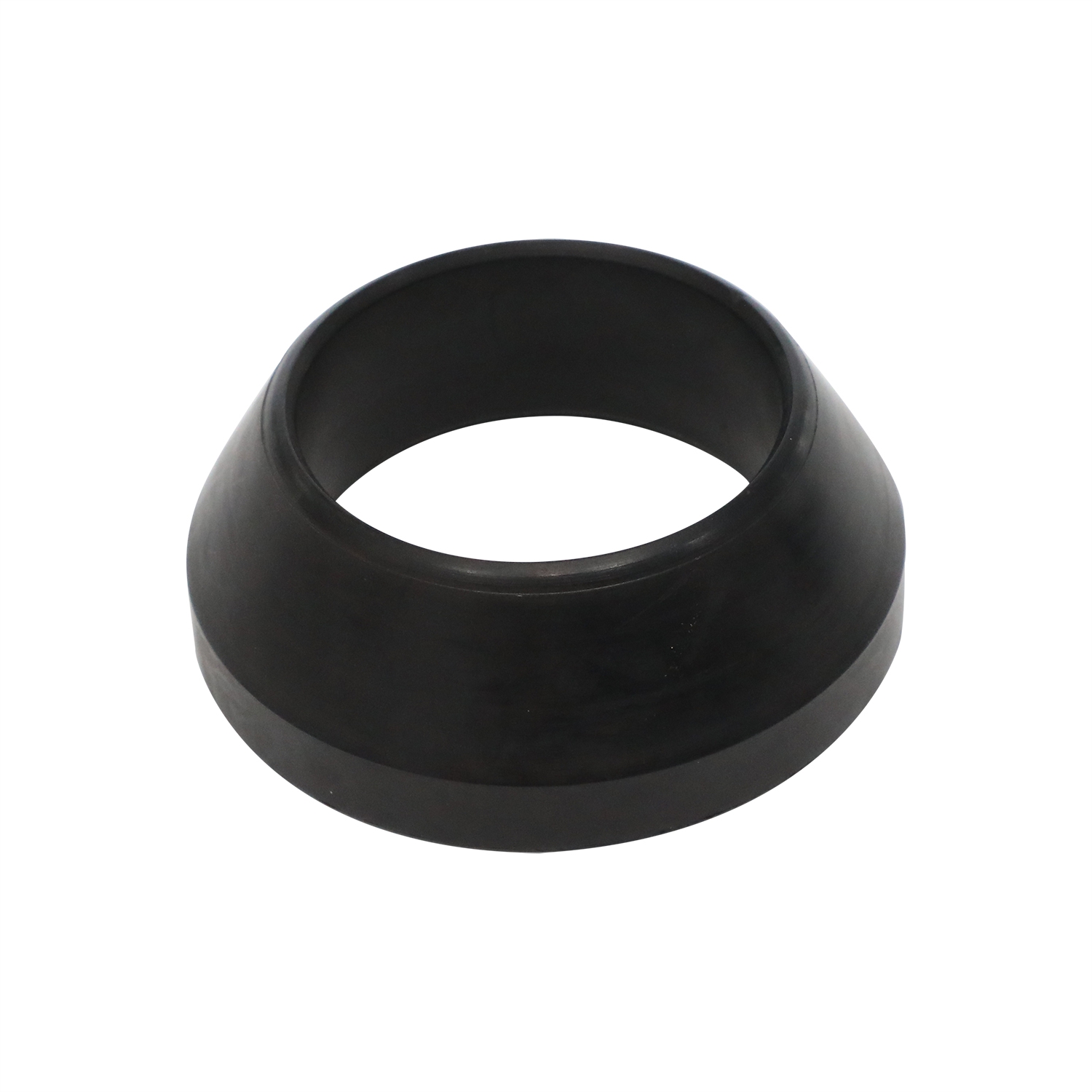

  • The End Elements – 90 Shore A:

    • Function: Anti-Extrusion Barrier.

    • Action: As pressure builds, the harder end elements (referencing 4.5 HD END) expand to bridge the gap between the tool OD and the casing ID. They form a rigid wall that prevents the softer center rubber from flowing (extruding) out of the seal area, preventing catastrophic seal failure.

3. Detailed Specifications

Technical Parameter Specification Notes
Casing Size 4.5 Inch (114.3mm) Fits standard weight casing
System Configuration 3-Piece Set 1x Center, 2x Ends
Durometer Sequence 90 – 70 – 90 Shore A Hard – Soft – Hard
Material Nitrile (NBR / Buna-N) Standard Service
Temperature Range -20°F to +250°F (-29°C to +121°C) Continuous
Fluid Compatibility Crude Oil, Water, Drilling Mud Not for H2S or Acid
Set Part Number RK-PKR-45-3PC-NBR (Example P/N)

4. Operational Benefits

Superior Retrievability (The “Memory” Factor)

For retrievable packers, getting the tool OUT is just as important as getting it set.

  • The Challenge: Inferior rubber takes a permanent “set” (stays deformed) after release, causing the tool to swab or get stuck during retrieval.

  • The Royal Way Solution: We utilize a High-Modulus NBR compound with excellent rebound resilience. When the packer is unset, the elements relax back close to their original OD, ensuring smooth retrieval through the tubing string.

Optimized Geometry

  • Chamfered Ends: As seen in the blueprints, the 30°/45° chamfers on the end elements allow for smooth expansion mechanics and prevent the rubber from “pinching” or folding incorrectly during the setting sequence.

5. Typical Applications

  • Retrievable Packers: Such as AS1-X, Model R, and mechanically set packers.

  • Bridge Plugs: For temporary well abandonment or zonal isolation.

  • Service Tools: For squeeze cementing (where cement abrasion resistance is key) and well testing.

6. Why Choose Royal Way?

  • Precision Molding: We strictly adhere to the tolerances (±0.005″ T.I.R.) specified in engineering drawings. A loose element can cause a preset; a tight element can split. Ours fit perfectly.

  • Fresh Inventory: Rubber ages. We track cure dates to ensure you receive fresh, lively elastomer sets, not old stock that has hardened on the shelf.

7. Ordering Information

  • Sold As: Complete Sets (1 Center + 2 Ends).

  • Packaging: UV-resistant sealed bags to maintain shelf life.
