2″ SMI Style Oversized Swivel Joint Kit | Repair Seals

Engineered for the constant motion and extreme pressures of articulating flowlines, Royal Way Swivel Joint Seal Kits provide the critical components needed to rebuild and maintain your treating iron. Our kits are designed to restore smooth rotation and ensure a leak-free seal in Style 10, 50, and 80 swivel joints, preventing costly downtime during fracturing, cementing, and well service operations.

Featuring high-performance elastomers (NBR, HNBR, FKM), anti-extrusion backup rings, and precision ball bearings, each kit is a complete MRO (Maintenance, Repair, and Operations) solution. Restore your iron to OEM standards with Royal Way.

Technical Specifications

  • Compatibility: Designed for Chiksan®, SPM®, FMC®, and Anson® style longsweep swivel joints.
  • Swivel Styles Supported: Fits all configurations including Style 10, 20, 30, 40, 50, 60, 80, and 100.
  • Size Range: 1", 1-1/2", 2", 3", 4" (Nominal Pipe Size).
  • Pressure Rating: 6,000 PSI to 22,500 PSI
  • Material: Nitrile (NBR), HNBR, FKM (Viton®)

Applications & Industry Usage

  • Hydraulic Fracturing (Fracking)
  • Cementing Operations
  • Acidizing & Well Stimulation
  • Coiled Tubing & Snubbing
  • Flowback & Well Testing
  • Drilling Mud Systems

1. Executive Summary: Precision Repair for SMI Iron

Not all 2-inch swivel joints are created equal. The SMI (Southern Manufacturing) Style swivel joint features a unique “Oversized” ball race and packing bore design, offering enhanced load-bearing capabilities. Standard FMC-style seals will NOT seal in an SMI housing.

Our 2″ SMI Style Oversized Swivel Joint Kits are engineered specifically for this distinct geometry. Manufactured to exact aftermarket tolerances, these kits provide the heavy-duty packing, anti-extrusion rings, and ball bearings required to recertify your SMI style flowline equipment to 15,000 PSI standards.

2. Compatibility Alert: Is your Iron “Standard” or “SMI”?

⚠️ CRITICAL FITMENT WARNING:

This kit is designed ONLY for SMI Style “Oversized” Swivel Joints.

  • How to tell: The packing seal in this kit has a larger Outer Diameter (OD) and cross-section than a standard Weco®/FMC® style seal.

  • If you have Standard Iron: Please see our 2″ Standard Swivel Kit (Fig 1502 Style).

  • The Risk: Installing a standard seal in an SMI swivel will result in an immediate catastrophic leak. Installing an SMI seal in a standard swivel is physically impossible (it won’t fit).

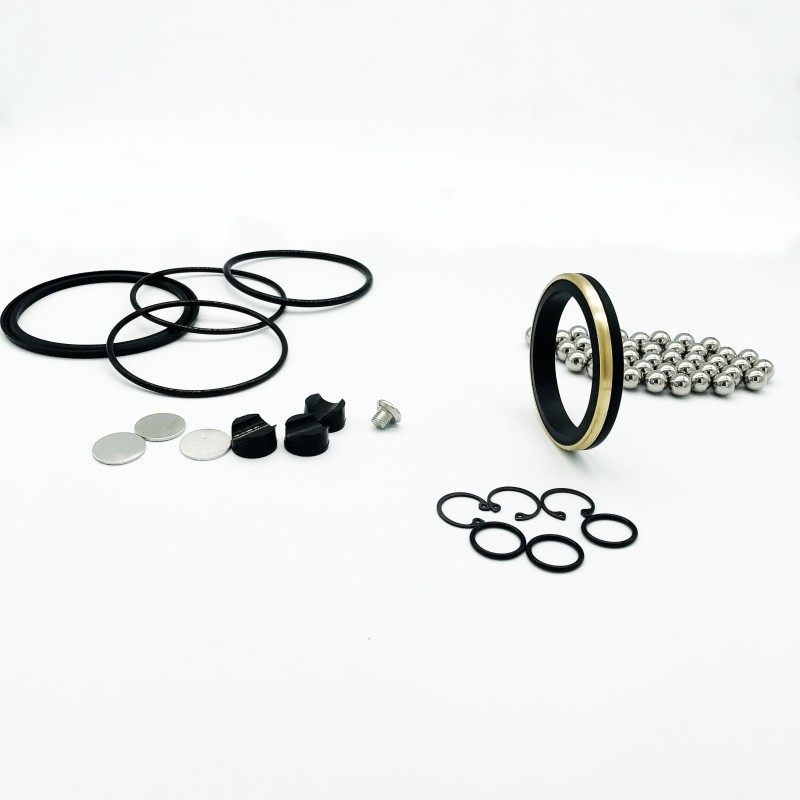

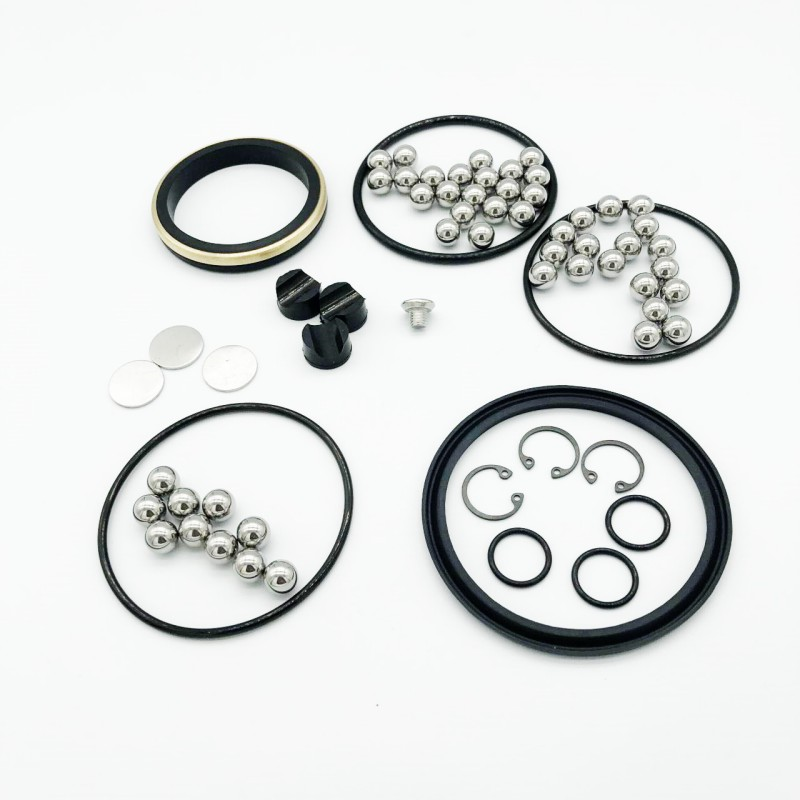

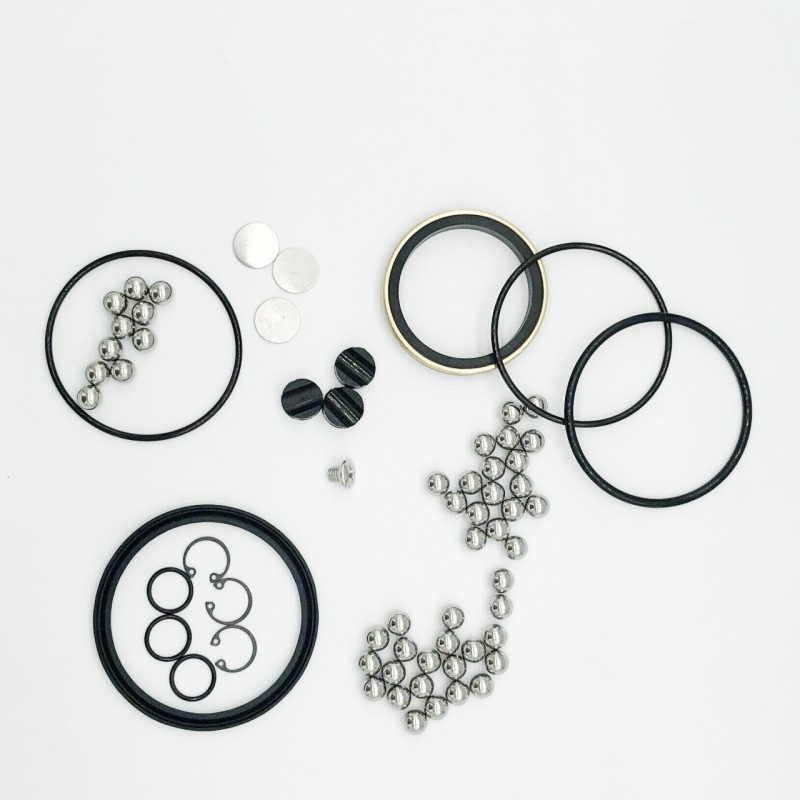

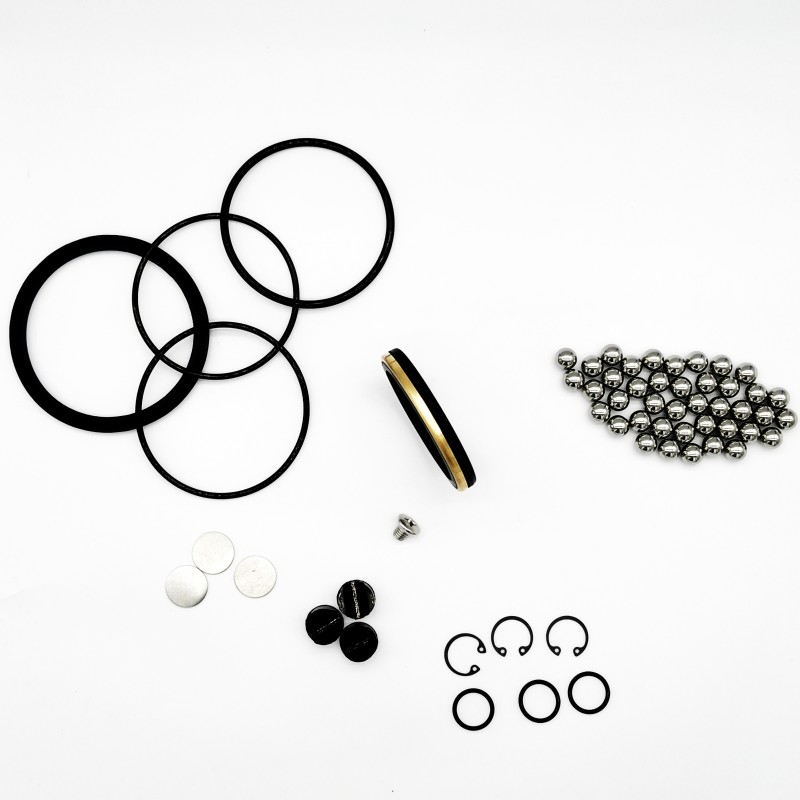

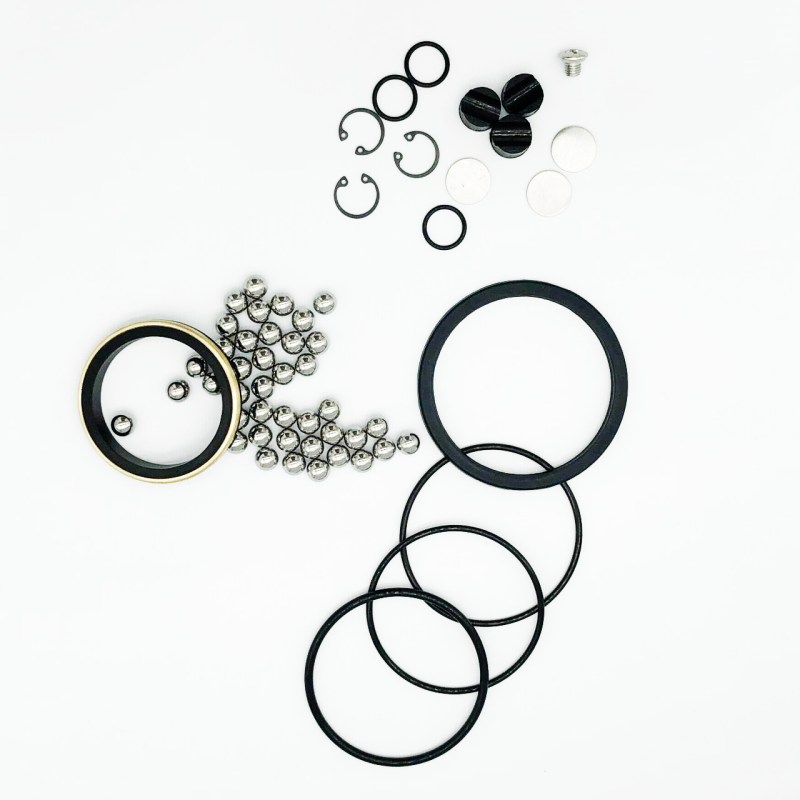

3. Kit Contents: Complete Overhaul Components

Restoring an SMI swivel requires more than just a rubber ring. Our kit is a comprehensive MRO solution:

  1. Oversized Primary Packing:

    • Profile: Specialized “SMI Profile” with a deeper sealing lip.

    • Material: 90 Durometer NBR (Standard) or Viton® (Chemical).

  2. Anti-Extrusion Backup Ring:

    • Material: Brass or Stainless Steel.

    • Function: Specifically machined to match the wider SMI packing groove, preventing the seal from blowing out under pressure.

  3. Chrome Steel Ball Bearings:

    • Qty: Full set included to replace worn or pitted balls.

    • Spec: Hardened bearing grade steel for smooth rotation under load.

  4. Dust Seals / Retainer Rings:

    • Prevents contamination of the ball race.

  5. Lubrication:

    • Includes replacement Grease Zerk.

4. Material Options: Matched to Your Fluid

Option A: Standard Service (NBR / Buna-N)

  • Best For: Hydraulic Fracturing, Cementing, Water Transfer, Drilling Mud.

  • Performance: Excellent resistance to abrasion from proppants.

  • Temp: -20°F to +250°F.

Option B: Acid / Chemical Service (Viton® / FKM)

  • Best For: Acidizing Units (HCl), Hot Oil, Mixed Chemical Fleets.

  • Performance: Superior resistance to chemical attack and high temperatures.

  • Temp: -15°F to +400°F.

5. Technical Specifications

Technical Parameter Specification
Nominal Size 2 Inch
Style SMI Style (Oversized)
Pressure Rating 15,000 PSI (CWP)
Packing Type Pressure Energized Lip Seal
Ball Race Design Dual or Triple Race (Depends on joint)
Compatible Brands SMI / Southern Manufacturing
Backup Ring Metal Anti-Extrusion Included

6. Why Choose Royal Way for SMI Parts?

  • Niche Expertise: Most suppliers only stock the “Standard” kits. We understand the specific needs of SMI iron owners and keep these specialized oversized kits in stock.

  • Precision Molding: Our seals are not generic; they are molded from tooling designed specifically for the SMI seal pocket dimensions.

  • Quality Assurance: Every batch is tested for hardness and dimensional accuracy to ensure a leak-free hydrostatic test.

7. Ordering Information

Part Number Description Size Material
RK-SMI-2-NBR Swivel Kit, SMI Oversized 2″ NBR
RK-SMI-2-FKM Swivel Kit, SMI Oversized 2″ Viton®

(Disclaimer: SMI® and Southern Manufacturing® are registered trademarks. Royal Way is an independent manufacturer of compatible aftermarket parts.)
